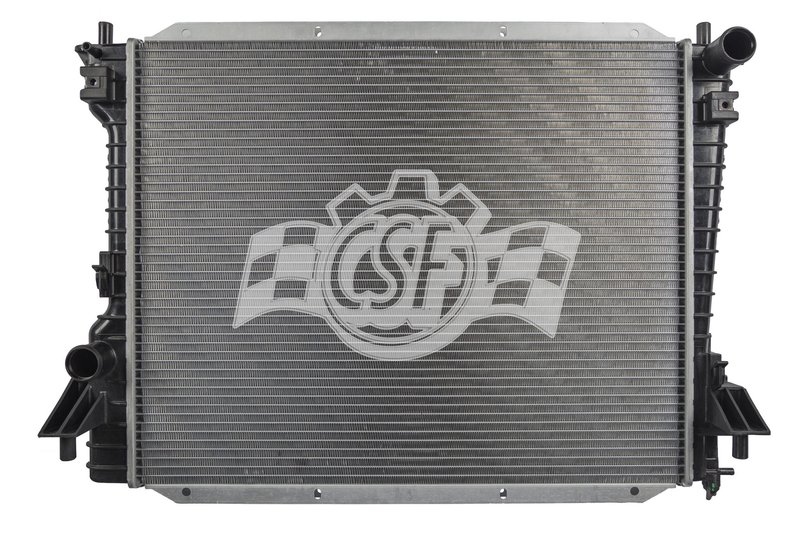

CSF 3422 Radiator
| Brand | CSF 3422 |
|---|---|
| Box Height (in) | 7 1/16 |
| Box Length (in) | 31 1/16 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 23 15/16 |
| Cap Included | No |
| Core Length | 24 1/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 19 5/8 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Right |
| Inlet Length (in) | 19 1/2 |
| Inlet Width (in) | 1 1/2 |
| Outlet Diameter | 1 1/2 Left |
| Outlet Length (in) | 19 1/2 |
| Outlet Width (in) | 1 1/2 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Ford · 16 vehicles |
OE-style design. Plastic tanks and an aluminum core mirror the original equipment layout.
Cross-flow construction. Promotes efficient coolant flow for consistent heat transfer.
Wind tunnel tested. Validated in lab conditions for cooling performance.
Cross-references Anchor 2789, APDI 8012789 and Remy 13205 for the same application. See all 7.
OE-Style Cooling for Ford Mustang
The CSF 3422 radiator is an OE-style replacement built with a plastic tank and aluminum core for the 2005-2014 Ford Mustang. It is designed for direct-fit cooling service on Mustang applications that use a cross-flow layout and 1 1/2-inch inlet and outlet connections.
CSF manufactures radiators to high-performance standards and validates cooling performance through lab testing. With decades of production experience and a broad OE replacement catalog, CSF 3422 is built for drivers looking for a factory-style radiator for Ford Mustang cooling system repair.
Key Features
- OE-style plastic tank and aluminum core construction
- Cross-flow radiator design
- 1-row core configuration
- Core thickness: 7/8 in.
- Core dimensions: 24 1/8 in. length x 19 5/8 in. width
- Inlet: 1 1/2 in. right side
- Outlet: 1 1/2 in. left side
- No radiator cap included
- Brand line: 1 Row Plastic Tank Aluminum Core
Detailed Description
CSF 3422 is a replacement radiator for Ford Mustang models that require an OE-style plastic tank and aluminum core design. The cross-flow layout, single-row core, and factory-style inlet and outlet placement support proper cooling system routing in 2005-2014 Mustang applications. This radiator is a direct-fit option for Mustang owners replacing a leaking, clogged, or damaged radiator while maintaining original-style packaging and connection points. This part cross-references Spectra Premium CU2789 for the same application.
What This Radiator Helps Address
- Coolant leaks from cracked or aging radiator tanks
- Restricted coolant flow from internal corrosion or sediment buildup
- Overheating caused by reduced heat transfer efficiency
- Damaged inlet or outlet necks
- Cooling system service on a Ford Mustang with OE-style radiator dimensions
Installation Notes and Tips
Verify inlet and outlet orientation before installation: inlet is on the right and outlet is on the left. Confirm the vehicle uses the listed OE-style cross-flow configuration and 1 1/2-inch hose connections. This radiator does not include a cap, so reuse or replace the cap separately as needed. Fits 2005-2010 Ford Mustang, N/A. Fits 2011-2014 Ford Mustang, N/A.
Quality Assurance
CSF states that its radiators are manufactured in ISO/TSO-certified facilities and are engineered and wind-tunnel tested for cooling performance validation. Part number 3422 is built to support factory-style fitment and cooling-system service on Ford Mustang applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Ford | Mustang | GT | 5.0L | V8 | N/A | OE Style Design; w/o Track Pack; 1 Row Plastic Tank Aluminum Core |
| 2013 | Ford | Mustang | GT | 5.0L | V8 | N/A | OE Style Design; w/o Track Pack; 1 Row Plastic Tank Aluminum Core |
| 2012 | Ford | Mustang | GT | 5.0L | V8 | N/A | OE Style Design; w/o Track Pack; 1 Row Plastic Tank Aluminum Core |
| 2011 | Ford | Mustang | GT | 5.0L | V8 | N/A | OE Style Design; w/o Track Pack; 1 Row Plastic Tank Aluminum Core |
| 2010 | Ford | Mustang | — | 4.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2010 | Ford | Mustang | — | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2009 | Ford | Mustang | — | 4.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2009 | Ford | Mustang | — | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Ford | Mustang | — | 4.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Ford | Mustang | — | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Ford | Mustang | — | 4.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Ford | Mustang | — | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2006 | Ford | Mustang | — | 4.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2006 | Ford | Mustang | — | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2005 | Ford | Mustang | — | 4.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2005 | Ford | Mustang | — | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
