OE Quality
60-Day Returns

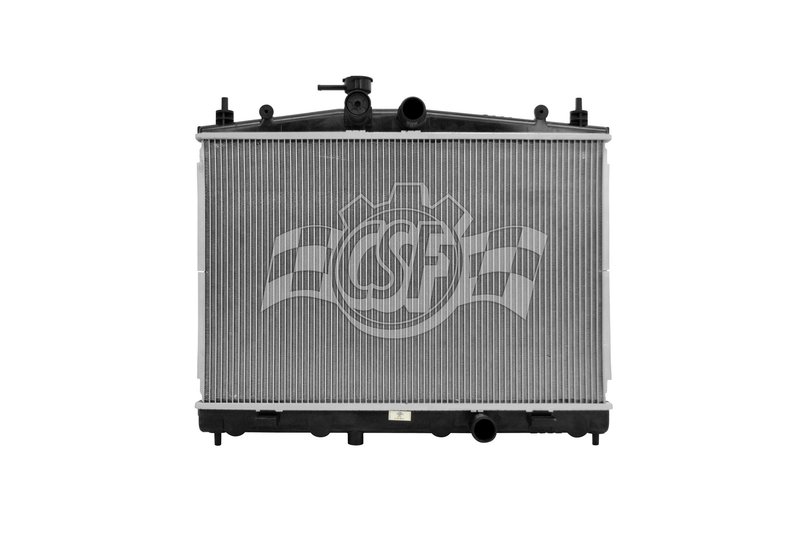

CSF 3432 Radiator
Overview of CSF 3432 Radiator for Nissan Cube
The CSF 3432 radiator is designed specifically for the Nissan Cube, providing reliable engine cooling with its durable construction. Featuring a 1 row plastic tank aluminum core, this radiator balances efficient heat dissipation with lightweight materials to maintain optimal engine temperature.
- Core thickness: 5/8 inch for effective heat transfer
- Core dimensions: 23 inches width by 14 15/16 inches length
- Aluminum core material for enhanced cooling performance
- Plastic tanks designed in OEM style for compatibility
- Down flow radiator type with 1 core row
- Inlet and outlet diameters both 1 3/8 inches, inlet centered, outlet on the right
- Cap not included; compatible with CSF cap number 4502
- Compact packaging dimensions: 25 9/16 inches length, 22 3/8 inches width, 5 11/16 inches height
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines lightweight plastic tanks with a robust aluminum core to deliver efficient cooling solutions. This design mirrors OEM specifications, ensuring direct fitment and reliable performance for vehicles like the Nissan Cube. The single core row configuration supports effective heat exchange while maintaining a compact profile.
Product Description and Specifications
The CSF 3432 radiator features a 5/8 inch thick aluminum core measuring 23 inches wide and nearly 15 inches long, optimized for the Nissan Cube's cooling system. The plastic tanks are molded to OEM style, providing a precise fit and durability. This radiator uses a down flow design with a single core row, facilitating consistent coolant flow and heat dissipation. Both the inlet and outlet have a diameter of 1 3/8 inches, with the inlet positioned at the center and the outlet on the right side, matching the Cube's factory setup. The radiator does not include a cap but is compatible with CSF cap number 4502.
Common Applications and Problem Solving
- Replacement for leaking or damaged Nissan Cube radiators
- Solves overheating issues caused by clogged or inefficient cores
- Restores proper coolant flow with OEM-style plastic tanks
- Addresses radiator core corrosion or physical damage
- Improves cooling system reliability in Nissan Cube vehicles
Installation Notes and Tips
When installing the CSF 3432 radiator, ensure compatibility with the Nissan Cube model year and engine configuration. The radiator’s OEM-style plastic tanks allow for straightforward replacement without modification. Use the recommended CSF cap number 4502 or an equivalent OEM cap to maintain system pressure. Inspect hoses and clamps during installation to prevent leaks. Properly bleed the cooling system after installation to avoid air pockets.
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM standards, using high-quality aluminum cores and durable plastic tanks. This radiator is free from hazardous materials and designed for long-term reliability. While specific warranty details are not provided here, CSF products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
| Brand | CSF |
| Part Number | 3432 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 25 9/16 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 22 3/8 |
| Cap Included | No |
| Core Length | 14 15/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 23 |
| Csf Cap Number | 4502 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Centre |
| Inlet Length (in) | 23 9/16 |
| Inlet Width (in) | 1 |
| Outlet Diameter | 1 3/8 Right |
| Outlet Length (in) | 23 9/16 |
| Outlet Width (in) | 1 1/2 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Nissan | Cube | 1.8L | L4 | N/A | OE Style Design; Use Small, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2013 | Nissan | Cube | 1.8L | L4 | N/A | OE Style Design; Use Small, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2012 | Nissan | Cube | 1.8L | L4 | N/A | OE Style Design; Use Small, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2011 | Nissan | Cube | 1.8L | L4 | N/A | OE Style Design; Use Small, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2010 | Nissan | Cube | 1.8L | L4 | N/A | OE Style Design; Use Small, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2009 | Nissan | Cube | 1.8L | L4 | N/A | OE Style Design; Use Small, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
