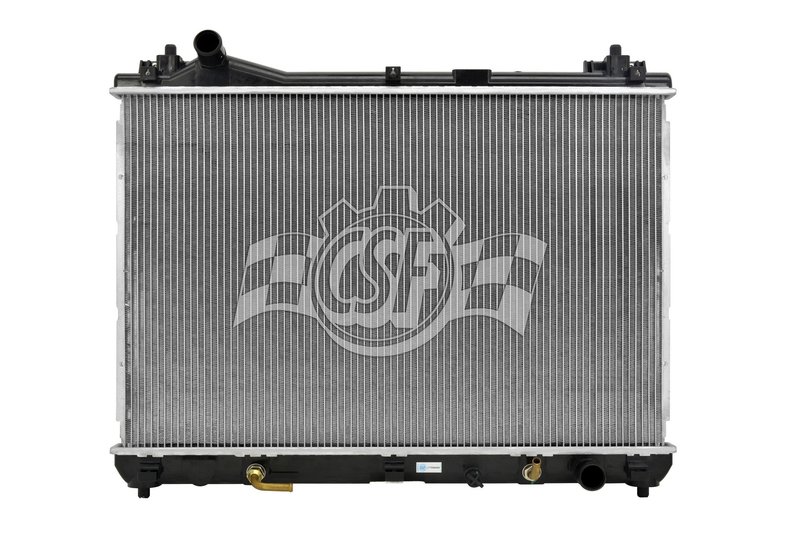

CSF 3443 Radiator

Overview of CSF 3443 Radiator for Suzuki Grand Vitara

The CSF 3443 radiator is designed specifically for the Suzuki Grand Vitara, providing reliable engine cooling with its durable construction. Featuring a 1 Row Plastic Tank Aluminum Core, this radiator balances efficient heat dissipation with corrosion resistance.

• Core Thickness: 5/8 inch
• Core Width: 27 inches
• Core Length: 17 11/16 inches
• Aluminum core with plastic tanks
• Down flow design for effective coolant circulation
• Inlet and outlet diameter: 1 3/8 inches (left inlet, right outlet)
• Radiator core row quantity: 1
• Cap not included

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to provide a balance of lightweight design and thermal efficiency. This product line is engineered to meet the cooling demands of vehicles like the Suzuki Grand Vitara, ensuring consistent performance under normal driving conditions.

Technical Description of CSF Part Number 3443

This radiator features a 5/8 inch thick aluminum core measuring 27 inches wide and 17 11/16 inches long, optimized for the Suzuki Grand Vitara's cooling system. The down flow design facilitates efficient coolant movement from the top to the bottom of the radiator. Both inlet and outlet ports have a diameter of 1 3/8 inches, positioned on the left and right sides respectively, matching factory specifications. The plastic tanks are designed to resist corrosion and reduce weight, while the aluminum core provides effective heat transfer. The radiator does not include a cap, so the existing cap should be reused or replaced separately.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiator in Suzuki Grand Vitara
• Resolves overheating caused by clogged or inefficient radiator cores
• Addresses coolant leaks from cracked plastic tanks
• Improves cooling system performance after engine modifications or wear
• Suitable for restoring OEM cooling system functionality

Installation Notes and Tips

• Ensure compatibility with Suzuki Grand Vitara models before installation
• Reuse existing radiator cap or purchase separately as it is not included
• Inspect hoses and clamps for wear during installation
• Flush cooling system to remove debris before installing new radiator
• Check for proper inlet and outlet hose alignment with 1 3/8 inch diameter fittings

Quality Assurance and Warranty Information

The CSF 3443 radiator is manufactured to meet OEM standards, featuring durable aluminum cores and plastic tanks designed for corrosion resistance and longevity. While specific warranty details are not provided, CSF products typically undergo rigorous quality control to ensure reliable performance in Suzuki Grand Vitara vehicles.
