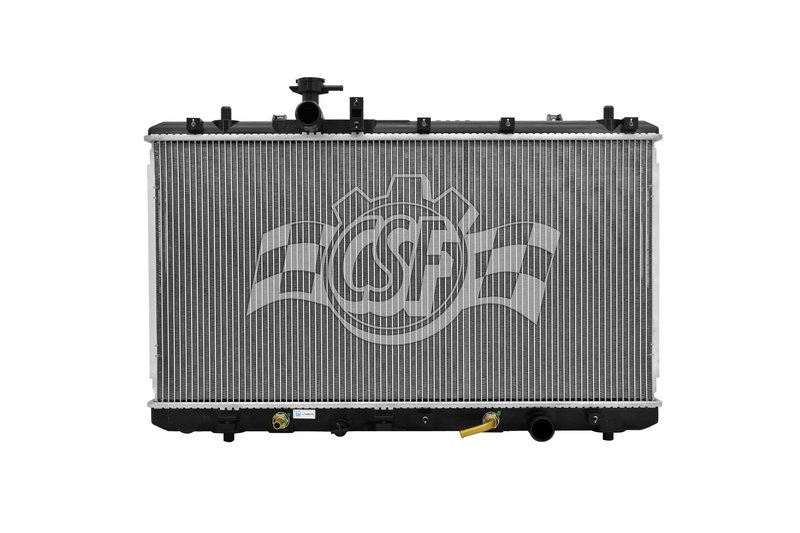

CSF 3444 Radiator

Overview of CSF 3444 Radiator for Suzuki SX4

The CSF 3444 radiator is designed specifically for the Suzuki SX4, providing reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a down flow configuration.

• Core thickness: 7/8 inch
• Core width: 28 1/16 inches
• Core length: 14 3/4 inches
• Aluminum core material with plastic tanks
• Inlet and outlet diameter: 1 3/8 inches (left inlet, right outlet)
• Down flow radiator type with 1 core row
• Includes high-efficiency concentric oil cooler (11 13/16 inches)
• Cap not included (CSF cap number 4514 compatible)

Detailed Description of the 1 Row Plastic Tank Aluminum Core Radiator

The CSF 3444 radiator belongs to the 1 Row Plastic Tank Aluminum Core product line, which combines OEM-style plastic tanks with a robust aluminum core. This design balances weight and durability while maintaining effective cooling capacity. The single-row core with a thickness of 7/8 inch and dimensions of 28 1/16 inches wide by 14 3/4 inches long ensures proper fitment and heat exchange for the Suzuki SX4. The down flow configuration directs coolant flow from top to bottom, supporting consistent engine temperature regulation.

Applications and Problem Solving

• Replaces faulty or leaking radiators in Suzuki SX4 models
• Addresses overheating issues caused by damaged or clogged cores
• Restores proper coolant flow with OEM-style inlet and outlet diameters
• Improves engine cooling efficiency with integrated oil cooler
• Suitable for vehicles requiring a 1-row radiator core design

Installation Notes and Tips

• Compatible with Suzuki SX4 models requiring a 1-row radiator with plastic tanks
• Ensure inlet and outlet hose diameters match 1 3/8 inches for proper connection
• Cap not included; use CSF cap number 4514 or equivalent
• Check for proper alignment of mounting points before installation
• Flush cooling system before installing to prevent contamination

Quality Assurance and Warranty

The CSF 3444 radiator is manufactured with high-quality aluminum core and plastic tanks to meet OEM specifications. It is designed to provide reliable cooling performance without hazardous materials. While a cap is not included, the radiator is compatible with CSF cap number 4514. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage.
