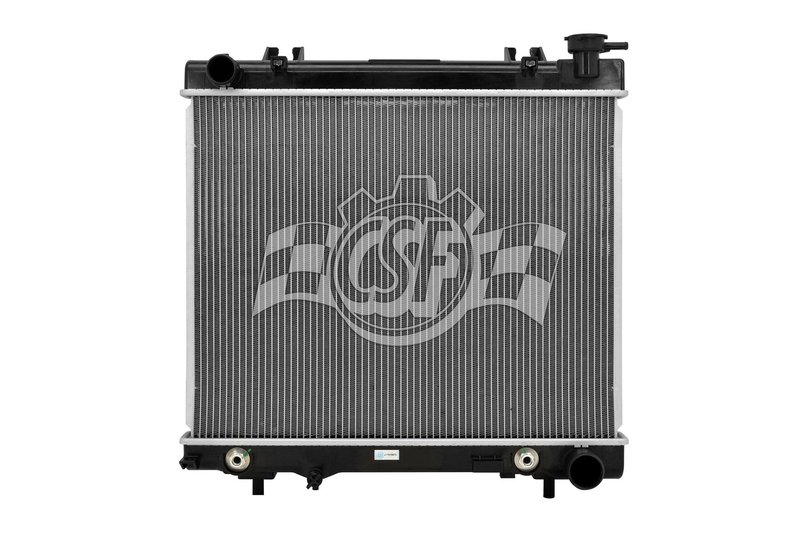

CSF 3454 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 3454 radiator is designed specifically for Dodge Dakota, Mitsubishi Raider, and Ram vehicles. Featuring a durable aluminum core combined with OE-style plastic tanks, this radiator offers reliable cooling performance tailored to your vehicle's needs.
- Core thickness: 1 1/4 inches
- Core width: 21 5/8 inches
- Core length: 17 11/16 inches
- Aluminum core with plastic tanks
- Down flow design with 1 row core
- Inlet diameter: 1 9/16 inches (left side)
- Outlet diameter: 1 13/16 inches (right side)
- Includes high-efficiency plate type oil cooler (14 3/4 inches)
- Cap not included (CSF cap number 4515 compatible)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines lightweight aluminum cores with OE-style plastic tanks to provide a balance of durability and efficient heat dissipation. This product line is engineered to meet original equipment specifications, ensuring compatibility and performance for vehicles like the Dodge Dakota and Mitsubishi Raider. The single-row core design supports effective cooling in a compact form factor, suitable for down flow radiator configurations.
Technical Description and Specifications
This radiator features a 1 1/4 inch thick aluminum core measuring 21 5/8 inches wide and 17 11/16 inches long. The down flow design facilitates efficient coolant movement through the single core row. The plastic tanks are molded to OEM standards, providing a secure fit and resistance to corrosion. Inlet and outlet diameters are 1 9/16 inches (left) and 1 13/16 inches (right), respectively, matching factory hose sizes for the Dodge Dakota, Mitsubishi Raider, and Ram models. The integrated high-efficiency plate type oil cooler (14 3/4 inches) enhances engine cooling performance under demanding conditions.
Common Applications and Problem Resolution
- Replacement for leaking or cracked radiators in Dodge Dakota and Mitsubishi Raider vehicles
- Solves overheating issues caused by clogged or damaged radiator cores
- Restores proper coolant flow with OEM-style inlet and outlet dimensions
- Addresses oil cooling needs with integrated plate type oil cooler
- Suitable for Ram models requiring a down flow radiator with plastic tanks
Installation Notes and Tips
Ensure compatibility by verifying vehicle make and model before installation. The CSF 3454 radiator requires a compatible radiator cap (CSF cap number 4515) as it is not included. Properly drain coolant and disconnect hoses before removal. Handle plastic tanks carefully to avoid damage during installation. Check hose connections for secure fitment to the specified inlet and outlet diameters. Bleed the cooling system after installation to prevent air pockets.
Quality Assurance and Warranty Information
The CSF 3454 radiator is manufactured to meet OEM specifications, using corrosion-resistant aluminum cores and durable plastic tanks. This product is free of hazardous materials and designed for long-term reliability. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
| Brand | CSF |
| Part Number | 3454 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 24 3/8 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 25 7/8 |
| Cap Included | No |
| Core Length | 17 11/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 21 5/8 |
| Csf Cap Number | 4515 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 9/16 Left |
| Inlet Length (in) | 22 11/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-efficiency Plate Type) |
| Outlet Diameter | 1 13/16 Right |
| Outlet Length (in) | 22 11/16 |
| Outlet Width (in) | 1 15/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 22 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Dodge | Dakota | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2011 | Dodge | Dakota | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2011 | Ram | Dakota | 4.7L | V8 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2011 | Ram | Dakota | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2010 | Dodge | Dakota | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2010 | Dodge | Dakota | 4.7L | V8 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2009 | Dodge | Dakota | 4.7L | V8 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2009 | Dodge | Dakota | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2009 | Mitsubishi | Raider | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Dodge | Dakota | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Dodge | Dakota | 4.7L | V8 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Mitsubishi | Raider | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Dodge | Dakota | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Dodge | Dakota | 4.7L | V8 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Mitsubishi | Raider | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Mitsubishi | Raider | 4.7L | V8 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2006 | Dodge | Dakota | 4.7L | V8 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2006 | Dodge | Dakota | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2006 | Mitsubishi | Raider | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2006 | Mitsubishi | Raider | 4.7L | V8 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2005 | Dodge | Dakota | 3.7L | V6 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2005 | Dodge | Dakota | 4.7L | V8 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
