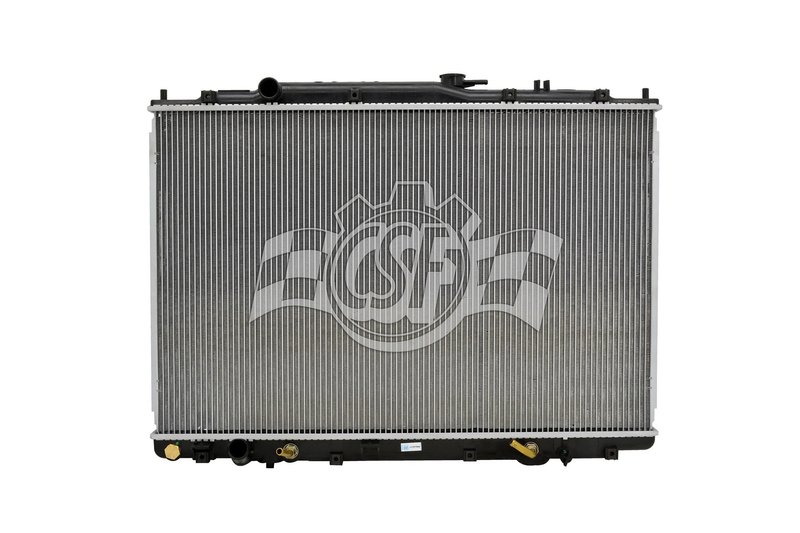

CSF 3472 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3472) is designed specifically for Acura MDX and Honda Pilot models. This radiator features a durable aluminum core combined with OE-style plastic tanks, providing reliable cooling performance for your vehicle's engine.
- Core Thickness: 7/8 inch
- Core Width: 30 3/8 inches
- Core Length: 19 3/4 inches
- Core Material: Aluminum
- Tank Material: Plastic
- Inlet and Outlet Diameter: 1 1/4 inches (left side)
- Down Flow Type Radiator
- Single Core Row Design
- Includes High-Efficiency Concentric Oil Cooler (14 3/4 inches)
- Cap Not Included (CSF Cap Number 4514 compatible)
Detailed Product Description
This radiator from CSF belongs to the 1 Row Plastic Tank Aluminum Core product line, which combines lightweight aluminum cores with OE-style plastic tanks to ensure efficient heat dissipation and corrosion resistance. The single-row core design with a thickness of 7/8 inch and dimensions of 30 3/8 inches wide by 19 3/4 inches long is engineered to meet the cooling demands of Acura MDX and Honda Pilot vehicles. The down flow configuration supports optimal coolant circulation, while the integrated high-efficiency concentric oil cooler enhances engine oil temperature regulation.
Compatible Vehicles and Applications
- Acura MDX radiator replacement
- Honda Pilot cooling system upgrade
- Replacement for OEM radiators with plastic tanks and aluminum cores
- Cooling system repair for overheating or coolant leaks
- Engine oil temperature management with built-in oil cooler
Installation Notes and Tips
- Ensure compatibility with Acura MDX and Honda Pilot models before installation
- Use the CSF cap number 4514 or equivalent radiator cap (not included)
- Inspect hoses and clamps for wear during installation
- Flush the cooling system to remove debris before fitting the new radiator
- Verify inlet and outlet hose diameters (1 1/4 inches, left side) for proper connection
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM specifications, using corrosion-resistant aluminum cores and durable plastic tanks. This radiator is designed as a direct replacement part to maintain factory cooling performance. While specific warranty details are not provided here, CSF products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product packaging or CSF documentation for exact warranty terms.
| Brand | CSF |
| Part Number | 3472 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 13 |
| Box Width (in) | 26 5/16 |
| Cap Included | No |
| Core Length | 19 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 30 3/8 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Left |
| Inlet Length (in) | 31 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 Left |
| Outlet Length (in) | 31 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model. |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Honda | Pilot | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2007 | Honda | Pilot | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2006 | Acura | MDX | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2006 | Honda | Pilot | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Acura | MDX | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Honda | Pilot | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2004 | Acura | MDX | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2004 | Honda | Pilot | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2003 | Acura | MDX | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2003 | Honda | Pilot | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2002 | Acura | MDX | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2001 | Acura | MDX | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
