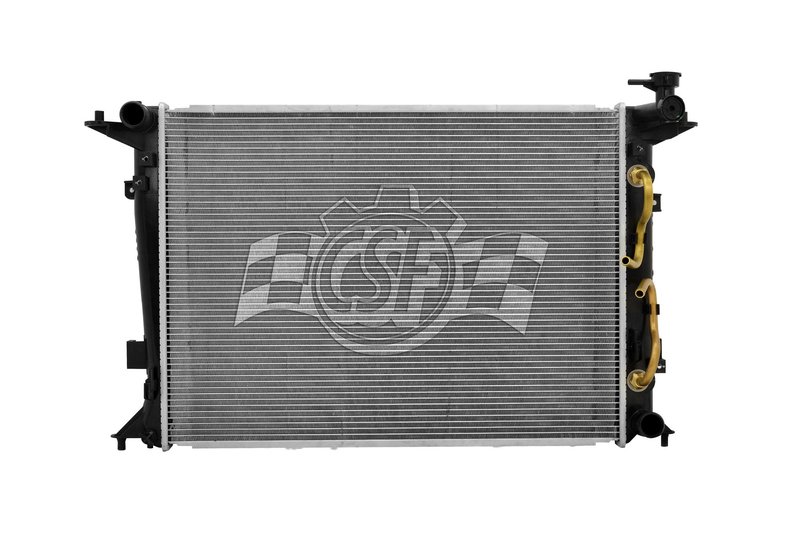

CSF 3484 Radiator
| Brand | CSF 3484 |
|---|---|
| Core Thickness | 5/8 |
| Core Width | 18 5/16 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 25 3/16 |
| Inlet Diameter | 1 3/8 left |
| Outlet Diameter | 1 3/8 right |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 6 14/16 |
| Box Length (in) | 35 3/8 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 22 9/16 |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 19 |
| Inlet Width (in) | 1 9/16 |
| Oil Cooler (in) | 11 1/2 (high-effeciency concentric type) |
| Outlet Length (in) | 19 |
| Outlet Width (in) | 1 9/16 |
| Tech Note | O.e.m. style plastic tanks & aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Hyundai · 7 vehicles |
OE-style design. Plastic tanks and an aluminum core mirror the original radiator construction.
Cross-flow layout. Promotes efficient coolant movement through the radiator core.
Wind tunnel tested. Validated for cooling performance in lab testing.
Cross-references APDI 8013151, BBB Industries 13467 and Bosch 13151 for the same application. See all 9.
CSF 3484 Radiator for Genesis Coupe
CSF 3484 is an OE-style radiator built with a plastic tank and aluminum core for the 2010-2016 Hyundai Genesis Coupe. It is engineered as a cross flow unit with a 1-row core layout and direct-fit inlet and outlet sizing for the listed application.
Key Features
- Brand: CSF
- Part number: 3484
- 1-row cross flow radiator design
- Plastic tank and aluminum core construction
- Core thickness: 5/8 in.
- Core dimensions: 18 5/16 in. wide x 25 3/16 in. long
- Inlet diameter: 1 3/8 in., left side
- Outlet diameter: 1 3/8 in., right side
- Oil cooler: 11 1/2 in. high-efficiency concentric type
- OE-style plastic tanks and aluminum core
Product Details
CSF manufactures radiators to high-performance standards and validates cooling performance through wind tunnel testing. The CSF 3484 follows an OE-style layout for the Hyundai Genesis Coupe, with plastic end tanks and an aluminum core chosen for efficient heat transfer and factory-style fitment. This radiator is a direct replacement option for 2010-2016 Hyundai Genesis Coupe cooling system service, including vehicles that need a cross flow radiator with left inlet and right outlet configuration. This part cross-references APDI 8013151 for the same application.
Common Cooling Issues This Radiator Can Address
- Cracked or leaking radiator tanks
- Restricted coolant flow from an aging core
- Overheating caused by reduced heat dissipation
- Corrosion or internal wear in the original radiator
- Cooling system service on a 2010-2016 Hyundai Genesis Coupe
Installation Notes and Tips
Verify inlet and outlet orientation before installation: inlet diameter is 1 3/8 in. on the left and outlet diameter is 1 3/8 in. on the right. This radiator does not include a cap, and the listed CSF cap number is 4503. Confirm all hose connections, mounting points, and cooler line routing against the vehicle before final assembly.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered and tested for cooling performance validation. The 3484 is built as an OE-style replacement radiator for the Hyundai Genesis Coupe platform.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2015 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2014 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2013 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2012 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2011 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2010 | Hyundai | Genesis Coupe | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
