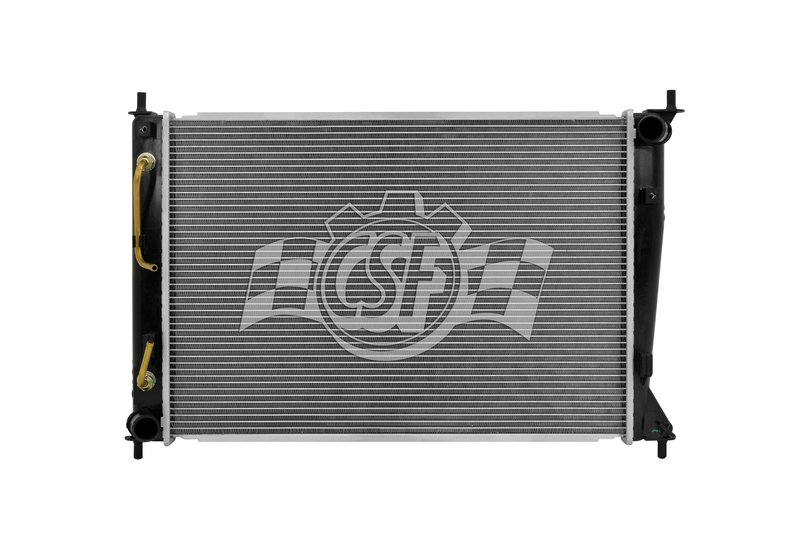

CSF 3494 Radiator
| Brand | CSF 3494 |
|---|---|
| Box Height (in) | 6 1/16 |
| Box Length (in) | 29 7/16 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 20 13/16 |
| Cap Included | No |
| Core Length | 22 13/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 5/16 Right |
| Inlet Length (in) | 16 5/8 |
| Inlet Width (in) | 1 3/8 |
| Oil Cooler (in) | 11 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 5/16 Left |
| Outlet Length (in) | 16 5/8 |
| Outlet Width (in) | 1 3/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Kia · 2 vehicles |
OE-style construction. Plastic tanks and an aluminum core match the original design.
Cross-flow design. Promotes efficient coolant flow through the radiator core.
Wind tunnel tested. Validated for cooling performance in lab testing.
Cross-references Bosch 13134, Spectra Premium CU13134 and 25310-2K100 for the same application. See all 7.
OE-Style Cooling for Kia Soul
This CSF radiator is built for 2010-2011 Kia Soul applications with an OE-style plastic tank and aluminum core design. It uses a cross-flow layout and a 1-row core to support consistent engine cooling in a direct-fit replacement format.
Key Features
- Fits 2010-2011 Kia Soul, N/A
- CSF Part Number: 3494
- 1-row radiator with cross-flow construction
- Plastic tank and aluminum core design
- Core thickness: 5/8 in.
- Core dimensions: 16 in. wide x 22 13/16 in. long
- Inlet and outlet diameter: 1 5/16 in. right / 1 5/16 in. left
- Integrated 11 in. high-efficiency concentric-type oil cooler
Product Details
CSF Part Number 3494 is engineered as an OE-style radiator for the Kia Soul, combining plastic end tanks with an aluminum core for a factory-type fit and cooling layout. The cross-flow design and 5/8-inch core thickness are matched to the listed application, while the built-in oil cooler adds an important cooling function for vehicles equipped for this configuration. CSF manufactures radiators to performance-focused standards and validates cooling performance through laboratory wind tunnel testing. This part also cross-references Bosch 13134 and Spectra Premium CU13134 for the same application.
Common Cooling Issues This Radiator Can Address
- Cracked or leaking radiator tanks
- Corrosion or clogging in the original radiator core
- Overheating caused by reduced coolant flow
- Damaged inlet or outlet connections
- Cooling system wear on a 2010-2011 Kia Soul
Installation Notes
Verify radiator dimensions, inlet and outlet orientation, and oil cooler configuration before installation. This radiator is listed as an OE-style plastic tank and aluminum core unit, so transfer of vehicle-specific components may be required depending on the application. Confirm that the cooling system is clean and inspect hoses, clamps, and coolant condition during replacement.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered and tested for cooling performance validation. With more than 50 years of radiator manufacturing experience and broad application coverage, CSF Part Number 3494 is built to meet the listed Kia Soul fitment requirements.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Kia | Soul | 2.0L | L4 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2010 | Kia | Soul | 2.0L | L4 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
