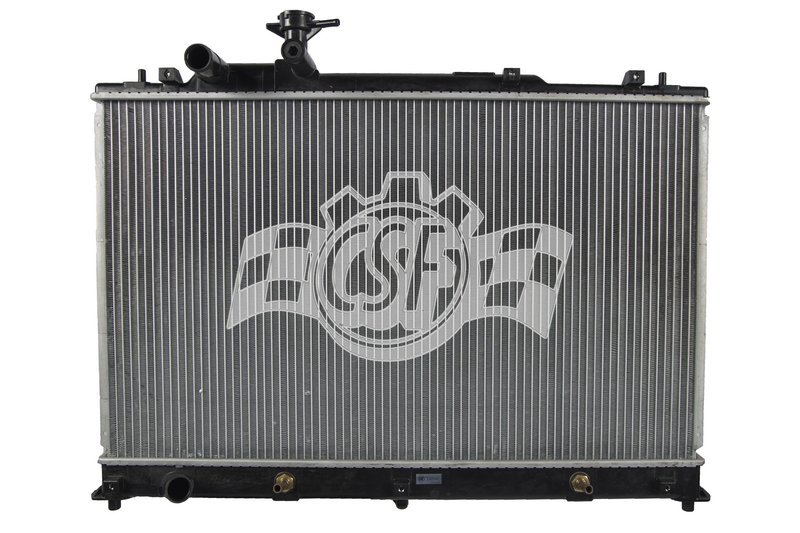

CSF 3497 Radiator
Overview of CSF 3497 Radiator for Mazda CX-7
The CSF 3497 radiator is designed specifically for the Mazda CX-7, featuring a durable aluminum core paired with plastic tanks. This radiator offers reliable cooling performance with a down flow design and precise fitment for your vehicle.
- Core thickness: 1 inch
- Core width: 29 1/2 inches
- Core length: 17 3/4 inches
- Aluminum core with plastic tanks
- Down flow radiator type
- Inlet and outlet diameter: 1 1/4 inches (left side)
- Single core row design
- Includes high-efficiency concentric oil cooler (14 3/4 inches)
- Cap not included
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core product line combines OEM-style plastic tanks with a robust aluminum core to provide effective heat dissipation and corrosion resistance. This design balances durability and weight, making it suitable for vehicles like the Mazda CX-7 that require efficient cooling without added bulk.
Product Description and Specifications
The CSF part number 3497 radiator features a 1-inch thick aluminum core measuring 29 1/2 inches wide and 17 3/4 inches long. The plastic tanks are engineered to OEM specifications, ensuring compatibility and ease of installation. Both the inlet and outlet have a diameter of 1 1/4 inches located on the left side, supporting a down flow coolant path. This radiator includes a high-efficiency concentric oil cooler measuring 14 3/4 inches, enhancing engine cooling performance. The single core row design is optimized for the Mazda CX-7, providing reliable temperature regulation under various driving conditions.
Common Applications and Issues Addressed
- Replacement for leaking or damaged radiators in Mazda CX-7 models
- Improves engine cooling efficiency to prevent overheating
- Restores proper coolant flow with OEM-style plastic tanks and aluminum core
- Addresses radiator core corrosion or clogging issues
- Supports engine oil cooling with integrated oil cooler
Installation Notes and Tips
- Ensure compatibility with Mazda CX-7 before installation
- Check inlet and outlet hose sizes (1 1/4 inches, left side) for proper fit
- Drain coolant completely before removing old radiator
- Inspect and replace radiator cap separately as it is not included
- Verify secure mounting of radiator and oil cooler connections
Quality Assurance and Warranty
The CSF 3497 radiator is manufactured to meet OEM standards, featuring a corrosion-resistant aluminum core and durable plastic tanks. While the cap is not included, the radiator core and tanks are designed for long-term reliability. Please consult the product documentation or manufacturer for specific warranty details related to this radiator.
| Brand | CSF |
| Part Number | 3497 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 6 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 16 |
| Box Width (in) | 26 |
| Cap Included | No |
| Core Length | 17 3/4 |
| Core Material | Aluminum |
| Core Thickness | 1 |
| Core Width | 29 1/2 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Left |
| Inlet Length (in) | 30 1/4 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 Left |
| Outlet Length (in) | 30 1/4 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Mazda | CX-7 | 2.3L | L4 | N/A | OE Style Design; Use Mini, 20 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2012 | Mazda | CX-7 | 2.5L | L4 | N/A | OE Style Design; Use Mini, 20 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2011 | Mazda | CX-7 | 2.3L | L4 | N/A | OE Style Design; Use Mini, 20 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2011 | Mazda | CX-7 | 2.5L | L4 | N/A | OE Style Design; Use Mini, 20 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2010 | Mazda | CX-7 | 2.3L | L4 | N/A | OE Style Design; Use Mini, 20 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2010 | Mazda | CX-7 | 2.5L | L4 | N/A | OE Style Design; Use Mini, 20 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2009 | Mazda | CX-7 | 2.3L | L4 | N/A | OE Style Design; Use Mini, 20 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2008 | Mazda | CX-7 | 2.3L | L4 | N/A | OE Style Design; Use Mini, 20 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2007 | Mazda | CX-7 | 2.3L | L4 | N/A | OE Style Design; Use Mini, 20 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
