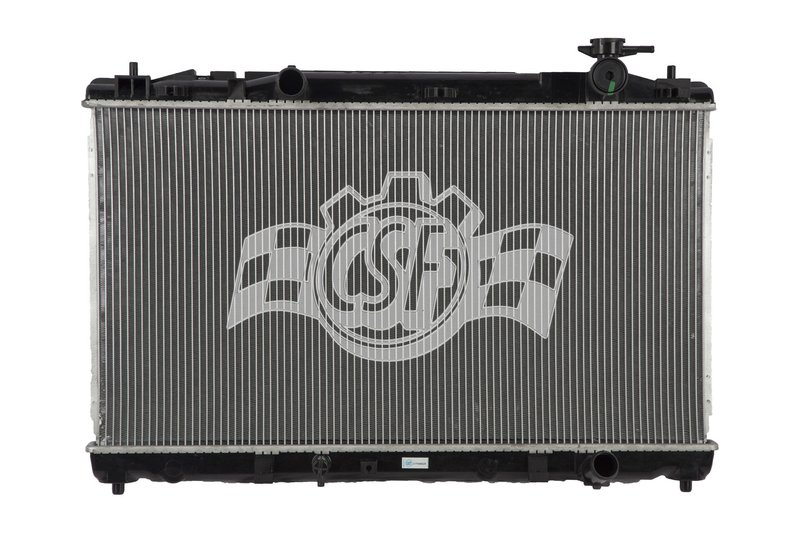

CSF 3503 Radiator

Overview of CSF 3503 Radiator for Toyota Camry

The CSF 3503 radiator is designed specifically for Toyota Camry models, featuring a durable aluminum core combined with plastic tanks. This radiator offers reliable cooling performance with a single-row core construction, making it suitable for maintaining optimal engine temperatures.

• Core Thickness: 5/8 inch
• Core Width: 28 5/8 inches
• Core Length: 15 13/16 inches
• Core Material: Aluminum
• Tank Material: Plastic
• Inlet Diameter: 1 3/8 inches (left side)
• Outlet Diameter: 1 3/8 inches (right side)
• Flow Type: Down flow
• Radiator Core Row Quantity: 1
• Cap Included: No

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core product line combines OEM-style plastic tanks with a robust aluminum core. This design balances weight and durability, providing efficient heat dissipation while maintaining compatibility with factory specifications. The single-row core thickness of 5/8 inch supports effective cooling for standard engine demands, making it a practical replacement option for Toyota Camry vehicles.

Product Description and Specifications

The CSF 3503 radiator features a 1-row aluminum core measuring 28 5/8 inches wide by 15 13/16 inches long, with a core thickness of 5/8 inch. The plastic tanks are engineered to OEM standards, ensuring a proper fit and reliable sealing. The radiator supports a down flow cooling design, with inlet and outlet diameters both at 1 3/8 inches positioned on the left and right sides respectively. This radiator does not include a cap but is compatible with CSF cap number 4514. The overall construction weighs approximately 10 pounds and is sized to fit the Toyota Camry cooling system requirements.

Common Applications and Problem Solving

• Replacement for leaking or damaged radiator tanks
• Restores cooling efficiency in overheating Toyota Camry engines
• Addresses radiator core corrosion or clogging issues
• Suitable for vehicles requiring OEM-style plastic tank radiators
• Supports proper coolant flow with down flow design

Installation Notes and Tips

When installing the CSF 3503 radiator, ensure compatibility with your Toyota Camry model year and engine configuration. Verify inlet and outlet hose sizes match the 1 3/8 inch diameter specifications. Since the radiator does not include a cap, use the recommended CSF cap number 4514 or an equivalent OEM cap. Properly bleed the cooling system after installation to avoid air pockets and ensure optimal performance.

Quality Assurance and Warranty

CSF radiators are manufactured to meet OEM standards, combining aluminum cores with plastic tanks for durability and performance. This radiator is free of hazardous materials and designed for long-term reliability. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
