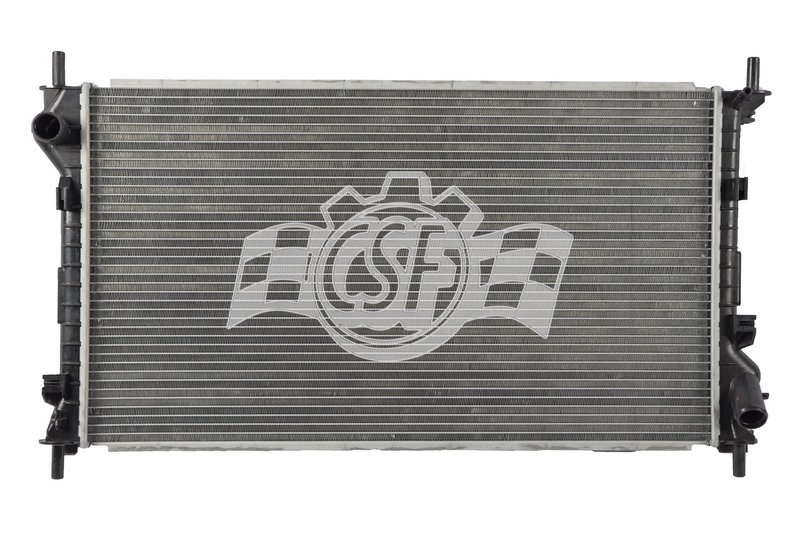

CSF 3512 Radiator

Overview of CSF 3512 Radiator for Ford Transit Connect

The CSF 3512 radiator is designed specifically for the Ford Transit Connect, providing reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a compact design.

• Core thickness: 15/16 inch
• Core width: 15 5/8 inches
• Core length: 27 5/8 inches
• Aluminum core material with plastic tanks
• Cross flow design for effective coolant circulation
• Inlet and outlet diameter: 1 3/8 inches (left inlet, right outlet)
• Compatible with Ford Transit Connect models
• Part number: 3512

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This product line is engineered to meet the cooling demands of vehicles like the Ford Transit Connect, offering a cross flow radiator design that supports efficient heat exchange while maintaining a lightweight profile.

Technical Description and Specifications

This radiator features a 15/16 inch thick aluminum core measuring 15 5/8 inches wide and 27 5/8 inches long, providing a single row of cooling fins for effective heat transfer. The plastic tanks are designed to match OEM specifications, ensuring proper fitment and reliable sealing. The cross flow configuration allows coolant to move horizontally through the core, improving cooling efficiency. Both the inlet and outlet have a diameter of 1 3/8 inches, positioned on the left and right sides respectively, facilitating straightforward hose connections.

Common Applications and Problem Solving

• Replaces damaged or leaking radiators on Ford Transit Connect vehicles
• Addresses overheating issues caused by inefficient cooling
• Restores proper coolant flow with OEM-style plastic tanks and aluminum core
• Solves radiator core corrosion or clogging problems
• Improves engine temperature regulation for consistent performance

Installation Notes and Tips

Installation of the CSF 3512 radiator should follow OEM guidelines to ensure proper fit and function. Verify hose connections match the 1 3/8 inch inlet and outlet diameters. Since the radiator does not include a cap, reuse the existing cap or source a compatible replacement. Inspect mounting points and brackets for wear before installation to secure the radiator firmly. Bleed the cooling system after installation to remove air pockets and ensure optimal coolant circulation.

Quality Assurance and Warranty

The CSF 3512 radiator is manufactured to meet OEM standards, featuring a durable aluminum core and plastic tanks designed for longevity. This radiator is free of hazardous materials and packaged securely to prevent damage during transport. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
