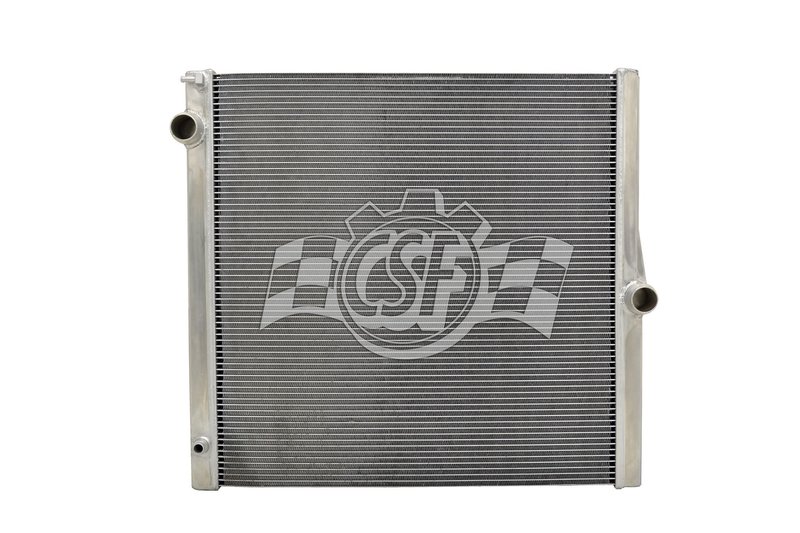

CSF 3522 Radiator

Overview of CSF 1 Row All Aluminum Radiator for BMW X5

The CSF 3522 radiator is engineered specifically for BMW X5 models, providing reliable cooling performance with its all-aluminum construction. Designed as a cross flow radiator, it features a single core row that balances efficient heat dissipation with a compact design.

• Core Thickness: 1 1/4 inches
• Core Width: 23 3/8 inches
• Core Length: 22 5/8 inches
• Core and Tank Material: Aluminum
• Inlet Diameter: 1 1/2 inches (left side)
• Outlet Diameter: 1 1/2 inches (right side)
• Cross flow design for optimized coolant flow
• Radiator Core Row Quantity: 1
• Cap not included
• Box Dimensions: 28 1/2" L x 25 11/16" W x 4 5/16" H
• Box Weight: 12 lbs

Details on the 1 Row All Aluminum Product Line

The CSF 1 Row All Aluminum product line focuses on OEM-style radiators featuring all-aluminum tanks and cores. This design enhances durability and heat transfer efficiency compared to traditional materials. The 3522 radiator model includes quick-connect fittings, facilitating straightforward installation and maintenance for BMW X5 vehicles.

Technical Description of CSF Radiator Part Number 3522

This radiator is constructed with a 1 1/4 inch thick aluminum core that measures 23 3/8 inches wide and 22 5/8 inches long, providing a robust cooling surface. Both the core and tanks are made from aluminum, which offers corrosion resistance and improved thermal conductivity. The cross flow design allows coolant to move horizontally through the core, optimizing heat exchange. The inlet and outlet diameters are both 1 1/2 inches, positioned on the left and right sides respectively, matching OEM specifications for the BMW X5 cooling system.

Common Applications and Problem Solving

• Replacement for leaking or damaged radiators in BMW X5 models
• Resolving overheating issues caused by inefficient cooling
• Upgrading from older radiators with mixed materials to all-aluminum construction
• Addressing coolant flow restrictions due to clogged or corroded cores
• Maintaining proper engine temperature for optimal performance

Installation Notes and Tips

When installing the CSF 3522 radiator, ensure compatibility with your BMW X5 model year and engine configuration. The radiator features quick-connect fittings for easier hose attachment. Since the cap is not included, reuse the existing radiator cap or source a compatible replacement. Verify inlet and outlet hose diameters and positions before installation to avoid fitment issues.

Quality Assurance and Warranty Information

CSF radiators are manufactured to meet OEM standards, using high-quality aluminum materials for durability and corrosion resistance. The 3522 radiator undergoes rigorous testing to ensure reliable performance in BMW X5 vehicles. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
