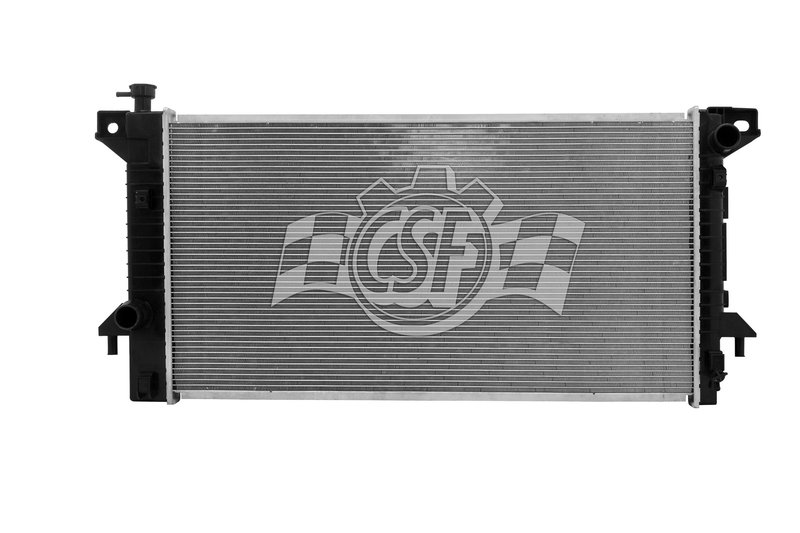

CSF 3546 Radiator
OE Quality 60-Day Returns
CSF
 1 Row Plastic Tank Aluminum Core

CSF 3546 Radiator

Brand CSF 3546
Box Height (in) 7 7/16
Box Length (in) 41 11/16
Box Weight (lbs) 14
Box Width (in) 21 3/4
Cap Included No
Core Length 31 7/16
Core Material Aluminum
Core Thickness 7/8
Core Width 16 5/16
Csf Cap Number 4503
Down Flow Or Cross Flow Type Cross Flow
Hazardous Material No
Inlet Diameter 1 3/4 Right
Inlet Length (in) 17 3/4
Inlet Width (in) 2 1/16
Oil Cooler (in) 12 (high-efficiency Plate Type)
Outlet Diameter 1 9/16 Left
Outlet Length (in) 17 3/4
Outlet Width (in) 2 1/16
Radiator Core Row Quantity 1
Tank Material Plastic
Tech Note O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe.
Product line 1 Row Plastic Tank Aluminum Core
Fits Ford and Lincoln · 25 vehicles

OE-style construction. Plastic tanks and an aluminum core match the original design.

Cross-flow design. Promotes efficient coolant flow for consistent cooling performance.

Quick-connect outlet pipe. Simplifies installation with a secure, factory-style connection.

Cross-references Carlson 13098, Davico Mfg 13099 and 9L3Z 8005 A for the same application. See all 6.

$149.15Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $149.15
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

OE-Style Cooling Replacement for Ford and Lincoln

CSF 3546 is an OE-style radiator built with a plastic tank and aluminum core for direct replacement cooling performance. It is designed for the 2009-2014 Ford Expedition, 2009-2014 Lincoln Navigator, 2009-2010 Ford F-150, 2010 Ford F-150, and 2010 Lincoln Mark LT applications listed below.

This radiator uses a cross-flow design with a 1-row aluminum core, quick-connect outlet pipe, and integrated high-efficiency plate-type oil cooler. The CSF 3546 is built around factory-style dimensions and hose connections for a straightforward radiator replacement on full-size Ford and Lincoln trucks and SUVs.

Key Features

  • Brand: CSF
  • Part number: 3546
  • 1-row aluminum core with plastic tanks
  • Cross-flow radiator design
  • Core thickness: 7/8 in.
  • Core width: 16 5/16 in.
  • Core length: 31 7/16 in.
  • Inlet diameter: 1 3/4 in., right side
  • Outlet diameter: 1 9/16 in., left side
  • O.E.M.-style plastic tanks and aluminum core with quick-connect outlet pipe
  • High-efficiency 12 in. plate-type oil cooler
  • Cap not included

Product Details

CSF manufactures radiators to high-performance standards and validates cooling performance through laboratory wind tunnel testing. The 3546 follows an OE-style layout for Ford Expedition, Lincoln Navigator, Ford F-150, and Lincoln Mark LT fitments, making it a practical replacement when the original radiator is leaking, restricted, or no longer maintaining stable operating temperatures. This part cross-references Carlson 13098 and Davico Mfg 13099 for the same application.

Common Cooling Issues This Radiator Can Address

  • Coolant leaks from cracked or aged plastic tanks
  • Restricted coolant flow from a deteriorated radiator core
  • Overheating caused by reduced heat transfer efficiency
  • Transmission or engine temperature instability in stop-and-go driving
  • Damaged inlet or outlet connections on the original radiator

Installation Notes

  • Fits 2009-2014 Ford Expedition, N/A; OE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty
  • Fits 2009-2014 Lincoln Navigator, N/A; OE style design with Mini 16 psi cap.
  • Fits 2009-2010 Ford F-150, N/A; OE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty
  • Fits 2010 Ford F-150, N/A; OE style design with Mini 16 psi cap.
  • Fits 2010 Lincoln Mark LT, N/A; OE style design with Mini 16 psi cap.
  • Verify hose routing, connector style, and cap specification before installation.
  • Flush the cooling system and inspect related hoses, clamps, and coolant condition during replacement.

Quality Assurance

CSF radiators are produced in ISO/TSO-certified factories and built for global OE-style cooling applications. The brand has supplied radiators worldwide for more than 50 years and manufactures a broad catalog of radiator designs for leading vehicle platforms.

Related reading

This part fits 25 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
2014FordExpedition—5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2014LincolnNavigator—5.4LV8N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2013FordExpedition—5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2013LincolnNavigator—5.4LV8N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2012FordExpedition—5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2012LincolnNavigator—5.4LV8N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2011FordExpedition—5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2011LincolnNavigator—5.4LV8N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2010FordExpedition—5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2010FordF-150SVT Raptor5.4LV8N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2010FordF-150FX45.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2010FordF-150Lariat5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2010FordF-150Platinum5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2010FordF-150—4.6LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2010FordF-150King Ranch5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2010FordF-150XL5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2010FordF-150Harley-Davidson Edition5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2010FordF-150XLT5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2010FordF-150FX25.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2010LincolnMark LT—5.4LV8N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2010LincolnNavigator—5.4LV8N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2009FordExpedition—5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2009FordF-150—5.4LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2009FordF-150—4.6LV8N/AOE Style Design; Use Mini, 16 psi Cap; Standard Duty & Heavy Duty; 1 Row Plastic Tank Aluminum Core
2009LincolnNavigator—5.4LV8N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Carlson — 13098Davico Mfg — 130999L3Z 8005 A9L3Z 8005 BFO3010287FO3010288
