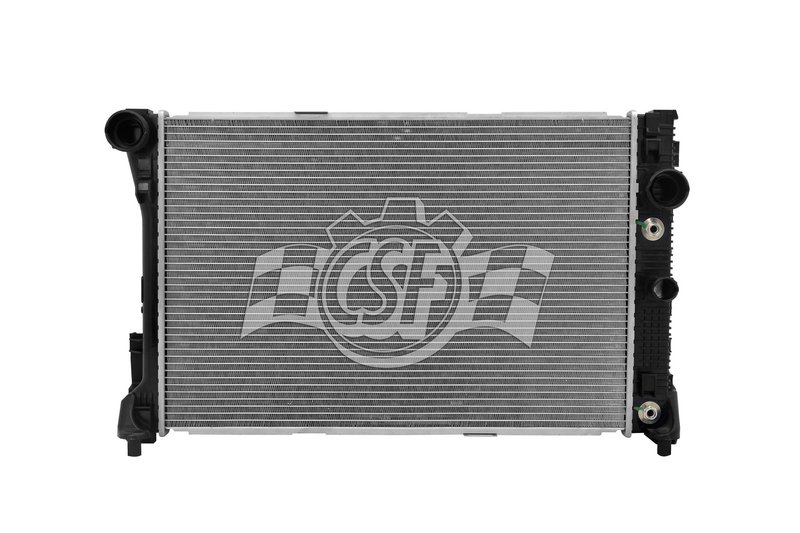

CSF 3547 Radiator

Overview of CSF 3547 Radiator for Mercedes-Benz Models

The CSF 3547 radiator is designed specifically for select Mercedes-Benz vehicles including the C300, E350, GLK350, and SLK250. This radiator features a durable aluminum core paired with OE-style plastic tanks, engineered to provide reliable cooling performance for your vehicle's engine.

• Core thickness: 7/8 inch
• Core width: 16 7/8 inches
• Core length: 25 5/16 inches
• Aluminum core with plastic tanks
• Cross flow design for efficient heat dissipation
• Inlet and outlet diameter: 1 13/16 inches (left inlet, right outlet)
• One core row configuration
• Includes high-efficiency plate type oil cooler (10 1/16 inches)
• Quick-connect inlet for easy installation

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core line combines lightweight plastic tanks with a robust aluminum core to balance durability and heat transfer efficiency. This product line is designed to meet OEM specifications, ensuring compatibility and performance for vehicles like the Mercedes-Benz C300, E350, GLK350, and SLK250. The single-row core design supports effective cooling while maintaining a compact form factor.

Technical Description of the CSF 3547 Radiator

This radiator features a 7/8 inch thick aluminum core measuring 16 7/8 inches wide and 25 5/16 inches long, optimized for cross flow cooling. The plastic tanks are engineered to OEM standards and include quick-connect inlets for streamlined installation. Both the inlet and outlet have a diameter of 1 13/16 inches, positioned on the left and right sides respectively. The integrated oil cooler is a high-efficiency plate type measuring 10 1/16 inches, enhancing the radiator's ability to manage engine temperatures under various driving conditions.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiators in Mercedes-Benz C300, E350, GLK350, and SLK250
• Resolves engine overheating caused by inefficient cooling
• Addresses coolant leaks from cracked plastic tanks
• Improves cooling system performance with cross flow design
• Supports engine oil temperature regulation via integrated oil cooler

Installation Notes and Tips

Ensure compatibility with your specific Mercedes-Benz model before installation. The quick-connect inlet design simplifies hose attachment, but verify all connections are secure to prevent leaks. It is recommended to inspect and replace coolant hoses and clamps during radiator installation. Properly bleed the cooling system after installation to avoid air pockets and ensure optimal performance.

Quality Assurance and Warranty Information

The CSF 3547 radiator is manufactured to meet OEM quality standards, featuring durable aluminum cores and plastic tanks designed for longevity. While the product does not include a radiator cap, it is engineered for direct replacement in compatible Mercedes-Benz models. Warranty coverage details should be confirmed with the distributor or manufacturer.
