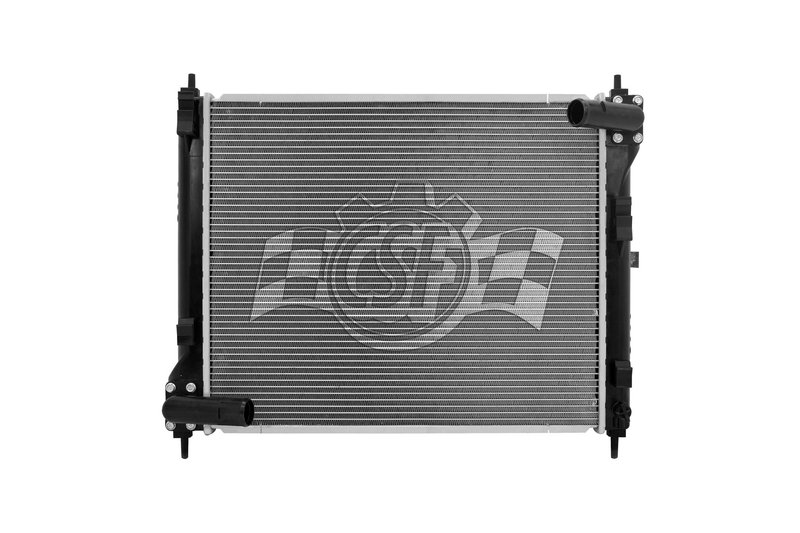

CSF 3549 Radiator
| Brand | CSF 3549 |
|---|---|
| Box Height (in) | 7 4/16 |
| Box Length (in) | 25 15/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 22 3/16 |
| Cap Included | No |
| Core Length | 20 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 16 9/16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Right |
| Inlet Length (in) | 17 1/4 |
| Inlet Width (in) | 1 5/8 |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 17 1/4 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Nissan · 22 vehicles |
OE-style design. Plastic tanks and an aluminum core match the original construction.
Cross-flow layout. Promotes efficient cooling performance through the radiator core.
Wind tunnel tested. Validated in lab conditions for cooling performance.
Cross-references APDI 8013264, Bosch 13264 and Spectra Premium CU13264 for the same application. See all 6.
OE-Style Radiator for Nissan Cooling Repair
CSF radiator Part Number 3549 is an OE-style replacement built with a plastic tank and aluminum core for direct-fit cooling system service. It is engineered for cross flow applications and matches the factory-style layout used on select Nissan Sentra and Nissan Juke models.
The CSF 1 Row Plastic Tank Aluminum Core line focuses on factory-style fitment and cooling performance validation. CSF designs and tests radiators for consistent thermal control, using an aluminum core with plastic tanks to mirror common OEM construction on modern passenger vehicles.
Key Features
- Part Number: 3549
- 1-row radiator design
- Cross flow configuration
- Aluminum core with plastic tanks
- Core thickness: 1 1/4 in.
- Inlet diameter: 1 3/8 in., right side
- Outlet diameter: 1 3/8 in., left side
- OE-style plastic tank and aluminum core construction
- Cap not included
Detailed Description
CSF 3549 is a replacement radiator designed for Nissan Sentra and Nissan Juke applications that require a factory-style cross flow layout. The aluminum core helps transfer heat efficiently, while the plastic tanks match the original equipment design used on these vehicles. This radiator is built for 2011-2014 Nissan Juke, 2015-2017 Nissan Juke, and 2017-2019 Nissan Sentra fitments, making it a direct replacement choice for common cooling system repairs.
This part cross-references APDI 8013264 and Spectra Premium CU13264 for the same application. The CSF radiator Part Number 3549 is also listed with interchange references including Bosch 13264.
What It Helps Fix
- Coolant leaks from cracked or aging radiator tanks
- Overheating caused by restricted or damaged radiator flow
- Reduced cooling efficiency from corroded internal passages
- Temperature instability during stop-and-go driving
- Cooling system service needs on Nissan Sentra and Nissan Juke models
Installation Notes and Tips
Verify inlet and outlet orientation before installation: inlet is on the right and outlet is on the left. Confirm the vehicle uses the listed cross flow layout and check surrounding cooling components, hoses, and mounts for wear before completing the repair. The radiator cap is not included, so reuse or replace the cap separately as needed.
Quality Assurance
CSF manufactures radiators to high-performance standards and validates cooling performance through laboratory wind tunnel testing. The brand states its factories are ISO/TSO certified and that it has supplied radiators worldwide for more than 50 years.
- Fits 2017-2019 Nissan Sentra, N/A
- Fits 2015-2017 Nissan Juke, N/A
- Fits 2011-2014 Nissan Juke, N/A
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Nissan | Sentra | — | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2018 | Nissan | Sentra | — | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2017 | Nissan | Juke | Nismo RS | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2017 | Nissan | Juke | Nismo | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2017 | Nissan | Juke | SV | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2017 | Nissan | Juke | S | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2017 | Nissan | Juke | SL | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2017 | Nissan | Sentra | — | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2016 | Nissan | Juke | S | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2016 | Nissan | Juke | Nismo RS | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2016 | Nissan | Juke | Nismo | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2016 | Nissan | Juke | SV | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2016 | Nissan | Juke | SL | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2015 | Nissan | Juke | SV | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2015 | Nissan | Juke | Nismo | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2015 | Nissan | Juke | S | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2015 | Nissan | Juke | SL | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2015 | Nissan | Juke | Nismo RS | 1.6L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2014 | Nissan | Juke | — | 1.6L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2013 | Nissan | Juke | — | 1.6L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2012 | Nissan | Juke | — | 1.6L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2011 | Nissan | Juke | — | 1.6L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
