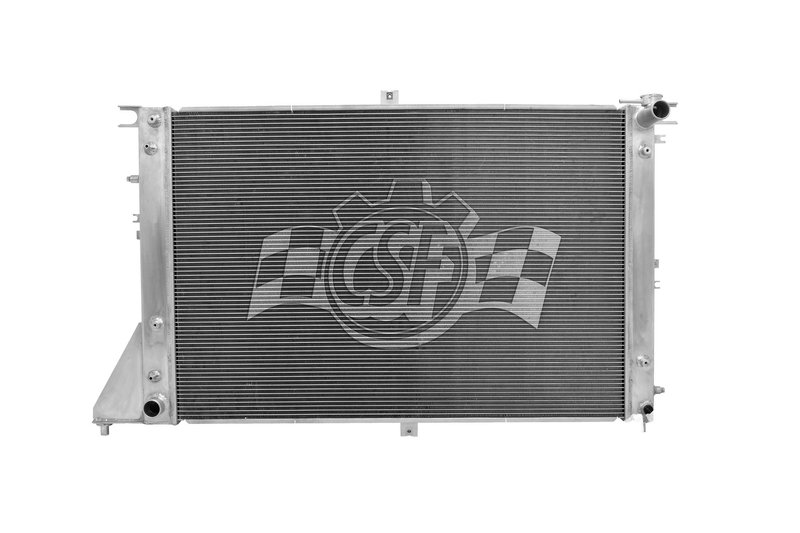

CSF 3550 Radiator

CSF 3550 Aluminum Radiator for Nissan NV Vans

The CSF 3550 is a 2-row all-aluminum radiator built for select Nissan NV1500, NV2500, and NV3500 vans. It combines an aluminum core and aluminum tanks with a cross-flow layout to support efficient cooling in demanding commercial and fleet use.

Key Features

• 2-row all-aluminum construction for the core and tanks
• Cross-flow design with 1 5/8 in. core thickness
• Core dimensions: 35 3/16 in. length x 23 11/16 in. width
• Inlet: 1 3/8 in. right; outlet: 1 3/8 in. left
• Integrated high-efficiency concentric-type oil cooler
• No radiator cap included; CSF cap number 4503
• Part number: 3550

Product Details

CSF’s 2 Row All Aluminum line focuses on lightweight, durable radiator construction with aluminum tanks and core for consistent heat transfer. The CSF 3550 is engineered and wind-tunnel tested for cooling performance validation, and CSF manufactures a wide range of radiator applications for modern vehicles. This radiator is a direct-fit style replacement for select Nissan NV vans and is listed with interchange references including Carlson 13335 and OE-style numbers 21460-1PA0A and NI3010224.

Compatible With 2014-2018 Nissan NV1500, NV2500, and NV3500, this radiator is a practical choice for owners looking for a replacement radiator for Nissan NV1500 2014-2018, Nissan NV2500 2014-2018, or Nissan NV3500 2014-2018 applications. The CSF 3550 part number is also useful when cross-checking catalog listings for the same vehicle platform.

What This Radiator Helps Address

• Overheating caused by a worn or inefficient factory radiator
• Coolant temperature instability during stop-and-go driving
• Reduced cooling performance from aging plastic-tank or mixed-material units
• Heat buildup in work vans used for hauling, delivery, or fleet service
• Oil cooling needs where the integrated cooler is part of the original setup

Installation Notes and Tips

• Verify radiator dimensions, inlet and outlet locations, and transmission/oil cooler configuration before installation.
• 2012-2013 Nissan NV1500, NV2500, and NV3500 applications require a mini 16 psi cap per the fitment notes.
• Use the correct cap specification for the vehicle year and cooling system setup.
• Inspect hoses, clamps, and coolant condition during radiator replacement.
• Bleed the cooling system thoroughly after installation to remove trapped air.

Quality Assurance

CSF radiators are produced to high-performance standards in ISO/TSO-certified facilities and validated through laboratory testing for cooling performance. The brand has supplied radiators worldwide for decades, and the CSF 3550 reflects that manufacturing focus in a 2-row all-aluminum design for Nissan NV1500, NV2500, and NV3500 service.
