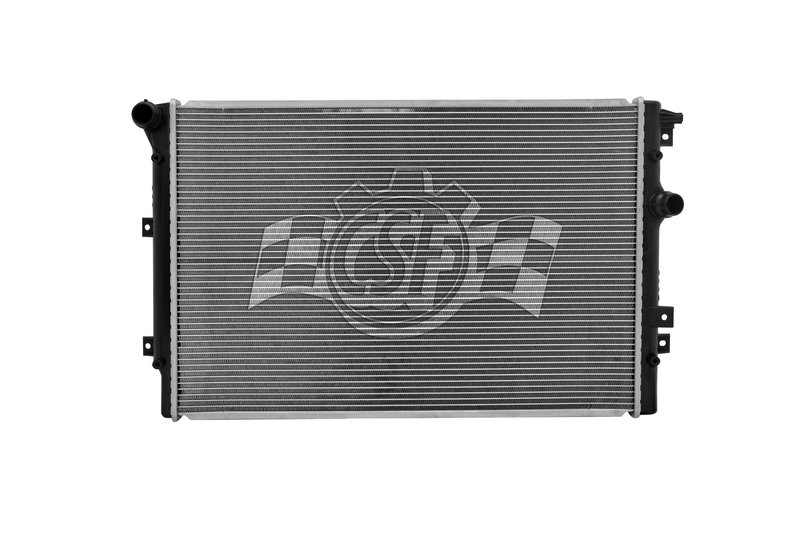

CSF 3560 Radiator

CSF 3560 Radiator Overview

The CSF 3560 is an OE-style radiator built with a plastic tank and aluminum core for Volkswagen Tiguan cooling system service. It is designed for the 2009-2017 Volkswagen Tiguan and the 2017-2018 Volkswagen Tiguan Limited, with a cross flow layout and quick-connect inlet and outlet pipe connections.

CSF’s radiator line is manufactured to high performance standards and validated through engineering and wind tunnel testing. The 3560 follows a 1 row plastic tank aluminum core design that matches the factory-style layout for direct replacement service on the Volkswagen Tiguan platform.

Key Features

• Part number: CSF 3560
• OE-style plastic tank and aluminum core construction
• 1 row core design with cross flow configuration
• Core thickness: 1 1/4 in.
• Inlet diameter: 1 1/4 in., left side
• Outlet diameter: 1 1/4 in., right side
• Quick-connect inlet and outlet pipe design
• Cap not included
• Compatible with Volkswagen Tiguan and Volkswagen Tiguan Limited applications

Detailed Description

The CSF 3560 radiator is engineered for Volkswagen Tiguan cooling system replacement where an OE-style fit and factory-style hose connection layout are required. Its aluminum core helps transfer heat efficiently, while the plastic tank construction follows the original equipment design used on the Tiguan platform. With a 25 9/16 in. core length and 17 in. core width, this radiator is built around the dimensions needed for the listed Volkswagen applications. If you are searching for a Volkswagen Tiguan radiator replacement or a CSF 3560 radiator for a Tiguan Limited, this unit provides a direct-fit service solution for the specified model years.

This part cross-references APDI 8013272 and Spectra Premium CU13272 for the same application.

What It Helps Address

• Coolant leaks from a damaged or aging radiator tank
• Overheating caused by restricted or inefficient heat transfer
• Cracked plastic end tanks on high-mileage Volkswagen Tiguan radiators
• Corrosion or internal wear in the factory cooling assembly
• Cooling system service needs on 2009-2017 Volkswagen Tiguan and 2017-2018 Volkswagen Tiguan Limited models

Installation Notes and Tips

Verify inlet and outlet orientation before installation; this radiator uses a left inlet and right outlet layout. Confirm the vehicle’s cooling system matches the listed OE-style plastic tank and aluminum core configuration, and inspect hoses, clamps, and related cooling components during replacement. The radiator cap is not included, so reuse or replace the cap separately as needed.

Quality Assurance

CSF manufactures radiators in ISO/TSO certified facilities and has supplied cooling products worldwide for decades. The brand reports extensive model coverage and engineering validation for cooling performance, supporting consistent fit and function for the listed Volkswagen Tiguan applications.
