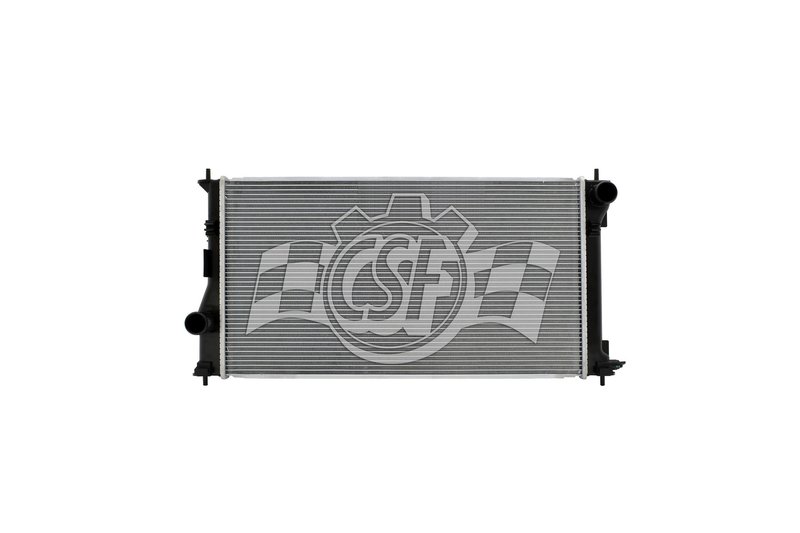

CSF 3569 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3569) is engineered for reliable cooling performance in select Scion, Subaru, and Toyota vehicles. Designed specifically for models such as the Scion FR-S, Subaru BRZ, and Toyota 86, this radiator combines durable materials with precise dimensions to ensure optimal fit and function.
- Core thickness: 5/8 inch
- Core width: 14 inches
- Core length: 25 9/16 inches
- Aluminum core material for efficient heat dissipation
- Plastic tanks for corrosion resistance
- Cross flow design for effective coolant circulation
- Inlet and outlet diameters: 1 9/16 inches (right inlet, left outlet)
- Single core row configuration
- OEM style plastic tanks and aluminum core construction
Detailed Product Description
This radiator from CSF features a 1 Row Plastic Tank Aluminum Core design, combining a lightweight aluminum core with durable plastic tanks. The aluminum core measures 5/8 inch thick, 14 inches wide, and 25 9/16 inches long, providing a balance of cooling capacity and compact size. The cross flow configuration enhances coolant flow efficiency, which is critical for maintaining engine temperature under various driving conditions. The inlet and outlet ports are both 1 9/16 inches in diameter, positioned on the right and left sides respectively, matching OEM specifications for a direct replacement.
The 1 Row Plastic Tank Aluminum Core product line is known for its use of OEM-style plastic tanks paired with aluminum cores, offering a combination of corrosion resistance and effective heat transfer. This design is suitable for vehicles requiring a single-row radiator core, such as the Scion FR-S, Subaru BRZ, and Toyota 86, ensuring compatibility and reliable performance.
Applications and Common Issues Addressed
- Replacement for leaking or cracked radiators in Scion FR-S, Subaru BRZ, and Toyota 86
- Resolves overheating caused by inefficient or damaged radiator cores
- Addresses coolant flow restrictions due to clogged or corroded radiator passages
- Restores proper engine temperature regulation for improved vehicle performance
- Suitable for vehicles requiring a cross flow radiator with OEM-style plastic tanks
Installation Notes and Tips
- Ensure compatibility with Scion FR-S, Subaru BRZ, or Toyota 86 before installation
- Inspect and replace radiator hoses and clamps as needed during installation
- Bleed the cooling system properly to avoid air pockets after installation
- Verify inlet and outlet port orientation matches vehicle specifications
- Use recommended coolant type and maintain proper fluid levels
Quality Assurance and Warranty
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3569) is manufactured to meet OEM standards, featuring corrosion-resistant plastic tanks and a durable aluminum core. This radiator is not classified as hazardous material and is designed for long-term reliability. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
| Brand | CSF |
| Part Number | 3569 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 32 5/8 |
| Box Weight (lbs) | 6 |
| Box Width (in) | 18 1/4 |
| Cap Included | No |
| Core Length | 25 9/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 14 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 9/16 Right |
| Inlet Length (in) | 14 5/16 |
| Inlet Width (in) | 1 1/16 |
| Outlet Diameter | 1 9/16 Left |
| Outlet Length (in) | 14 5/16 |
| Outlet Width (in) | 1 1/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
