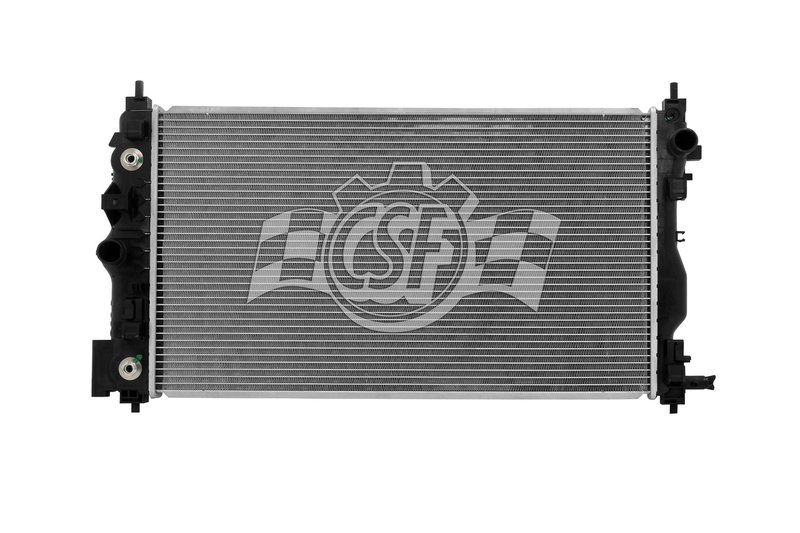

CSF 3579 Radiator

Overview of CSF 3579 Radiator for Buick Verano

The CSF 3579 radiator is designed specifically for the Buick Verano, offering reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core configuration optimized for efficient heat dissipation in a compact design.

• Core thickness: 1 1/4 inches
• Core width: 15 1/4 inches
• Core length: 26 3/4 inches
• Aluminum core with plastic tanks
• Cross flow design for effective coolant circulation
• Inlet and outlet diameter: 1 3/8 inches (right inlet, left outlet)
• Includes a high-efficiency plate type oil cooler (11 1/2 inches)
• OEM style plastic tanks with quick-connect oil fittings

About the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core product line combines lightweight plastic tanks with a robust aluminum core to provide a balance of durability and efficient cooling. This design supports effective heat transfer while maintaining compatibility with OEM specifications. The single-row core configuration in this line is suitable for vehicles like the Buick Verano that require reliable cooling without added bulk.

Detailed Product Description

The CSF 3579 radiator features a 1 1/4 inch thick aluminum core measuring 15 1/4 inches wide and 26 3/4 inches long, providing a solid surface area for heat exchange. The cross flow design enhances coolant flow from the right inlet to the left outlet, both sized at 1 3/8 inches in diameter, ensuring consistent temperature regulation. The plastic tanks are engineered to meet OEM standards, offering durability and resistance to corrosion. Additionally, the integrated 11 1/2 inch high-efficiency plate type oil cooler supports engine oil temperature management, contributing to overall engine performance and longevity.

Common Applications and Problem Solving

• Replacement for leaking or damaged radiators in Buick Verano models
• Resolves overheating issues caused by inefficient cooling systems
• Addresses coolant leaks from cracked plastic tanks
• Improves engine oil cooling with integrated oil cooler
• Suitable for restoring OEM cooling system performance

Installation Notes and Tips

When installing the CSF 3579 radiator, ensure proper alignment of the right-side inlet and left-side outlet hoses to match the cross flow design. Verify that all quick-connect fittings for the oil cooler are securely attached to prevent leaks. It is recommended to inspect and replace any worn hoses or clamps during installation. Bleed the cooling system thoroughly to remove air pockets and maintain optimal coolant flow.

Quality Assurance and Warranty

CSF radiators, including part number 3579, are manufactured to meet OEM specifications for fit and function. The use of aluminum cores and plastic tanks ensures corrosion resistance and durability under normal operating conditions. While specific warranty details are not provided here, CSF products typically come with manufacturer-backed quality assurance to support reliable performance in Buick Verano vehicles.
