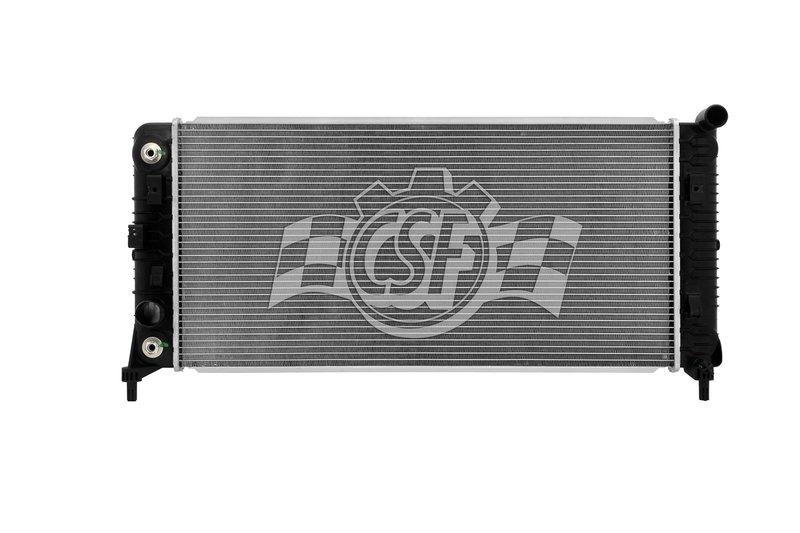

CSF 3583 Radiator
| Brand | CSF 3583 |
|---|---|
| Box Height (in) | 5 1/2 |
| Box Length (in) | 36 9/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 19 5/8 |
| Cap Included | No |
| Core Length | 29 3/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 14 1/2 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 5/16 Right |
| Inlet Length (in) | 14 5/8 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 11 1/2 (high-efficiency Plate Type) |
| Outlet Diameter | 1 9/16 Left |
| Outlet Length (in) | 14 5/8 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Chevrolet · 8 vehicles |
OE-style design. Plastic tanks and aluminum core match the original construction.
Cross-flow layout. Promotes efficient coolant flow through the radiator.
Quick-connect fittings. Includes oil cooler connections for easier installation.
Cross-references APDI 8013326, BBB Industries 13326 and 22809024 for the same application. See all 4.
CSF 3583 Radiator for Impala Cooling Service
CSF 3583 is an OE-style radiator built with a plastic tank and aluminum core for select Chevrolet Impala applications. It is engineered for direct replacement use in 2012-2016 Chevrolet Impala and 2014-2016 Chevrolet Impala Limited models with the listed cooling-system configuration.
Key Features
- Brand line: 1-row plastic tank aluminum core construction
- Cross-flow radiator design
- Aluminum core with plastic tanks
- Core thickness: 7/8 in.
- Core dimensions: 29 3/8 in. length, 14 1/2 in. width
- Inlet: 1 5/16 in. right side
- Outlet: 1 9/16 in. left side
- High-efficiency plate-type oil cooler with quick-connect fittings
- Cap not included
Product Details
This CSF radiator part number 3583 is built to match the OE-style layout used on select Chevrolet Impala and Chevrolet Impala Limited vehicles. CSF manufactures radiators to high-performance standards, with engineering validation that includes wind-tunnel testing and broad application coverage across many vehicle platforms. The plastic tank and aluminum core design supports factory-style fitment for cooling-system replacement work where the original radiator has leaked, clogged, or lost efficiency. This part cross-references APDI 8013326 for the same application.
Common Cooling Issues It Can Address
- Coolant leaks from cracked or aged radiator tanks
- Restricted coolant flow from internal corrosion or sediment buildup
- Overheating caused by reduced heat transfer efficiency
- Damaged inlet or outlet connections on the original radiator
- Oil cooler connection issues on equipped vehicles
Installation Notes and Fitment
Fits 2012-2016 Chevrolet Impala, N/A; OE Style Design; Exc. Police Vehicles; 1 Row Plastic Tank Aluminum Core. Fits 2014-2016 Chevrolet Impala Limited, N/A; Exc. Police Vehicles; 1 Row Plastic Tank Aluminum Core. Verify inlet and outlet orientation, core dimensions, and oil cooler fittings before installation. Transfer only the components required by your vehicle configuration and confirm the cooling system is properly bled after installation.
Quality Assurance
CSF radiators are manufactured in ISO/TSO-certified facilities and are engineered for cooling performance validation. The brand has supplied radiators worldwide for decades and offers extensive model coverage across the automotive market.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Chevrolet | Impala | 3.6L | V6 | N/A | OE Style Design; Exc. Police Vehicles; 1 Row Plastic Tank Aluminum Core |
| 2016 | Chevrolet | Impala Limited | 3.6L | V6 | N/A | Exc. Police Vehicles; 1 Row Plastic Tank Aluminum Core |
| 2015 | Chevrolet | Impala | 3.6L | V6 | N/A | OE Style Design; Exc. Police Vehicles; 1 Row Plastic Tank Aluminum Core |
| 2015 | Chevrolet | Impala Limited | 3.6L | V6 | N/A | Exc. Police Vehicles; 1 Row Plastic Tank Aluminum Core |
| 2014 | Chevrolet | Impala | 3.6L | V6 | N/A | OE Style Design; Exc. Police Vehicles; 1 Row Plastic Tank Aluminum Core |
| 2014 | Chevrolet | Impala Limited | 3.6L | V6 | N/A | Exc. Police Vehicles; 1 Row Plastic Tank Aluminum Core |
| 2013 | Chevrolet | Impala | 3.6L | V6 | N/A | OE Style Design; Exc. Police Vehicles; 1 Row Plastic Tank Aluminum Core |
| 2012 | Chevrolet | Impala | 3.6L | V6 | N/A | OE Style Design; Exc. Police Vehicles; 1 Row Plastic Tank Aluminum Core |
