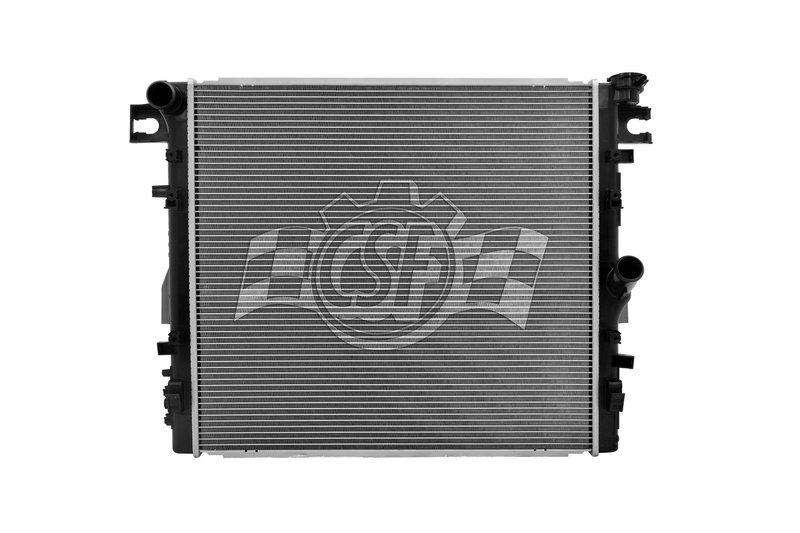

CSF 3592 Radiator
Overview of CSF 3592 Radiator for Jeep Wrangler JK
The CSF 3592 radiator is designed specifically for Jeep Wrangler and Wrangler JK models, providing reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in demanding driving conditions.
- Core Thickness: 7/8 inch
- Core Width: 20 5/16 inches
- Core Length: 21 15/16 inches
- Core Material: Aluminum
- Tank Material: Plastic
- Inlet Diameter: 1 1/2 inches (left side)
- Outlet Diameter: 1 1/2 inches (right side)
- Cross flow design for effective coolant circulation
- Single core row configuration
- Cap not included (compatible with CSF cap number 4539)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines lightweight aluminum cores with OE-style plastic tanks to balance durability and cost-effectiveness. This product line is engineered to meet original equipment manufacturer specifications, ensuring proper fit and function for vehicles like the Jeep Wrangler JK. The single-row core design supports efficient cooling while maintaining a compact profile suitable for factory engine bays.
Product Description and Specifications
The CSF 3592 radiator features a 7/8 inch thick aluminum core measuring 20 5/16 inches wide by 21 15/16 inches long. The plastic tanks are designed to withstand typical operating temperatures and pressures while reducing overall weight. The radiator uses a cross flow design, allowing coolant to move horizontally through the core for improved heat exchange. Both the inlet and outlet have a 1 1/2 inch diameter, positioned on the left and right sides respectively, matching the original equipment layout for Jeep Wrangler and Wrangler JK models. This radiator does not include a cap but is compatible with CSF cap number 4539.
Common Applications and Problem Solving
- Replacement for leaking or damaged radiators in Jeep Wrangler and Wrangler JK vehicles
- Improves engine cooling efficiency to prevent overheating
- Restores proper coolant flow with OE-style inlet and outlet dimensions
- Addresses radiator core corrosion or clogging issues
- Suitable for vehicles requiring a single-row aluminum core radiator
Installation Notes and Tips
- Ensure compatibility with Jeep Wrangler or Wrangler JK before installation
- Verify inlet and outlet hose sizes match 1 1/2 inch diameter connections
- Use the recommended CSF radiator cap number 4539 for proper sealing
- Inspect mounting points and hardware for secure fitment
- Flush cooling system before installing new radiator to prevent contamination
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM standards, using high-quality aluminum cores and durable plastic tanks. The 3592 radiator is designed to provide reliable cooling performance under normal operating conditions. While specific warranty details are not provided here, CSF products typically come with manufacturer-backed warranties covering defects in materials and workmanship. It is recommended to consult the product documentation or CSF directly for exact warranty terms.
| Brand | CSF |
| Part Number | 3592 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 7 13/16 |
| Box Length (in) | 30 7/8 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 23 3/8 |
| Cap Included | No |
| Core Length | 21 15/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 20 5/16 |
| Csf Cap Number | 4539 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Left |
| Inlet Length (in) | 20 11/16 |
| Inlet Width (in) | 1 7/16 |
| Outlet Diameter | 1 1/2 Right |
| Outlet Length (in) | 20 11/16 |
| Outlet Width (in) | 1 7/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 13 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2018 | Jeep | Wrangler | 3.6L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2018 | Jeep | Wrangler JK | 3.6L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2017 | Jeep | Wrangler | 3.6L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2016 | Jeep | Wrangler | 3.6L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2015 | Jeep | Wrangler | 3.6L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2014 | Jeep | Wrangler | 3.6L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2013 | Jeep | Wrangler | 3.6L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2012 | Jeep | Wrangler | 3.6L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2011 | Jeep | Wrangler | 3.8L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2010 | Jeep | Wrangler | 3.8L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2009 | Jeep | Wrangler | 3.8L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2008 | Jeep | Wrangler | 3.8L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2007 | Jeep | Wrangler | 3.8L | V6 | N/A | OE Style Design; Use Small, 18 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
