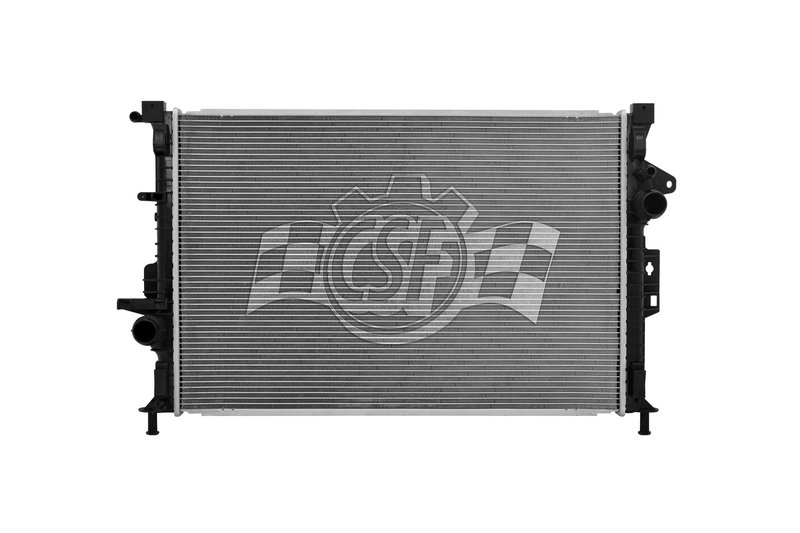

CSF 3593 Radiator

Overview of CSF 3593 Radiator for Ford Escape and Transit Connect

The CSF 3593 radiator is designed specifically for Ford Escape and Transit Connect models, providing reliable cooling performance. Featuring a durable aluminum core and plastic tanks, this radiator ensures efficient heat dissipation and long-lasting operation.

• Core thickness: 7/8 inch
• Core width: 17 11/16 inches
• Core length: 26 1/2 inches
• Aluminum core with plastic tanks
• Cross flow design for optimal coolant flow
• Inlet and outlet diameter: 1 1/2 inches (right inlet, left outlet)
• Single core row construction
• OEM style quick-connect inlet

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core line combines lightweight plastic tanks with a robust aluminum core to balance durability and heat transfer efficiency. This product line is engineered to meet OEM specifications, featuring a single core row design that supports effective cooling in compact engine bays. The quick-connect inlet design simplifies installation and maintenance for compatible Ford vehicles.

Technical Description of the CSF 3593 Radiator

This radiator incorporates a 7/8 inch thick aluminum core measuring 17 11/16 inches wide and 26 1/2 inches long, optimized for cross flow coolant movement. The plastic tanks reduce weight while maintaining structural integrity. The inlet and outlet ports are both 1 1/2 inches in diameter, positioned on the right and left sides respectively, facilitating straightforward hose connections. The single core row design supports efficient heat exchange suitable for the cooling demands of Ford Escape and Transit Connect models.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiators in Ford Escape and Transit Connect
• Resolves overheating caused by clogged or inefficient radiator cores
• Addresses coolant leaks from cracked plastic tanks
• Improves cooling system performance in vehicles with OEM style radiators
• Suitable for vehicles requiring a cross flow radiator design

Installation Notes and Tips

• Compatible with Ford Escape and Transit Connect models; verify fitment before installation
• Ensure proper connection of 1 1/2 inch inlet and outlet hoses on right and left sides
• Use OEM style quick-connect fittings for secure hose attachment
• Check for proper coolant levels and system pressure after installation
• Installation may require draining the cooling system and removal of the old radiator

Quality Assurance and Warranty Information

The CSF 3593 radiator is manufactured to meet OEM standards, featuring high-quality aluminum core construction and durable plastic tanks. This radiator is free of hazardous materials and designed for long-term reliability. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
