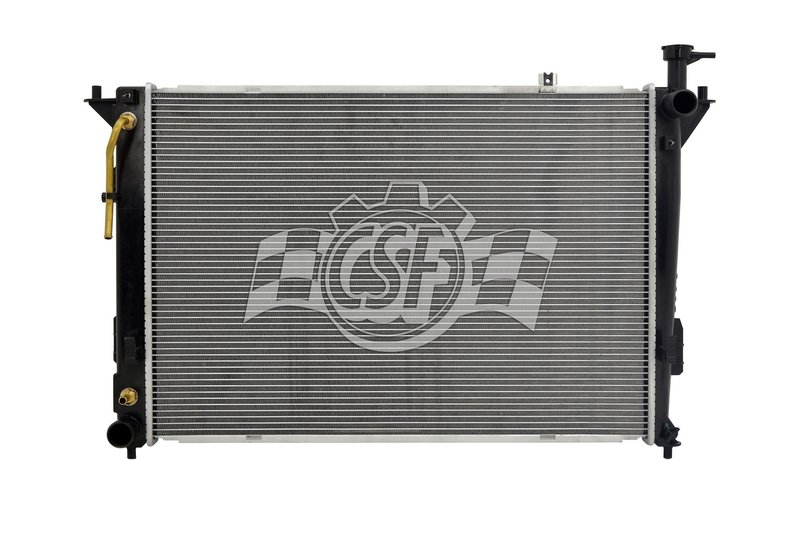

CSF 3615 Radiator

Overview of CSF 3615 Radiator for Hyundai and Kia Vehicles

The CSF 3615 radiator is designed specifically for Hyundai Santa Fe, Santa Fe Sport, Santa Fe XL, and Kia Sorento models. Featuring a durable aluminum core with plastic tanks, this radiator provides reliable cooling performance tailored to these vehicles' requirements.

• Core thickness: 7/8 inch
• Core width: 18 1/4 inches
• Core length: 26 3/8 inches
• Aluminum core with plastic tanks
• Cross flow design for efficient heat dissipation
• Inlet and outlet diameter: 1 3/8 inches (right inlet, left outlet)
• Single row radiator core
• Includes high-efficiency plate type oil cooler (14 9/16 inches)

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core product line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This design supports effective heat transfer while maintaining compatibility with original equipment specifications. The single-row core thickness and cross flow configuration optimize cooling for vehicles like the Hyundai Santa Fe and Kia Sorento.

Technical Description of CSF Part Number 3615

This radiator features a 7/8 inch thick aluminum core measuring 18 1/4 inches wide and 26 3/8 inches long. The plastic tanks are engineered to OEM standards, ensuring proper fit and function. The cross flow design allows coolant to pass horizontally through the core, improving heat exchange efficiency. Both the inlet and outlet have a diameter of 1 3/8 inches, positioned on the right and left sides respectively. Additionally, the integrated high-efficiency plate type oil cooler enhances engine cooling performance.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiators in Hyundai Santa Fe and Kia Sorento models
• Resolves overheating caused by clogged or inefficient radiator cores
• Addresses coolant flow restrictions due to corrosion or core damage
• Improves engine temperature regulation in vehicles with original radiator failure
• Supports proper oil cooling with integrated plate type oil cooler

Installation Notes and Tips

When installing the CSF 3615 radiator, ensure compatibility with Hyundai Santa Fe, Santa Fe Sport, Santa Fe XL, and Kia Sorento models. Verify inlet and outlet hose connections match the 1 3/8 inch diameter specifications. The radiator does not include a cap; use the appropriate CSF cap number 4503 or the OEM equivalent. Properly bleed the cooling system after installation to prevent air pockets and ensure optimal performance.

Quality Assurance and Warranty Information

CSF radiators are manufactured to meet OEM standards, using high-quality aluminum cores and durable plastic tanks. The CSF 3615 radiator is free of hazardous materials and designed for long-term reliability. While specific warranty details are not provided here, CSF products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
