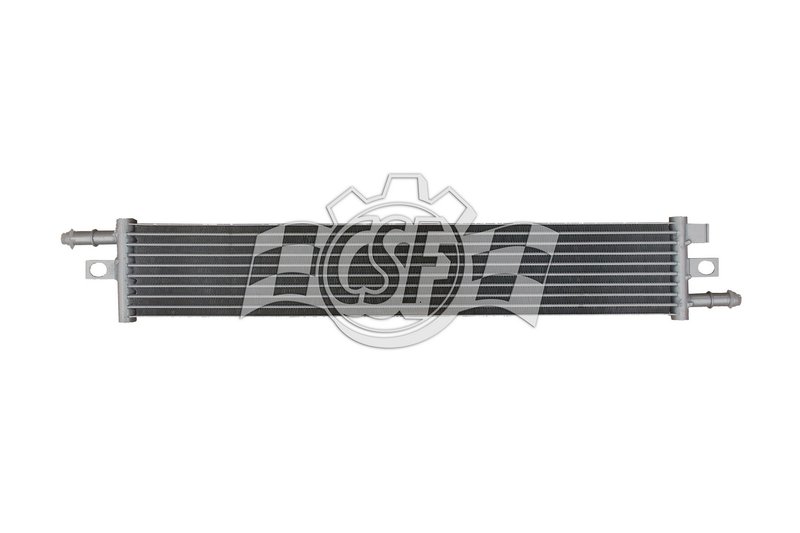

CSF 3627 Drive Motor Inverter Cooler

Overview of CSF 1 Row All Aluminum Drive Motor Inverter Cooler

The CSF 3627 Drive Motor Inverter Cooler is engineered for reliable cooling performance in select Buick and Chevrolet models. Designed with a parallel flow construction and all-aluminum core and tanks, this cooler supports efficient heat dissipation for drive motor inverter systems.

• Parallel flow construction for optimized coolant flow
• All-aluminum core and tank materials for durability and corrosion resistance
• Core dimensions approximately 24 inches in length and 4 9/16 inches in width
• Single radiator core row design (1 Row All Aluminum)
• Cross flow type with 5/8 inch inlet (right) and outlet (left) diameters
• OEM style design matching original equipment specifications

Detailed Product Description

The CSF 3627 Drive Motor Inverter Cooler features a parallel flow core construction that enhances coolant distribution and heat transfer efficiency. Its core thickness ranges between 5/8 and 10/16 inches, with a core width near 4 9/16 inches and a length close to 24 inches, providing a compact yet effective cooling surface. Both the core and tanks are made from aluminum, which offers lightweight strength and resistance to corrosion, essential for long-term durability in automotive cooling systems.

This cooler is designed as a cross flow type, allowing coolant to pass horizontally through the core, which is beneficial for maintaining consistent operating temperatures. The inlet and outlet tubes measure 5/8 inch in diameter, positioned on the right and left sides respectively, facilitating straightforward integration into the vehicle’s cooling circuit.

As part of CSF’s 1 Row All Aluminum product line, this cooler aligns with OEM style specifications, ensuring compatibility and performance for drive motor inverter cooling applications. The single-row core design balances cooling capacity with space efficiency, making it suitable for the specified Buick and Chevrolet models.

Compatible Vehicles and Applications

• Buick Allure
• Buick LaCrosse
• Chevrolet Impala
• Chevrolet Malibu
• Buick Regal

This part is specifically compatible with the above Buick and Chevrolet models, providing a direct replacement for the drive motor inverter cooler to maintain optimal inverter temperatures and system reliability.

Common Issues Addressed by CSF 3627 Drive Motor Inverter Cooler

• Overheating of the drive motor inverter system
• Coolant leaks due to corrosion or tank failure
• Reduced cooling efficiency from clogged or damaged cores
• Inadequate heat dissipation causing inverter performance issues
• OEM cooler replacement for maintaining factory cooling standards

Installation Notes and Tips

• Ensure proper alignment of 5/8 inch inlet (right) and outlet (left) tubes during installation
• Verify compatibility with vehicle model and year before installation
• Use OEM style fittings and clamps to secure connections
• Inspect surrounding components for wear or damage during replacement
• Flush cooling system if necessary to prevent contamination

Quality Assurance and Warranty

The CSF 3627 Drive Motor Inverter Cooler is manufactured to meet OEM specifications with high-quality aluminum materials for core and tanks. This part is free of hazardous materials and designed for durability and corrosion resistance. While specific warranty details are not provided, CSF products typically adhere to industry standards for reliability and performance in automotive cooling applications.
