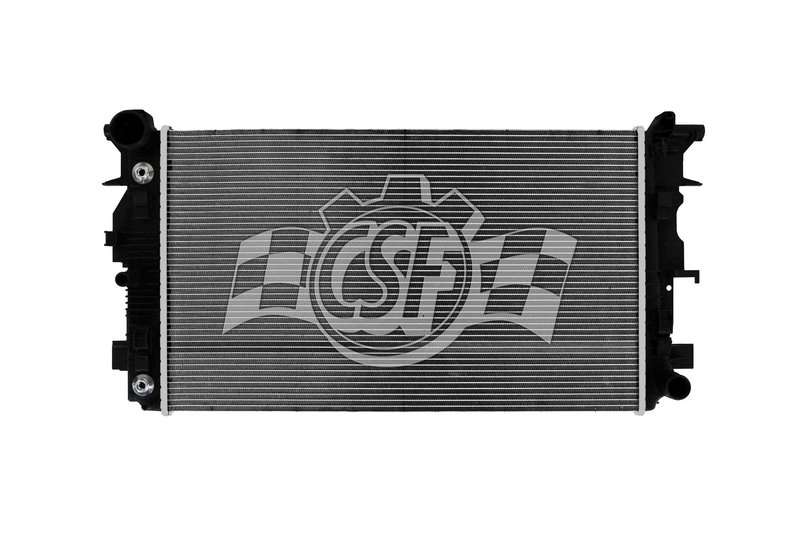

CSF 3660 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3660) is engineered for reliable cooling performance in Dodge Sprinter 2500 and Sprinter 3500 models. Designed with a durable aluminum core and plastic tanks, this radiator supports efficient heat dissipation and vehicle engine protection.
- Core thickness: 1 1/4 inches
- Core width: 16 inches
- Core length: 26 3/4 inches
- Aluminum core with plastic tanks
- Cross flow design for optimized coolant flow
- Inlet diameter: 1 3/8 inches (left side)
- Outlet diameter: 1 11/16 inches (right side)
- Single core row configuration
- Includes a 12-inch high-efficiency plate type oil cooler
- Cap not included
Detailed Product Description
This radiator features a 1 1/4 inch thick aluminum core that measures 16 inches wide and 26 3/4 inches long, providing effective heat exchange for the engine cooling system. The plastic tanks are designed to be OEM style, ensuring compatibility and durability. The cross flow design enhances coolant circulation, improving overall cooling efficiency. The inlet and outlet diameters are sized specifically for the Dodge Sprinter 2500 and 3500, with the inlet on the left side and the outlet on the right side, both measuring approximately 1 3/8 and 1 11/16 inches respectively. Additionally, the integrated 12-inch high-efficiency plate type oil cooler supports engine oil temperature regulation.
The CSF 1 Row Plastic Tank Aluminum Core product line focuses on combining lightweight plastic tanks with a robust aluminum core to balance durability and heat dissipation. This design approach is reflected in Part Number 3660, which is tailored for commercial vehicle applications requiring reliable cooling under demanding conditions.
Compatible Vehicles and Applications
- Dodge Sprinter 2500 radiator replacement
- Dodge Sprinter 3500 cooling system upgrade
- Radiator for Sprinter 2500 with cross flow cooling needs
- Sprinter 3500 radiator with integrated oil cooler
- OEM style radiator for Dodge Sprinter models
Installation Notes and Tips
- Ensure compatibility with Dodge Sprinter 2500 or 3500 before installation
- Verify inlet and outlet hose sizes match vehicle specifications (1 3/8 inch inlet, 1 11/16 inch outlet)
- Use proper coolant and follow manufacturer torque specifications for mounting
- Check for secure connections on quick-connect oil cooler fittings
- Cap not included; reuse existing radiator cap or purchase separately
Quality Assurance and Warranty
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3660) is manufactured to meet OEM standards for fit and function. The aluminum core and plastic tank construction provide corrosion resistance and durability suitable for commercial vehicle use. While specific warranty details are not provided here, CSF products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
| Brand | CSF |
| Part Number | 3660 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 1/2 |
| Box Length (in) | 35 9/16 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 19 13/16 |
| Cap Included | No |
| Core Length | 26 3/4 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Left |
| Inlet Length (in) | 16 1/16 |
| Inlet Width (in) | 1 11/16 |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Diameter | 1 11/16 Right |
| Outlet Length (in) | 16 1/16 |
| Outlet Width (in) | 1 11/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Dodge | Sprinter 2500 | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2009 | Dodge | Sprinter 3500 | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Dodge | Sprinter 2500 | 3.5L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Dodge | Sprinter 2500 | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Dodge | Sprinter 3500 | 3.5L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Dodge | Sprinter 3500 | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Dodge | Sprinter 2500 | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Dodge | Sprinter 2500 | 3.5L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Dodge | Sprinter 3500 | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Dodge | Sprinter 3500 | 3.5L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
