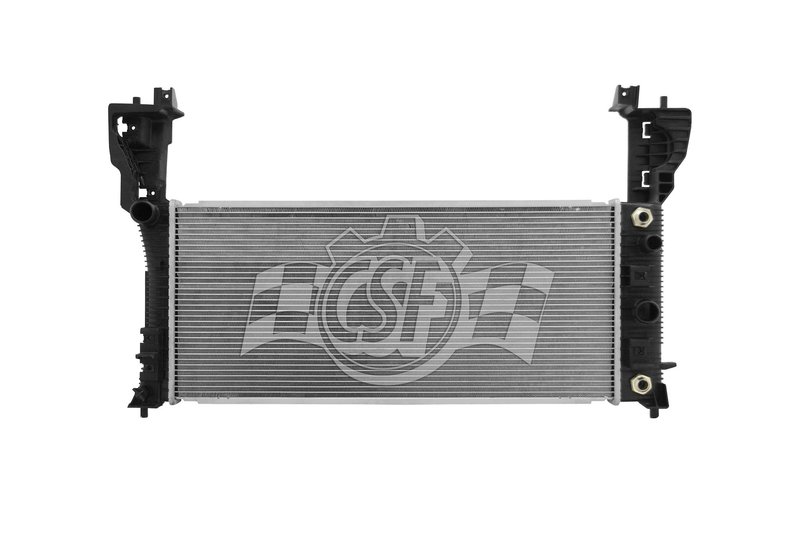

CSF 3665 Radiator
| Brand | CSF 3665 |
|---|---|
| Core Thickness | 7/8 |
| Core Width | 11 5/8 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 26 5/16 |
| Inlet Diameter | 1 3/8 left |
| Outlet Diameter | 1 3/8 right |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 7 5/8 |
| Box Length (in) | 36 3/4 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 22 9/16 |
| Hazardous Material | No |
| Inlet Length (in) | 12 1/4 |
| Inlet Width (in) | 1 3/4 |
| Oil Cooler (in) | 10 1/16 (high-efficiency plate type) |
| Outlet Length (in) | 12 1/4 |
| Outlet Width (in) | 1 3/4 |
| Tech Note | O.e.m. style plastic tanks & aluminum core;with quick-connect oil |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Ford · 3 vehicles |
OE-style design. Plastic tanks and an aluminum core mirror the original radiator layout.
Cross-flow construction. Promotes efficient coolant movement through the core.
Quick-connect fittings. Includes oil cooler connections for easier installation.
Cross-references Global Parts Distributors LLC 13356, CT4Z 8005A and FO3010320 for the same application. See all 3.
OE-Style Radiator for Ford Edge
This CSF radiator is built for 2012-2014 Ford Edge applications with an OE-style plastic tank and aluminum core design. It uses a cross-flow layout with quick-connect oil cooler fittings to match the original cooling system configuration.
Key Features
- Fits 2012-2014 Ford Edge
- CSF Part Number: 3665
- 1-row radiator core design
- Plastic tank and aluminum core construction
- Cross-flow configuration
- Inlet diameter: 1 3/8 in. left
- Outlet diameter: 1 3/8 in. right
- High-efficiency plate-type oil cooler: 10 1/16 in.
- OE-style plastic tanks with aluminum core
- Quick-connect oil cooler fittings
Product Details
CSF 3665 is engineered as a direct-fit radiator for the Ford Edge, 2012-2014, with dimensions and connection points arranged for OE-style replacement. The aluminum core measures 26 5/16 in. long and 11 5/8 in. wide, with a 7/8 in. core thickness, while the plastic tanks help replicate the factory-style cooling system layout. CSF manufactures radiators to high-performance standards and validates cooling performance through wind tunnel testing, drawing on decades of global radiator production experience.
This part cross-references Global Parts Distributors LLC 13356 for the same application.
Common Cooling System Issues Addressed
- Leaking or cracked radiator tanks
- Restricted coolant flow from an aging core
- Overheating caused by reduced heat transfer
- Damaged or worn oil cooler fittings
- Replacement needs after corrosion or physical damage
Installation Notes and Tips
Verify inlet and outlet orientation before installation: inlet is on the left and outlet is on the right. This radiator uses quick-connect oil cooler fittings and does not include a cap. Confirm all hose connections, cooler lines, and mounting points match the original Ford Edge radiator before filling and bleeding the cooling system.
Quality Assurance
CSF manufactures radiators in ISO/TSO-certified facilities and tests designs for cooling performance validation. Part number 3665 is built to OE-style specifications for the 2012-2014 Ford Edge cooling system.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Ford | Edge | 2.0L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2013 | Ford | Edge | 2.0L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2012 | Ford | Edge | 2.0L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
