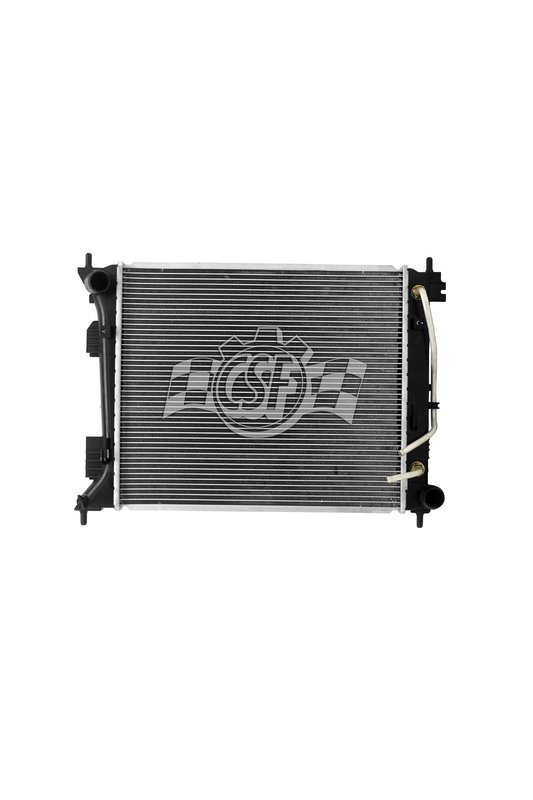

CSF 3679 Radiator
| Brand | CSF 3679 |
|---|---|
| Box Height (in) | 5 1/2 |
| Box Length (in) | 25 5/16 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 19 13/16 |
| Cap Included | No |
| Core Length | 18 1/8 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 15 5/16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Left |
| Inlet Length (in) | 15 13/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 11 1/2 (high-efficiency Plate Type) |
| Outlet Diameter | 1 3/8 Right |
| Outlet Length (in) | 15 13/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Hyundai · 5 vehicles |
OE-style construction. Plastic tanks and an aluminum core match the original design.
Cross-flow design. Engineered for efficient cooling performance validation.
Quick-connect outlet pipe. Simplifies installation with a secure, factory-style connection.
Cross-references BBB Industries 13415, 25310-2V750 and HY3010184 for the same application. See all 3.
OE-Style Cooling for Hyundai Veloster
This CSF radiator is built for 2013-2017 Hyundai Veloster applications with an OE-style plastic tank and aluminum core design. Part number 3679 is engineered for direct-fit cooling performance, with a cross-flow layout and quick-connect outlet pipe for a factory-style replacement.
Key Features
- Fits 2013-2017 Hyundai Veloster
- CSF part number 3679
- 1-row cross-flow radiator design
- Plastic tank and aluminum core construction
- Core thickness: 1 1/4 in.
- Core dimensions: 18 1/8 in. length x 15 5/16 in. width
- Inlet diameter: 1 3/8 in. left
- Outlet diameter: 1 3/8 in. right
- Includes 11 1/2 in. high-efficiency plate-type oil cooler
- O.E.M.-style plastic tanks with aluminum core and quick-connect outlet pipe
Product Details
CSF 3679 is a radiator designed around factory-style dimensions and connections for the Hyundai Veloster. The aluminum core helps transfer heat efficiently, while the plastic tanks follow the original equipment layout for straightforward replacement. CSF manufactures radiators to high-performance standards and validates cooling performance through wind tunnel testing, with broad production experience across thousands of radiator models.
This part cross-references BBB Industries 13415 for the same application.
Common Cooling Issues Addressed
- Overheating caused by a leaking or restricted radiator
- Coolant loss from cracked plastic tanks or aged seams
- Reduced heat rejection from a clogged or damaged core
- Fitment problems from non-OE-style replacement parts
- Transmission or engine cooling concerns tied to radiator wear
Installation Notes
Verify inlet and outlet orientation before installation: inlet is 1 3/8 in. on the left and outlet is 1 3/8 in. on the right. This radiator uses a cross-flow configuration and an OE-style quick-connect outlet pipe, so matching the original hose routing and mounting points is important for proper installation on the Hyundai Veloster. Cap is not included.
Quality Assurance
CSF radiators are produced in ISO/TSO-certified factories and built to controlled manufacturing standards. The brand has supplied radiators worldwide for more than 50 years and has sold over 30 million units across its product range.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Hyundai | Veloster | Automatic Dual Clutch | 1.6L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2016 | Hyundai | Veloster | Automatic Dual Clutch | 1.6L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2015 | Hyundai | Veloster | Automatic | 1.6L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2014 | Hyundai | Veloster | Automatic | 1.6L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2013 | Hyundai | Veloster | Automatic | 1.6L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
