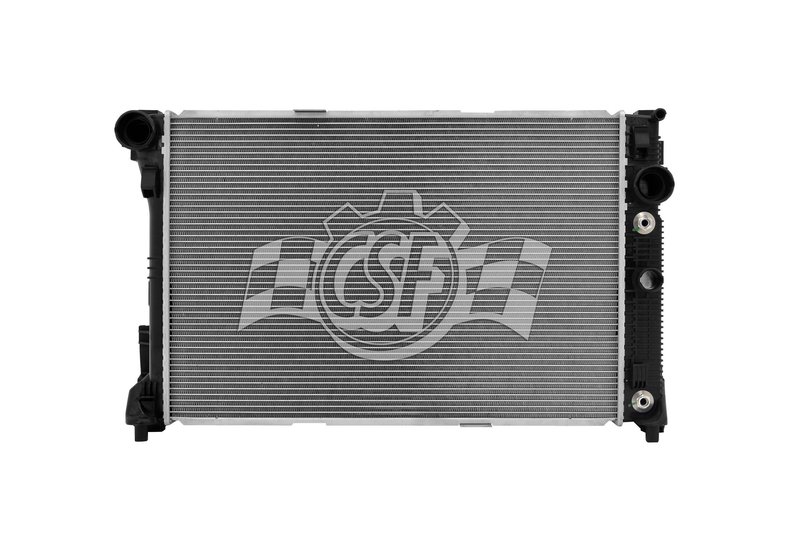

CSF 3692 Radiator
OE Quality 60-Day Returns
CSF
 1 Row Plastic Tank Aluminum Core

CSF 3692 Radiator

Brand CSF 3692
Box Height (in) 6 4/16
Box Length (in) 32 7/16
Box Weight (lbs) 13
Box Width (in) 21
Cap Included No
Core Length 25 3/16
Core Material Aluminum
Core Thickness 1 1/4
Core Width 17
Down Flow Or Cross Flow Type Cross Flow
Hazardous Material No
Inlet Diameter 1 13/16 Left
Inlet Length (in) 17 7/16
Inlet Width (in) 2 1/16
Oil Cooler (in) 10 1/16 (high-efficiency Plate Type)
Outlet Diameter 1 13/16 Right
Outlet Length (in) 17 7/16
Outlet Width (in) 2 1/16
Radiator Core Row Quantity 1
Tank Material Plastic
Tech Note O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe & quick-connect oil cooler fittings.
Product line 1 Row Plastic Tank Aluminum Core
Fits Mercedes-Benz · 36 vehicles

OE-style design. Plastic tanks and an aluminum core match the original radiator layout.

Cross-flow construction. Promotes efficient coolant flow for steady heat transfer.

Quick-connect fittings. Inlet, outlet, and oil cooler connections simplify installation.

Cross-references Bosch 13498, 204 500 3603 and MB3010174 for the same application. See all 3.

$146.52Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $146.52
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

OE-Style Radiator for Mercedes-Benz Cooling Service

The CSF 3692 is a cross flow radiator built with a plastic tank and aluminum core in an OE-style layout. It is engineered for direct replacement use on select Mercedes-Benz applications, including E350, E550, C300, C350, CLS550, and E300 models.

CSF designs and validates its radiators for cooling performance, with manufacturing backed by ISO/TSO-certified factories and long-running global production experience. The 3692 follows the original equipment style with quick-connect inlet and outlet pipe connections and integrated quick-connect oil cooler fittings.

Key Features

  • Part number: CSF 3692
  • 1-row radiator design
  • Plastic tank and aluminum core construction
  • Cross flow configuration
  • Core thickness: 1 1/4 in.
  • Core dimensions: 17 in. wide x 25 3/16 in. long
  • 1 13/16 in. left inlet and 1 13/16 in. right outlet
  • High-efficiency plate-type oil cooler, 10 1/16 in.
  • OE-style quick-connect inlet/outlet pipe and oil cooler fittings

Product Details

This radiator is built around an OE-style plastic tank and aluminum core design to match the factory cooling layout on the listed Mercedes-Benz vehicles. The cross flow construction, single-row core, and integrated oil cooler support factory-style thermal management for daily driving and repair work. If you are replacing a leaking or restricted radiator on a Mercedes-Benz E350, C350, or CLS550, CSF 3692 provides the correct style of replacement for the original cooling system architecture.

This part cross-references Bosch 13498 for the same application.

What It Helps Address

  • Coolant leaks from cracked or aged radiator tanks
  • Restricted coolant flow from internal buildup or corrosion
  • Overheating caused by reduced heat transfer efficiency
  • Transmission or engine cooling concerns tied to radiator oil cooler function
  • Factory-fit replacement needs after radiator damage or failure

Installation Notes and Tips

Verify inlet and outlet orientation, oil cooler connection style, and vehicle-specific fitment before installation. This radiator uses quick-connect inlet and outlet pipe fittings and quick-connect oil cooler fittings, so the existing connection style must match the vehicle application. Confirm the vehicle is one of the listed Mercedes-Benz models and years, including 2010-2016 E350, 2011-2014 E550, 2013-2014 C300, 2012-2014 C350, 2012-2014 CLS550, and 2012-2013 E300.

Quality Assurance

CSF manufactures radiators in ISO/TSO-certified facilities and validates cooling performance through laboratory testing. The brand has supplied radiators worldwide for decades and produces a broad range of OE-style cooling components for passenger vehicles.

Related reading

This part fits 36 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypeDrive TypeLitersCylindersFuel TypePositionNotes
2016Mercedes-BenzE350———3.5LV6—N/A1 Row Plastic Tank Aluminum Core
2014Mercedes-BenzC300———3.5LV6—N/A1 Row Plastic Tank Aluminum Core
2014Mercedes-BenzC350———3.5LV6—N/A1 Row Plastic Tank Aluminum Core
2014Mercedes-BenzCLS550———4.7LV8—N/A1 Row Plastic Tank Aluminum Core
2014Mercedes-BenzE350—Coupe—3.5LV6—N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2014Mercedes-BenzE350—Convertible—3.5LV6—N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2014Mercedes-BenzE550—Convertible—4.7LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2014Mercedes-BenzE550—Coupe—4.7LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2014Mercedes-BenzE550—Sedan—4.7LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2013Mercedes-BenzC300—Sedan—3.5LV6—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2013Mercedes-BenzC350—Sedan—3.5LV6—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2013Mercedes-BenzCLS550———4.7LV8—N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2013Mercedes-BenzE300———3.5LV6—N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2013Mercedes-BenzE350Bluetec——3.0LV6DIESELN/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2013Mercedes-BenzE350—Convertible—3.5LV6—N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2013Mercedes-BenzE350—Coupe—3.5LV6—N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2013Mercedes-BenzE550—Coupe—4.7LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2013Mercedes-BenzE550—Sedan—4.7LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2013Mercedes-BenzE550—Convertible—4.7LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2012Mercedes-BenzC350—Sedan—3.5LV6—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2012Mercedes-BenzCLS550———4.7LV8—N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2012Mercedes-BenzE300———3.5LV6—N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2012Mercedes-BenzE350—Coupe—3.5LV6—N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2012Mercedes-BenzE350Bluetec——3.0LV6DIESELN/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2012Mercedes-BenzE350—Convertible—3.5LV6—N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2012Mercedes-BenzE550—Convertible—4.7LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2012Mercedes-BenzE550—Coupe—4.7LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2012Mercedes-BenzE550—Sedan—4.7LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2011Mercedes-BenzE350—ConvertibleRWD3.5LV6—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2011Mercedes-BenzE350—CoupeRWD3.5LV6—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2011Mercedes-BenzE350—SedanRWD3.5LV6—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2011Mercedes-BenzE550—Sedan—5.5LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2011Mercedes-BenzE550—Convertible—5.5LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2011Mercedes-BenzE550—Coupe—5.5LV8—N/AOE Style Design; Exc. PZEV; 1 Row Plastic Tank Aluminum Core
2010Mercedes-BenzE350—CoupeRWD3.5LV6—N/AOE Style Design; Exc. PZEV; From 9/28/09; 1 Row Plastic Tank Aluminum Core
2010Mercedes-BenzE350—SedanRWD3.5LV6—N/AOE Style Design; Exc. PZEV; From 10/6/09; 1 Row Plastic Tank Aluminum Core
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 13498204 500 3603MB3010174
