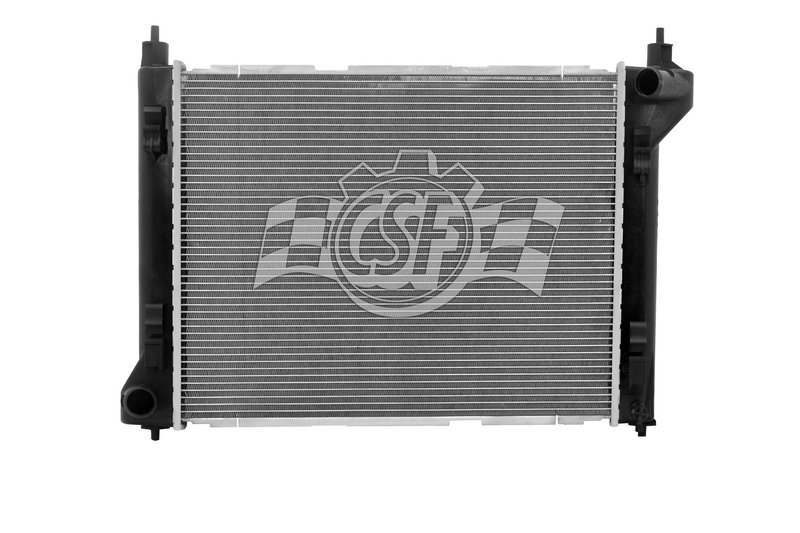

CSF 3694 Radiator
| Brand | CSF 3694 |
|---|---|
| Box Height (in) | 5 7/8 |
| Box Length (in) | 27 1/2 |
| Box Weight (lbs) | 7 |
| Box Width (in) | 21 9/16 |
| Cap Included | No |
| Core Length | 20 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Right |
| Inlet Length (in) | 16 13/16 |
| Inlet Width (in) | 1 9/16 |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 16 13/16 |
| Outlet Width (in) | 1 9/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Nissan · 7 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror the original design.
Cross-flow design. Promotes efficient coolant flow through the radiator core.
Wind tunnel tested. Validated for cooling performance in lab conditions.
Cross-references APDI 8013365, FEL-PRO 13365 and 21410-3RT0A for the same application. See all 6.
OE-Style Cooling Replacement for Sentra
This CSF radiator is built for 2013-2019 Nissan Sentra applications with an OE-style plastic tank and aluminum core design. It is a direct-fit cooling replacement for drivers looking to restore factory-style heat transfer and system layout.
Key Features
- Fits 2013-2019 Nissan Sentra
- CSF Part Number: 3694
- 1-row cross-flow radiator design
- Plastic tank and aluminum core construction
- Core thickness: 5/8 in.
- Core dimensions: 16 in. wide x 20 in. long
- Inlet diameter: 1 3/8 in. right side
- Outlet diameter: 1 3/8 in. left side
- Cap not included
Product Details
CSF 3694 is engineered as an OE-style radiator for the Nissan Sentra, using plastic tanks with an aluminum core to match the factory layout. The cross-flow configuration, single-row core, and specified inlet and outlet placement support proper coolant routing and packaging in the engine bay. CSF states its radiators are manufactured to high-performance standards, with lab validation and wind tunnel testing used to verify cooling performance across a wide range of applications.
This part cross-references APDI 8013365 and FEL-PRO 13365 for the same application. It is also listed with interchange references 21410-3RT0A and 21410-3SH0A.
What This Radiator Helps Address
- Overheating caused by a restricted or inefficient radiator core
- Coolant leaks from aging plastic tank and core assemblies
- Reduced cooling performance from corrosion or internal blockage
- Factory-fit replacement needs after radiator damage
- Cooling system service on a 2013-2019 Nissan Sentra
Installation Notes and Tips
Verify inlet and outlet orientation before installation: this unit uses a right-side inlet and left-side outlet. Confirm radiator dimensions, hose routing, and mounting points against the original part before assembly. Because the cap is not included, reuse or replace the cap as needed based on the vehicle’s cooling system specification. Always inspect hoses, clamps, and coolant condition when replacing the radiator on a Nissan Sentra.
Quality Assurance
CSF manufactures radiators in ISO/TSO-certified facilities and has supplied cooling products worldwide for more than 50 years. The brand reports extensive application coverage and performance validation testing to support consistent fit and cooling performance.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Nissan | Sentra | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2018 | Nissan | Sentra | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2017 | Nissan | Sentra | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2016 | Nissan | Sentra | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2015 | Nissan | Sentra | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2014 | Nissan | Sentra | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2013 | Nissan | Sentra | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
