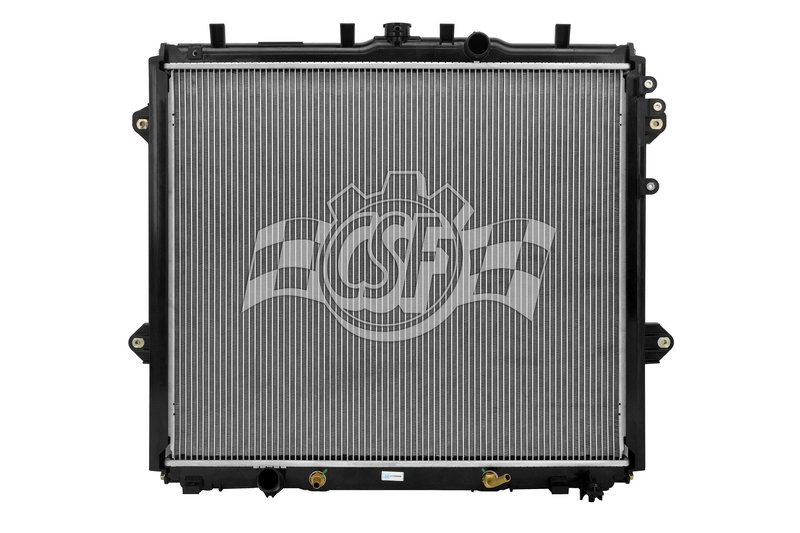

CSF 3698 Radiator
| Brand | CSF 3698 |
|---|---|
| Box Height (in) | 5 7/8 |
| Box Length (in) | 34 |
| Box Weight (lbs) | 15 |
| Box Width (in) | 29 5/8 |
| Cap Included | No |
| Core Length | 22 5/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 25 5/8 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 5/16 Right |
| Inlet Length (in) | 26 7/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 9 13/16 (high-efficiency Plate Type) |
| Outlet Diameter | 1 5/16 Left |
| Outlet Length (in) | 26 7/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Toyota · 14 vehicles |
OE-style construction. Plastic tanks and an aluminum core match the original design.
Wind-tunnel tested. Engineered to validate cooling performance in the lab.
Down-flow design. Built for efficient coolant flow through the radiator.
Cross-references Carlson 13251, Spectra Premium CU13251 and 16400 31711 for the same application. See all 8.
OE-Style Radiator for Toyota 4Runner
This CSF radiator is built for 2010-2023 Toyota 4Runner applications with an OE-style plastic tank and aluminum core design. It is engineered for direct replacement fitment and consistent cooling performance in daily driving and demanding conditions.
Key Features
- 1-row radiator design with plastic tanks and aluminum core
- Down-flow configuration for the listed Toyota 4Runner applications
- Core thickness: 7/8 in.
- Core size: 25 5/8 in. wide x 22 5/8 in. long
- Inlet diameter: 1 5/16 in. right; outlet diameter: 1 5/16 in. left
- High-efficiency plate-type oil cooler section: 9 13/16 in.
- OE-style plastic tank and aluminum core construction
- CSF Part Number 3698
Product Details
CSF 3698 is part of the brand’s 1 Row Plastic Tank Aluminum Core line, a product line focused on OE-style radiator construction with aluminum heat exchange and molded plastic end tanks. CSF manufactures a wide range of radiator applications and validates cooling performance through laboratory wind-tunnel testing. For Toyota 4Runner owners, this radiator provides the correct down-flow layout and connection sizing for the listed model years.
This part cross-references Spectra Premium CU13251 and Carlson 13251 for the same application. It is a direct-fit radiator for Toyota 4Runner cooling system service where the original radiator has aged, leaked, or lost efficiency.
What This Radiator Helps Address
- Coolant leaks from cracked or weakened radiator tanks
- Overheating caused by reduced heat transfer efficiency
- Temperature fluctuation from a restricted or deteriorated radiator core
- Cooling system service needs on high-mileage Toyota 4Runner models
- Replacement of a damaged OE-style radiator assembly
Installation Notes and Fitment
Fits 2021-2023 Toyota 4Runner, N/A. Fits 2010-2020 Toyota 4Runner, N/A; OE style design; use Micro, 16 psi cap; 1 row plastic tank aluminum core. Confirm inlet and outlet orientation before installation: inlet is on the right and outlet is on the left. The radiator is designed for the listed Toyota 4Runner applications and should be matched to the vehicle’s cooling system configuration before installation.
Quality Assurance
CSF radiators are manufactured to high-performance standards and produced by an ISO/TSO-certified factory network. The brand states that its radiator designs are engineered and wind-tunnel tested for cooling performance validation. Part Number 3698 is built to support dependable OE-style replacement service for Toyota 4Runner cooling system maintenance.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Toyota | 4Runner | 4.0L | V6 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2022 | Toyota | 4Runner | 4.0L | V6 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2021 | Toyota | 4Runner | 4.0L | V6 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2020 | Toyota | 4Runner | 4.0L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2019 | Toyota | 4Runner | 4.0L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2018 | Toyota | 4Runner | 4.0L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2017 | Toyota | 4Runner | 4.0L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2016 | Toyota | 4Runner | 4.0L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2015 | Toyota | 4Runner | 4.0L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2014 | Toyota | 4Runner | 4.0L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2013 | Toyota | 4Runner | 4.0L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2012 | Toyota | 4Runner | 4.0L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2011 | Toyota | 4Runner | 4.0L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2010 | Toyota | 4Runner | 4.0L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
