CSF 3701 Radiator
OE Quality 60-Day Returns
CSF
 1 Row Plastic Tank Aluminum Core

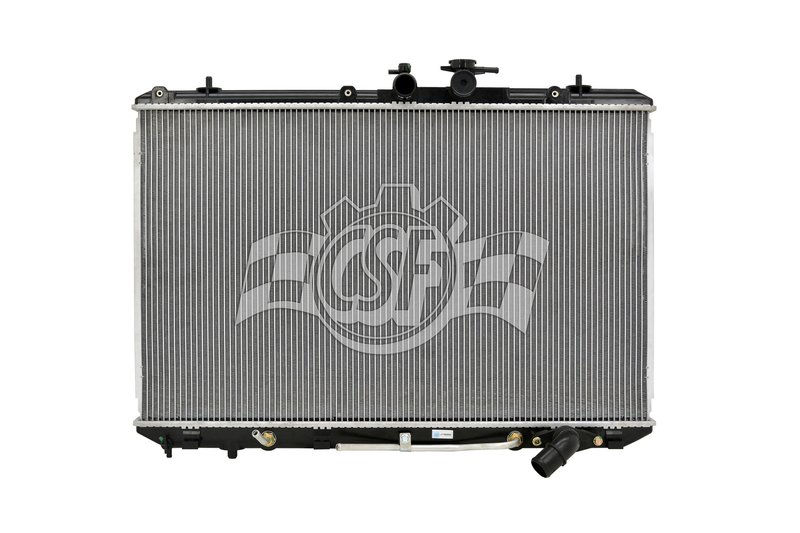

CSF 3701 Radiator

Brand CSF 3701
Core Thickness 7/8
Core Width 30 5/16
Core Material Aluminum
Tank Material Plastic
Core Length 18 11/16
Inlet Diameter 1 3/8 centre
Outlet Diameter 1 3/8 right
Down Flow Or Cross Flow Type Down flow
Radiator Core Row Quantity 1
Cap Included No
Box Height (in) 7 13/16
Box Length (in) 33
Box Weight (lbs) 13
Box Width (in) 25 7/8
Csf Cap Number 4514
Hazardous Material No
Inlet Length (in) 31
Inlet Width (in) 1 5/8
Oil Cooler (in) 14 3/4 (high-effeciency concentric type)
Outlet Length (in) 31
Outlet Width (in) 1 5/8
Tech Note O.e.m. style plastic tanks & aluminum core.
Product line 1 Row Plastic Tank Aluminum Core
Fits Toyota · 4 vehicles

OE-style construction. Plastic tanks and an aluminum core match the original design.

Wind-tunnel tested. Validated for cooling performance in lab testing.

Proven CSF quality. Built by a brand with over 50 years and 30 million radiators sold.

Cross-references BBB Industries 13122, Carlson 13123 and Partslink Numbering System TO3010328 for the same application. See all 6.

$153.17Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $153.17
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

OE-Style Cooling for Toyota Highlander

The CSF 3701 radiator is an OE-style replacement built with a 1-row aluminum core and plastic tanks for the 2010-2013 Toyota Highlander. It is engineered for direct-fit cooling performance, with down-flow construction and integrated oil cooler provisions for the listed applications.

Key Features

  • 1-row radiator design with aluminum core and plastic tanks
  • Down-flow configuration for the specified Toyota Highlander applications
  • Core thickness: 7/8 in.
  • Core size: 30 5/16 in. wide x 18 11/16 in. long
  • Inlet: 1 3/8 in. center; outlet: 1 3/8 in. right
  • High-efficiency concentric-type oil cooler section: 14 3/4 in.
  • OE-style plastic tank and aluminum core construction
  • Part number: CSF 3701

Detailed Description

CSF 3701 is a radiator assembly for 2010-2013 Toyota Highlander models, including 2010 Toyota Highlander without towing package and 2011-2013 Toyota Highlander. CSF manufactures a wide range of radiator applications and validates cooling performance through lab testing, with production built to recognized quality standards. This radiator follows an OE-style layout with plastic tanks and an aluminum core to match the factory cooling system design.

This part cross-references BBB Industries 13122 and Carlson 13123 for the same application. The CSF 3701 part number is also referenced in interchange listings for related OE-style replacement use.

What It Helps Address

  • Overheating caused by a leaking or restricted radiator
  • Coolant loss from cracked plastic tanks or aged seams
  • Reduced cooling efficiency in high-mileage Toyota Highlander cooling systems
  • Transmission or engine temperature concerns tied to radiator wear
  • Replacement needs after corrosion, impact damage, or internal blockage

Installation Notes and Tips

Verify radiator dimensions, inlet and outlet locations, and oil cooler configuration before installation. This radiator does not include a cap. The listed fitment is for 2010-2013 Toyota Highlander applications, with the 2010 model specified without towing package. Confirm hose routing and mounting points against the original unit before final assembly.

Quality Assurance

CSF states that its factories are ISO/TSO certified and that its radiators are engineered for performance validation through laboratory testing. The brand has supplied radiators worldwide for decades and manufactures a broad catalog of OE-style cooling components.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2013ToyotaHighlander2.7LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2012ToyotaHighlander2.7LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2011ToyotaHighlander2.7LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2010ToyotaHighlander2.7LL4N/AOE Style Design; w/o Towing Pkg; 1 Row Plastic Tank Aluminum Core
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
BBB Industries — 13122Carlson — 13123Partslink Numbering System — TO301032816041 0V05016041 0V061TO3010327
