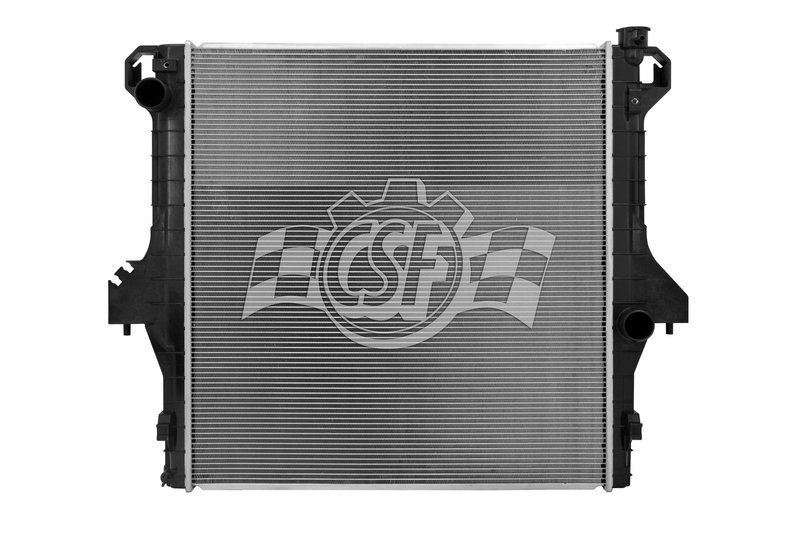

CSF 3710 Radiator
| Brand | CSF 3710 |
|---|---|
| Core Thickness | 1 5/8 |
| Core Width | 28 9/16 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 26 15/16 |
| Inlet Diameter | 2 left |
| Outlet Diameter | 2 right |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 2 |
| Cap Included | No |
| Box Height (in) | 8 1/16 |
| Box Length (in) | 40 1/8 |
| Box Weight (lbs) | 22 |
| Box Width (in) | 33 9/16 |
| Csf Cap Number | 4515 |
| Hazardous Material | No |
| Inlet Length (in) | 29 1/4 |
| Inlet Width (in) | 2 7/16 |
| Outlet Length (in) | 29 1/4 |
| Outlet Width (in) | 2 7/16 |
| Tech Note | O.e.m. style plastic tanks & aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Dodge · 17 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror the original design.
Cross-flow design. Promotes efficient coolant flow through the radiator core.
Wind tunnel tested. Validated for cooling performance in laboratory testing.
Cross-references Anchor 2711, Carlson 13094 and Spectra Premium CU2711 for the same application. See all 6.
CSF 3710 Radiator for Ram Heavy Duty Trucks
CSF 3710 is an OE-style radiator built with a plastic tank and aluminum core for select Dodge Ram 2500 and Ram 3500 applications. It uses a cross-flow design with 2-row core construction to match the factory-style layout and cooling package.
CSF’s radiator line is engineered from high-performance manufacturing standards and validated through laboratory wind-tunnel testing for cooling performance. The brand has produced radiators for decades and supplies a wide range of vehicle applications worldwide.
Key Features
- OE-style plastic tank and aluminum core construction
- Cross-flow radiator design
- 2-row core configuration
- Core thickness: 1 5/8 in.
- Inlet diameter: 2 in. left; outlet diameter: 2 in. right
- Cap not included
- Direct replacement format for factory-style cooling system service
Detailed Description
This CSF radiator, part number 3710, is designed for 2003-2009 Dodge Ram 2500 and 2003-2009 Dodge Ram 3500 applications listed below. It follows an OEM-style plastic tank and aluminum core layout, making it a practical choice for replacing a worn or leaking factory radiator while maintaining the original cooling system configuration. The cross-flow design and 2-row core help preserve the intended fitment and hose routing for Ram 2500 and Ram 3500 trucks.
This part cross-references Spectra Premium CU2711 and Anchor 2711 for the same application.
What It Helps Address
- Coolant leaks from cracked tanks or aging seams
- Restricted cooling performance from a deteriorated radiator core
- Overheating caused by a failing factory radiator
- Fitment issues when replacing an OE-style Ram 2500 or Ram 3500 radiator
- Cooling system service needs on high-mileage Dodge Ram trucks
Installation Notes and Tips
Verify inlet and outlet orientation before installation: inlet is 2 in. left and outlet is 2 in. right. Confirm radiator dimensions against the original unit, including core width, core length, and thickness, to ensure proper clearance and hose alignment. The cap is not included, so reuse or replace the correct cap separately if needed.
Compatible With 2003 Dodge Ram 2500, 2003 Dodge Ram 3500, 2004-2009 Dodge Ram 2500, and 2004-2009 Dodge Ram 3500 as listed in the fitment data.
Quality Assurance
CSF manufactures radiators to ISO/TSO-certified factory standards and validates cooling performance through laboratory testing. Part number 3710 is built as an OE-style replacement for factory-style service on Dodge Ram cooling systems.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Dodge | Ram 2500 | 6.7L | L6 | — | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2009 | Dodge | Ram 3500 | 6.7L | L6 | — | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Dodge | Ram 2500 | 6.7L | L6 | — | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Dodge | Ram 3500 | 6.7L | L6 | — | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Dodge | Ram 2500 | 6.7L | L6 | — | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Dodge | Ram 3500 | 6.7L | L6 | — | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2006 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2006 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2005 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2005 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2004 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2004 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2003 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | N/A | Upgraded Heavy Duty Core. 17% Thicker 2 Row 42mm core to vs OEM 1 Row 36mm core; 1 Row Plastic Tank Aluminum Core |
| 2003 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | N/A | Upgraded Heavy Duty Core. 17% Thicker 2 Row 42mm core to vs OEM 1 Row 36mm core; 1 Row Plastic Tank Aluminum Core |
