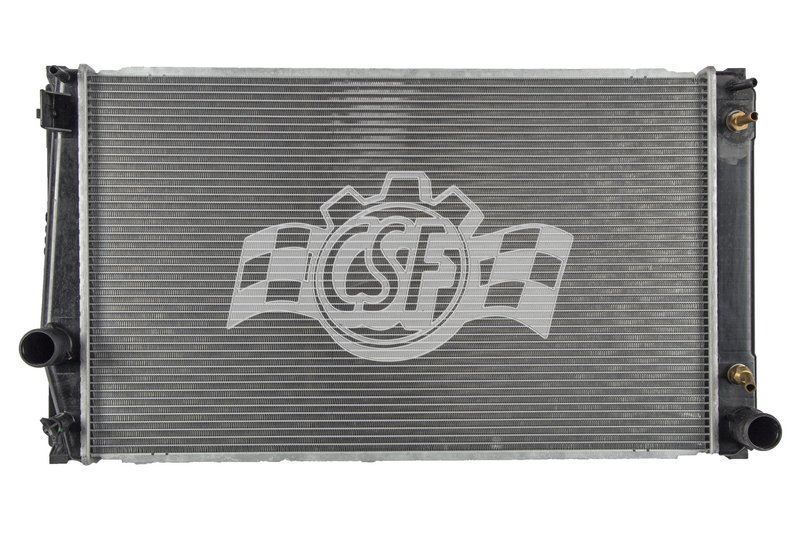

CSF 3714 Radiator

Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator

The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3714) is engineered for Toyota RAV4 models requiring reliable cooling system components. This radiator features a durable aluminum core combined with OE-style plastic tanks, designed to maintain optimal engine temperatures under various driving conditions.

• Core Thickness: 7/8 inch
• Core Width: 15 7/8 inches
• Core Length: 26 3/8 inches
• Aluminum core with plastic tanks for durability and heat dissipation
• Cross flow design for efficient coolant circulation
• Inlet and outlet diameters: 1 1/2 inches (left inlet, right outlet)
• Single core row configuration
• Includes a high-efficiency plate type oil cooler (10 13/16 inches)
• Cap not included

Detailed Product Description

This radiator is part of CSF's 1 Row Plastic Tank Aluminum Core product line, which combines lightweight aluminum cores with OE-style plastic tanks to provide a balance of performance and cost-effectiveness. The single-row core with a thickness of 7/8 inch and cross flow design ensures efficient heat exchange, helping to maintain the Toyota RAV4's engine temperature within optimal ranges. The radiator's inlet and outlet are both 1 1/2 inches in diameter, positioned on the left and right respectively, facilitating straightforward integration with the vehicle's cooling system. Additionally, the included high-efficiency plate type oil cooler enhances engine oil temperature regulation, contributing to overall engine longevity.

Applications and Problem Solving

• Replaces faulty or leaking radiators in Toyota RAV4 models
• Addresses overheating issues caused by damaged or clogged cores
• Restores proper coolant flow with cross flow design
• Improves engine oil cooling with integrated oil cooler
• Suitable for vehicles requiring a 1-row aluminum core radiator with plastic tanks

Installation Notes and Tips

• Ensure compatibility with Toyota RAV4 before installation
• Verify inlet and outlet hose sizes (1 1/2 inches) match vehicle specifications
• Check for proper mounting points and clearance due to core dimensions (26 3/8" length, 15 7/8" width)
• Use appropriate coolant and follow manufacturer torque specifications for fittings
• Cap not included; reuse existing radiator cap or purchase separately

Quality Assurance and Warranty

The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3714) is manufactured to meet OEM standards, ensuring reliable fit and function for Toyota RAV4 vehicles. The radiator core is constructed from aluminum for effective heat dissipation, while the plastic tanks are designed to resist corrosion and impact. This product is free from hazardous materials and undergoes quality control inspections to maintain performance consistency. Warranty details should be confirmed with the distributor or manufacturer.
