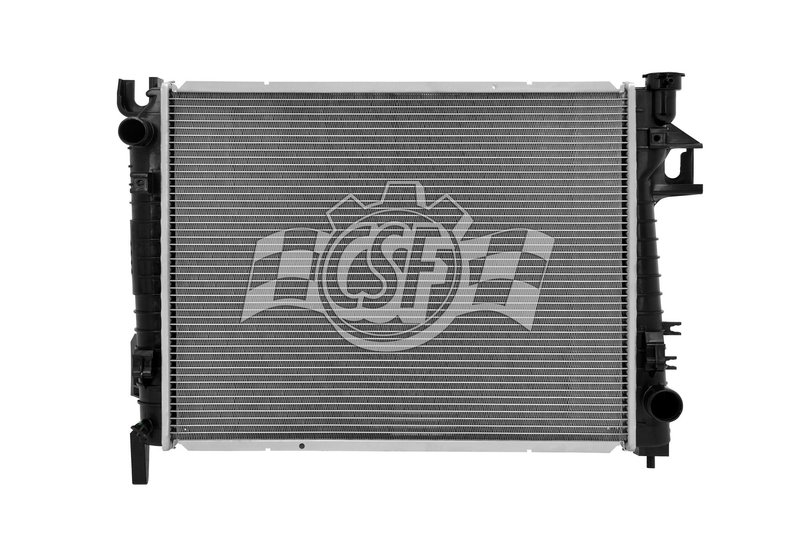

CSF 3715 Radiator

Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator

The CSF 1 Row Plastic Tank Aluminum Core Radiator, part number 3715, is designed specifically for Dodge Ram 1500 models. This radiator features a durable aluminum core combined with OE-style plastic tanks, providing reliable cooling performance for your vehicle.

• Core thickness: 1 1/4 inches
• Core width: 18 13/16 inches
• Core length: 24 inches
• Aluminum core material with plastic tanks
• Cross flow design for efficient heat dissipation
• Inlet diameter: 1 1/2 inches (left side)
• Outlet diameter: 1 3/4 inches (right side)
• Single core row configuration
• Cap not included (compatible with CSF cap number 4515)

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core product line combines lightweight aluminum cores with OE-style plastic tanks to balance durability and cost-effectiveness. This design supports efficient cooling through a single-row core, making it suitable for vehicles like the Dodge Ram 1500 that require reliable temperature regulation without added bulk.

Product Description and Specifications

This radiator (part number 3715) is engineered with a 1 1/4 inch thick aluminum core measuring 18 13/16 inches wide and 24 inches long. The cross flow design enhances coolant flow and heat exchange efficiency. The plastic tanks are molded to OEM specifications, ensuring proper fit and function. The inlet and outlet diameters are 1 1/2 inches on the left and 1 3/4 inches on the right, respectively, with inlet and outlet lengths of 19 5/16 inches and widths of 2 11/16 inches, facilitating straightforward hose connections. The radiator does not include a cap but is compatible with CSF cap number 4515.

Common Applications and Problem Resolution

• Replacement for damaged or leaking radiators on Dodge Ram 1500 models
• Resolves overheating issues caused by inefficient or clogged cores
• Addresses coolant leaks from cracked plastic tanks
• Improves cooling system performance in vehicles with single-row radiator configurations
• Suitable for restoring OEM cooling system functionality

Installation Notes and Tips

• Ensure compatibility with Dodge Ram 1500 model year before installation
• Verify inlet and outlet hose sizes match vehicle specifications
• Use compatible radiator cap (CSF cap number 4515) as cap is not included
• Inspect cooling system components for wear during installation
• Flush cooling system to remove debris before installing new radiator

Quality Assurance and Warranty Information

The CSF 1 Row Plastic Tank Aluminum Core Radiator (part number 3715) is manufactured to meet OEM standards for fit and function. The radiator is constructed with non-hazardous materials and undergoes quality control to ensure durability and performance. Warranty details should be confirmed with the original equipment manufacturer or distributor.
