OE Quality
60-Day Returns

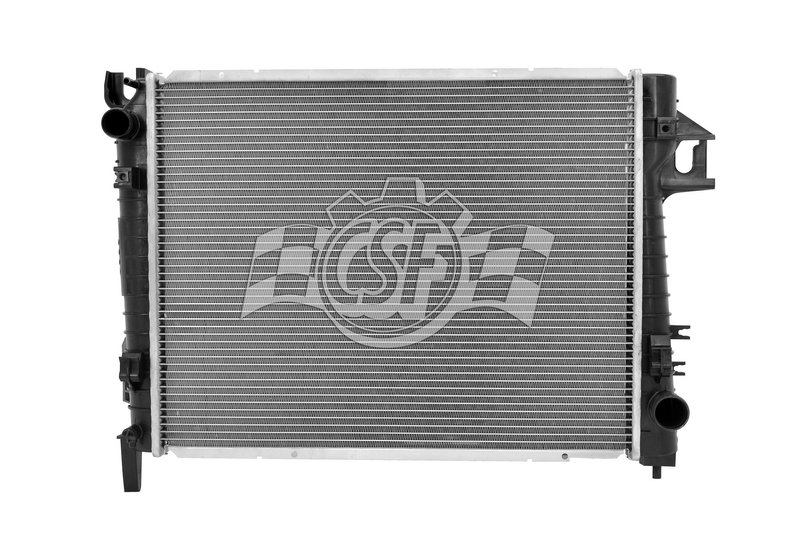

CSF 3719 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3719) is designed specifically for Dodge Ram 1500 models. This radiator features a durable aluminum core combined with OE-style plastic tanks, providing reliable cooling performance for your vehicle.
- Core Thickness: 1 1/4 inches
- Core Width: 18 13/16 inches
- Core Length: 24 inches
- Core Material: Aluminum
- Tank Material: Plastic
- Inlet Diameter: 1 1/2 inches (left side)
- Outlet Diameter: 1 3/4 inches (right side)
- Cross flow design for efficient coolant circulation
- Cap not included
- Box dimensions: 33" length x 24 5/16" width x 8 5/8" height
- Box weight: 13 lbs
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core product line combines lightweight aluminum cores with OE-style plastic tanks to balance durability and cost-effectiveness. This design supports efficient heat dissipation while maintaining compatibility with original equipment specifications, making it suitable for replacement radiators in Dodge Ram 1500 trucks.
Product Description and Specifications
This radiator features a 1 1/4 inch thick aluminum core measuring 18 13/16 inches wide and 24 inches long, optimized for cross flow coolant movement. The plastic tanks are engineered to match OEM standards, ensuring proper fit and function. The inlet and outlet diameters are 1 1/2 inches on the left and 1 3/4 inches on the right, respectively, with inlet and outlet lengths of 19 5/16 inches and widths of 2 11/16 inches, facilitating straightforward hose connections. The radiator does not include a cap, so the existing cap should be reused or replaced separately.
Common Applications and Problem Solving
- Replacement for leaking or damaged radiators in Dodge Ram 1500 vehicles
- Resolves overheating issues caused by inefficient cooling
- Addresses coolant leaks from cracked plastic tanks
- Improves engine temperature regulation with cross flow design
- Suitable for restoring cooling system performance after impact or wear
Installation Notes and Tips
- Ensure compatibility with Dodge Ram 1500 model year before installation
- Reuse or replace radiator cap as it is not included with this part
- Check hose diameters to match 1 1/2 inch inlet and 1 3/4 inch outlet sizes
- Inspect mounting points for proper alignment with existing brackets
- Flush cooling system before installation to prevent contamination
Quality Assurance and Warranty
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3719) is manufactured to meet OEM specifications for fit and function. It is constructed with corrosion-resistant aluminum and durable plastic tanks to ensure longevity. While specific warranty details are not provided, CSF products typically adhere to industry standards for quality and reliability.
| Brand | CSF |
| Part Number | 3719 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 8 5/8 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 13 |
| Box Width (in) | 24 5/16 |
| Cap Included | No |
| Core Length | 24 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 18 13/16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Left |
| Inlet Length (in) | 19 5/16 |
| Inlet Width (in) | 2 11/16 |
| Outlet Diameter | 1 3/4 Right |
| Outlet Length (in) | 19 5/16 |
| Outlet Width (in) | 2 11/16 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2003 | Dodge | Ram 1500 | 4.7L | V8 | N/A | OE Style Design; Late Design; 1 Row Plastic Tank Aluminum Core |
| 2003 | Dodge | Ram 1500 | 3.7L | V6 | N/A | OE Style Design; Late Design; 1 Row Plastic Tank Aluminum Core |
| 2002 | Dodge | Ram 1500 | 3.7L | V6 | N/A | OE Style Design; Late Design; 1 Row Plastic Tank Aluminum Core |
| 2002 | Dodge | Ram 1500 | 4.7L | V8 | N/A | OE Style Design; Late Design; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
