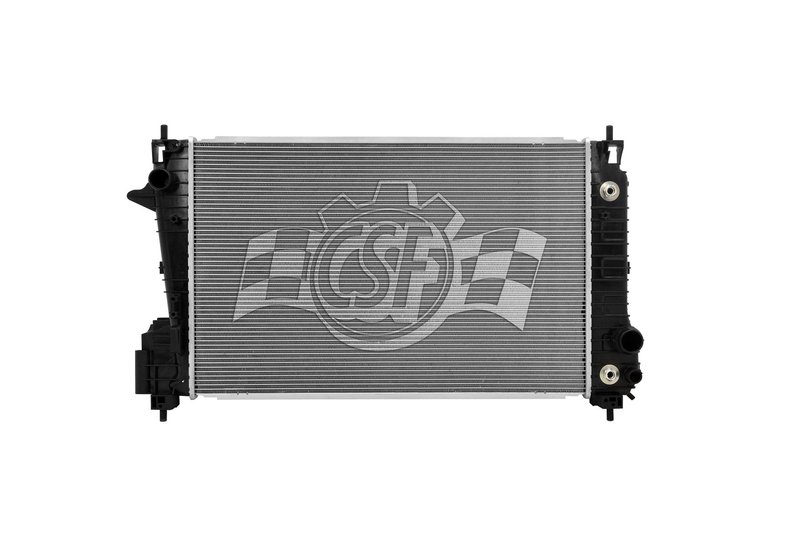

CSF 3734 Radiator
Overview of CSF 3734 Radiator for Chevrolet Sonic
The CSF 3734 radiator is designed specifically for Chevrolet Sonic models, providing reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in compact engine bays.
- Core thickness: 7/8 inch
- Core width: 15 5/8 inches
- Core length: 24 7/16 inches
- Aluminum core with plastic tanks
- Cross flow design for improved coolant circulation
- Inlet diameter: 1 3/8 inches (left side)
- Outlet diameter: 1 1/2 inches (right side)
- Includes high-efficiency 11 1/2 inch oil cooler (plate type)
- OEM style quick-connect outlet
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines lightweight plastic tanks with a robust aluminum core to balance durability and heat transfer efficiency. This product line is engineered to meet OEM specifications, ensuring compatibility and performance for vehicles like the Chevrolet Sonic. The single-row core design supports effective cooling while maintaining a compact profile suitable for tight engine compartments.
Product Description and Specifications
The CSF 3734 radiator features a 7/8 inch thick aluminum core measuring 15 5/8 inches wide and 24 7/16 inches long. Its cross flow configuration enhances coolant flow across the core, improving heat exchange. The plastic tanks reduce weight and resist corrosion, while the inlet and outlet diameters (1 3/8 inches left inlet and 1 1/2 inches right outlet) are designed for direct fitment on Chevrolet Sonic models. The radiator also includes a high-efficiency 11 1/2 inch plate-type oil cooler integrated into the assembly, supporting engine oil temperature regulation.
Common Applications and Issues Addressed
- Replacement for leaking or damaged radiators on Chevrolet Sonic vehicles
- Resolves overheating caused by clogged or inefficient cooling cores
- Addresses coolant leaks from cracked plastic tanks
- Improves engine oil cooling with integrated oil cooler
- Restores proper coolant flow with OEM-style quick-connect fittings
Installation Notes and Tips
Installation of the CSF 3734 radiator requires draining the existing coolant and removing the old radiator assembly. Ensure all hose connections match the 1 3/8 inch inlet and 1 1/2 inch outlet diameters. The cross flow design requires proper orientation for optimal coolant circulation. Use OEM recommended coolant and verify no leaks after installation. The radiator does not include a cap, so reuse the existing cap or purchase separately if needed.
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM standards for fit, form, and function. The 3734 radiator is constructed with corrosion-resistant aluminum core and durable plastic tanks to provide long service life. While specific warranty details are not provided here, CSF products typically come with a limited warranty against defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer.
| Brand | CSF |
| Part Number | 3734 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 6 7/16 |
| Box Length (in) | 33 3/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 20 13/16 |
| Cap Included | No |
| Core Length | 24 7/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 15 5/8 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Left |
| Inlet Length (in) | 16 1/16 |
| Inlet Width (in) | 1 3/8 |
| Oil Cooler (in) | 11 1/2 (high-efficiency Plate Type) |
| Outlet Diameter | 1 1/2 Right |
| Outlet Length (in) | 16 1/16 |
| Outlet Width (in) | 1 3/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe & quick-connect oil cooler fittings. |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Chevrolet | Sonic | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2019 | Chevrolet | Sonic | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2018 | Chevrolet | Sonic | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2017 | Chevrolet | Sonic | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2016 | Chevrolet | Sonic | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2015 | Chevrolet | Sonic | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2014 | Chevrolet | Sonic | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2013 | Chevrolet | Sonic | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2012 | Chevrolet | Sonic | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
