CSF 3753 Radiator

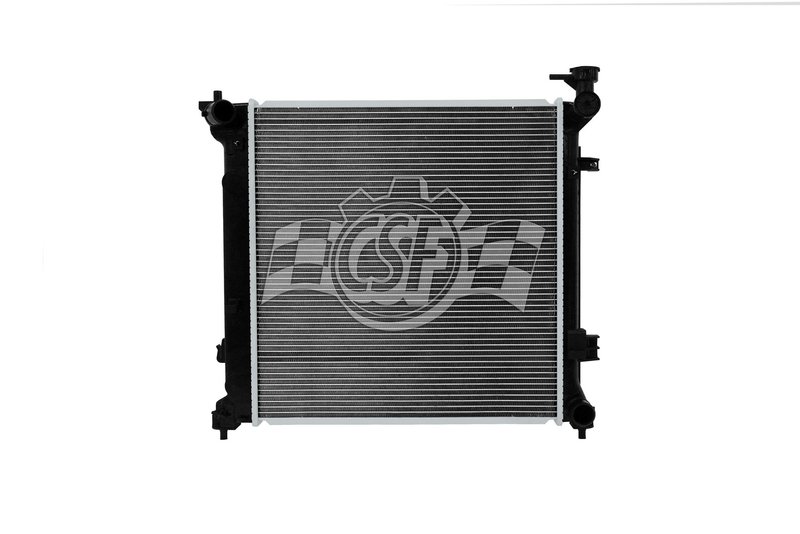

CSF 3753 Radiator for Hyundai Sonata

The CSF 3753 radiator is an OE-style replacement built for 2015-2019 Hyundai Sonata applications. It uses an aluminum core with plastic tanks and a cross-flow layout to match factory-style cooling system packaging and fitment.

Key Features

• Fits 2015-2019 Hyundai Sonata
• CSF part number 3753
• Aluminum core with plastic tanks
• Cross-flow design with 1-row core construction
• Inlet: 1 3/8 in. left; outlet: 1 3/8 in. right
• OE-style plastic tank and aluminum core construction
• Wind tunnel tested for cooling performance validation
• Manufactured by CSF, an ISO/TSO certified radiator producer

Detailed Description

Built for the Hyundai Sonata, CSF 3753 follows an OE-style radiator layout with a 1 1/4 in. core thickness, 18 5/16 in. core width, and 17 11/16 in. core length. The aluminum core helps transfer heat efficiently, while the plastic tanks mirror factory-style construction for straightforward replacement in the engine bay. This radiator is designed for vehicles that use a cross-flow configuration with left-side inlet and right-side outlet connections.

CSF has supplied radiators worldwide for decades and manufactures a broad range of cooling components for many vehicle platforms. Part number 3753 is engineered and validated for cooling performance, making it a direct-fit choice for Hyundai Sonata radiator replacement service.

This part cross-references BBB Industries 13538 for the same application.

Common Problems This Radiator Can Address

• Coolant leaks from a damaged or aging radiator
• Overheating caused by restricted or inefficient heat transfer
• Cracked or brittle factory-style plastic tank assemblies
• Corrosion or internal wear in the original cooling core
• Poor fitment from non-OE-style replacement radiators

Installation Notes

Verify inlet and outlet orientation before installation: this radiator uses a left inlet and right outlet. Confirm core dimensions and mounting points against the original unit before removal. Inspect hoses, clamps, and the radiator cap specification during service; CSF cap number 4503 is listed for reference, and the cap is not included.

For best results, flush the cooling system and check for contamination before installing the new radiator. After installation, refill with the correct coolant mixture and bleed the system according to Hyundai service procedures.

Quality Assurance

CSF manufactures radiators under ISO/TSO-certified processes and validates cooling performance through laboratory testing. The 3753 radiator is built to OE-style standards for the 2015-2019 Hyundai Sonata platform.
