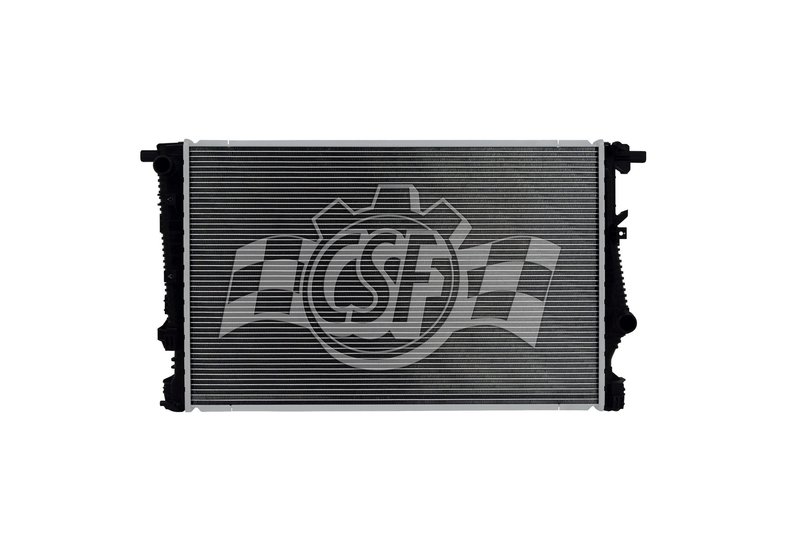

CSF 3759 Radiator
| Brand | CSF 3759 |
|---|---|
| Core Thickness | 7/8 |
| Core Width | 16 5/8 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 26 9/16 |
| Inlet Diameter | 1 3/16 left |
| Outlet Diameter | 1 1/4 right |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 6 7/8 |
| Box Length (in) | 34 3/8 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 19 13/16 |
| Hazardous Material | No |
| Inlet Length (in) | 17 1/4 |
| Inlet Width (in) | 1 5/8 |
| Outlet Length (in) | 17 1/4 |
| Outlet Width (in) | 1 5/8 |
| Tech Note | O.e.m. style plastic tanks & aluminum core;with quick-connect out |
| Fits | Chrysler and Jeep · 11 vehicles |
OE-style design. Plastic tanks and an aluminum core match the original equipment layout.
Cross-flow construction. Engineered for efficient cooling performance and airflow validation.
Quick-connect outlet pipe. Simplifies installation with a secure, factory-style connection.
Cross-references Carlson 13400, Mopar 68229284AB and Partslink Numbering System CH3010363 for the same application. See all 8.
Radiator for Jeep Cherokee and Chrysler 200
This CSF radiator is an OE-style cooling replacement built with an aluminum core and plastic tanks for direct-fit service on select Jeep Cherokee and Chrysler 200 applications. CSF part number 3759 is engineered for cross-flow cooling performance and uses a quick-connect outlet pipe design where specified.
Key Features
- Aluminum core with plastic tank construction
- Cross-flow radiator design with 1-row core
- Core thickness: 7/8 in.
- Core dimensions: 26 9/16 in. length and 16 5/8 in. width
- Inlet diameter: 1 3/16 in. left
- Outlet diameter: 1 1/4 in. right
- O.E.M.-style plastic tanks with aluminum core
- Quick-connect outlet pipe design
- Cap not included
Detailed Description
CSF 3759 is a radiator designed for vehicles that require an OE-style cross-flow cooling layout with plastic end tanks and an aluminum heat exchanger core. It is built to match the factory-style configuration used on 2014-2018 Jeep Cherokee models with a quick-connect outlet pipe and single fan assembly, as well as 2015-2017 Chrysler 200 applications. CSF manufactures radiators to controlled production standards and validates cooling performance through laboratory wind tunnel testing. This part cross-references Mopar 68229284AB for the same application.
What This Radiator Helps Address
- Overheating caused by a leaking or restricted radiator
- Coolant loss from cracked plastic tanks or aged seams
- Reduced heat transfer from a clogged or damaged core
- Factory-style replacement needs for Jeep Cherokee cooling service
- Replacement needs for Chrysler 200 radiator service
Installation Notes and Tips
Fits 2014-2018 Jeep Cherokee, N/A, with quick-connect outlet pipe and single fan assembly. Fits 2015-2017 Chrysler 200, N/A. Verify inlet and outlet orientation before installation: left-side inlet and right-side outlet. Confirm the vehicle uses the specified quick-connect outlet pipe configuration and compare the original radiator dimensions to the replacement before assembly.
Quality Assurance
CSF radiators are produced in ISO/TSO-certified facilities and are engineered for cooling performance validation. The brand has supplied radiators worldwide for decades and manufactures a broad range of OE-style cooling components for many vehicle platforms.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Jeep | Cherokee | — | 2.4L | L4 | N/A | w/ quick-connect outlet pipe; Single Fan Assembly |
| 2017 | Chrysler | 200 | Sedan | 2.4L | L4 | N/A | — |
| 2017 | Chrysler | 200 | Sedan | 3.6L | V6 | N/A | — |
| 2017 | Jeep | Cherokee | — | 2.4L | L4 | N/A | w/ quick-connect outlet pipe; Single Fan Assembly |
| 2016 | Chrysler | 200 | Sedan | 3.6L | V6 | N/A | — |
| 2016 | Chrysler | 200 | Sedan | 2.4L | L4 | N/A | — |
| 2016 | Jeep | Cherokee | — | 2.4L | L4 | N/A | w/ quick-connect outlet pipe; Single Fan Assembly |
| 2015 | Chrysler | 200 | Sedan | 3.6L | V6 | N/A | — |
| 2015 | Chrysler | 200 | Sedan | 2.4L | L4 | N/A | — |
| 2015 | Jeep | Cherokee | — | 2.4L | L4 | N/A | w/ quick-connect outlet pipe; Single Fan Assembly |
| 2014 | Jeep | Cherokee | — | 2.4L | L4 | N/A | w/ quick-connect outlet pipe; Single Fan Assembly |
