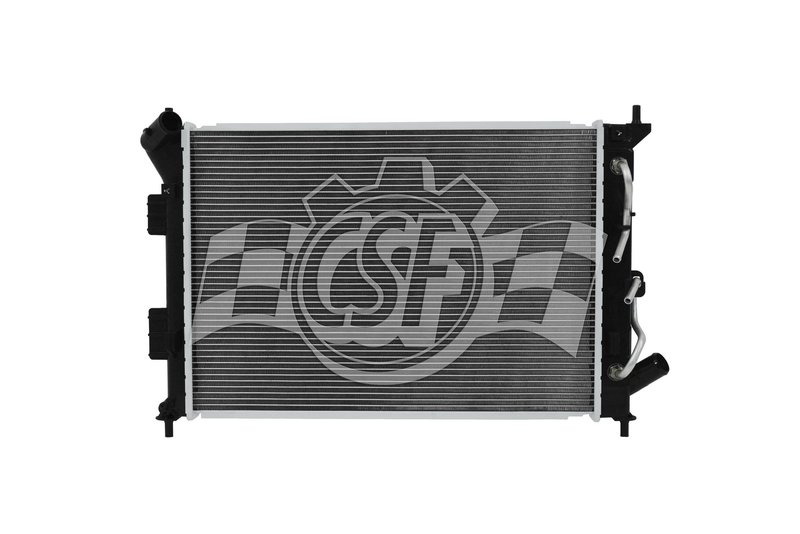

CSF 3762 Radiator
| Brand | CSF 3762 |
|---|---|
| Box Height (in) | 5 1/4 |
| Box Length (in) | 29 11/16 |
| Box Weight (lbs) | 7 |
| Box Width (in) | 20 3/16 |
| Cap Included | No |
| Core Length | 21 11/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 15 5/16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 5/16 Left |
| Inlet Length (in) | 15 13/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 11 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 5/16 Right |
| Outlet Length (in) | 15 13/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Fits | Kia · 8 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror original equipment design.
Cross-flow design. Promotes efficient coolant flow for consistent heat transfer.
Wind tunnel tested. Validated for cooling performance in lab conditions.
Cross-references BBB Industries 13413, OSC 13414 and 25310-B2000 for the same application. See all 6.
CSF 3762 Radiator for Kia Soul
The CSF 3762 radiator is an OE-style replacement built with an aluminum core and plastic tanks for the 2014-2019 Kia Soul. It is engineered for cross-flow cooling performance and includes an integrated high-efficiency concentric-type oil cooler.
- Aluminum core with plastic tanks
- Cross-flow design with 1-row core construction
- Core thickness: 5/8 in.
- Inlet diameter: 1 5/16 in., left side
- Outlet diameter: 1 5/16 in., right side
- Integrated 11 in. high-efficiency concentric-type oil cooler
- OE-style plastic tank and aluminum core construction
- CSF part number 3762
Built for OE-Style Cooling Performance
CSF manufactures radiators to high-performance standards and validates cooling performance through laboratory wind tunnel testing. Part number 3762 is designed for the Kia Soul radiator application with the correct inlet and outlet layout, core dimensions, and cross-flow configuration. This radiator is a direct-fit style replacement for 2014-2019 Kia Soul models, including 2018-2019 Kia Soul non-turbo models only.
This part cross-references Bosch 13413 and OSC 13414 for the same application.
Common Cooling Issues This Radiator Can Address
- Coolant leaks from a damaged or aging radiator tank
- Restricted cooling from a clogged or corroded core
- Overheating caused by reduced heat transfer efficiency
- Transmission or engine oil cooling concerns where the integrated cooler is part of the system
- Fitment problems from a radiator that does not match the OE-style inlet and outlet layout
Installation Notes and Fitment
Fits 2014-2019 Kia Soul, N/A. Fits 2018-2019 Kia Soul, N/A, non-turbo models only. Verify radiator dimensions, hose connection orientation, and oil cooler routing before installation. This radiator uses an OE-style plastic tank and aluminum core design, so transfer of vehicle-specific components should be confirmed against the original unit during replacement.
Quality Assurance
CSF radiators are manufactured in ISO/TSO-certified facilities and built to support consistent cooling performance. With more than 50 years of radiator production experience and extensive global application coverage, CSF 3762 reflects the brand’s OE-style engineering approach for the Kia Soul.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Kia | Soul | 2.0L | L4 | N/A | — |
| 2019 | Kia | Soul | 1.6L | L4 | N/A | Non-Turbo Models Only |
| 2018 | Kia | Soul | 1.6L | L4 | N/A | Non-Turbo Models Only |
| 2018 | Kia | Soul | 2.0L | L4 | N/A | — |
| 2017 | Kia | Soul | 2.0L | L4 | N/A | — |
| 2016 | Kia | Soul | 2.0L | L4 | N/A | — |
| 2015 | Kia | Soul | 2.0L | L4 | N/A | — |
| 2014 | Kia | Soul | 2.0L | L4 | N/A | — |
