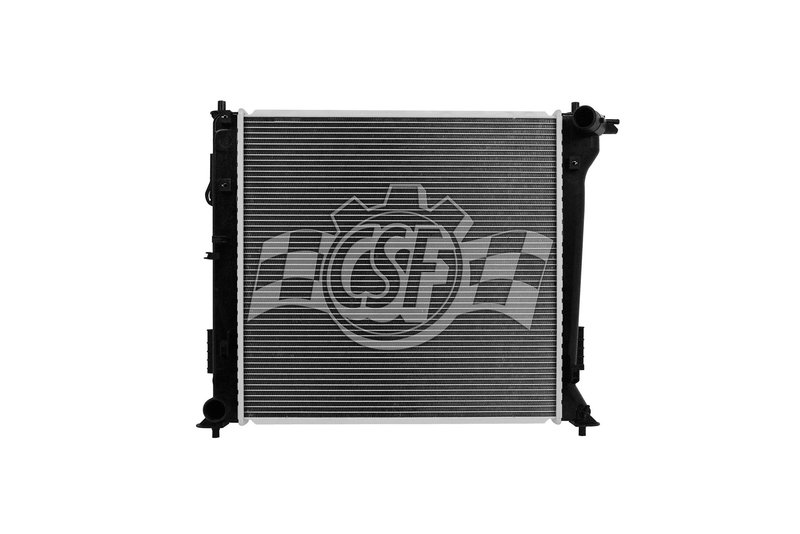

CSF 3787 Radiator
Overview of CSF Radiator Part 3787 for Hyundai Tucson
The CSF radiator part number 3787 is designed specifically for Hyundai Tucson models, providing reliable cooling performance. Engineered with an aluminum core and plastic tanks, this radiator supports efficient heat dissipation to maintain optimal engine temperature.
- Core thickness: 1 1/4 inches
- Core width: 18 5/16 inches
- Core length: 19 1/8 inches
- Aluminum core material with plastic tanks
- Cross flow design for effective coolant circulation
- Inlet and outlet diameter: 1 3/8 inches (right inlet, left outlet)
- Single-row radiator core
- Cap not included
Detailed Product Description
This CSF radiator (part number 3787) features a cross flow design that enhances coolant flow across the aluminum core, improving heat exchange efficiency. The core measures 1 1/4 inches thick, 18 5/16 inches wide, and 19 1/8 inches long, providing a substantial surface area for cooling. The plastic tanks are manufactured to OEM specifications, ensuring compatibility and durability. The inlet and outlet diameters are both 1 3/8 inches, positioned on the right and left sides respectively, matching the Hyundai Tucson's cooling system layout. This radiator is a single-row core type, suitable for standard cooling requirements.
Compatible Vehicles and Applications
- Compatible with Hyundai Tucson models requiring a cross flow radiator
- Replacement for OEM radiators with plastic tanks and aluminum cores
- Ideal for addressing overheating, coolant leaks, and reduced cooling efficiency
- Suitable for routine radiator replacement or repair
Installation Notes and Tips
- Ensure the radiator core dimensions and inlet/outlet positions match the vehicle specifications
- Check for proper hose connections to the 1 3/8 inch inlet and outlet fittings
- Verify radiator mounting points align with the Hyundai Tucson frame
- Bleed the cooling system after installation to remove air pockets
- Use compatible coolant recommended by Hyundai for optimal performance
Quality Assurance and Warranty
The CSF radiator part 3787 is manufactured to meet OEM standards, featuring durable aluminum cores and plastic tanks designed for longevity. While the product does not include a radiator cap, it is engineered for direct replacement use. CSF products typically come with a limited warranty covering defects in materials and workmanship; please refer to the specific warranty terms provided at purchase.
| Brand | CSF |
| Part Number | 3787 |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 27 1/2 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 23 1/8 |
| Cap Included | No |
| Core Length | 19 1/8 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 18 5/16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Right |
| Inlet Length (in) | 19 |
| Inlet Width (in) | 1 3/4 |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 19 |
| Outlet Width (in) | 1 3/4 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Hyundai | Tucson | 1.6L | L4 | N/A | Upgraded Heavy Duty Core. 15% Thicker 30mm vs OEM 26mm |
| 2019 | Hyundai | Tucson | 1.6L | L4 | N/A | Upgraded Heavy Duty Core. 15% Thicker 30mm vs OEM 26mm |
| 2018 | Hyundai | Tucson | 1.6L | L4 | N/A | |
| 2017 | Hyundai | Tucson | 1.6L | L4 | N/A | |
| 2016 | Hyundai | Tucson | 1.6L | L4 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
