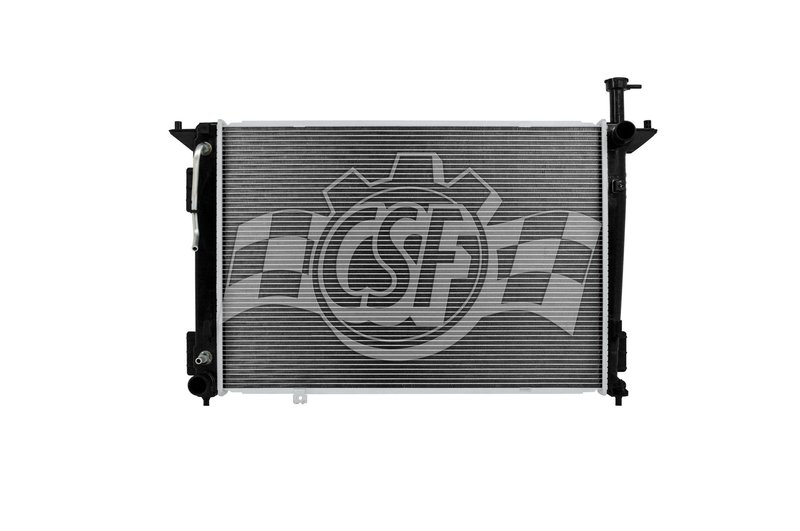

CSF 3789 Radiator
| Brand | CSF 3789 |
|---|---|
| Box Height (in) | 5 11/16 |
| Box Length (in) | 35 3/4 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 25 1/2 |
| Cap Included | No |
| Core Length | 26 3/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 18 5/16 |
| Csf Cap Number | 4503 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Right |
| Inlet Length (in) | 19 |
| Inlet Width (in) | 1 9/16 |
| Oil Cooler (in) | 14 9/16 (high-efficiency Plate Type) |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 19 |
| Outlet Width (in) | 1 9/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Fits | Kia · 7 vehicles |
OE-style design. Plastic tanks and an aluminum core match the original construction.
Cross-flow layout. Promotes efficient coolant movement through the radiator.
Wind tunnel tested. Validated for cooling performance in lab testing.
Cross-references BBB Industries 13508, Partslink Numbering System KI3010150 and 25310 A9050 for the same application. See all 3.
OE-Style Radiator for Kia Sedona
CSF 3789 is an OE-style radiator built for the 2015-2021 Kia Sedona. It combines an aluminum core with plastic tanks and a cross-flow layout to match factory-style cooling system packaging and fitment.
Key Features
- Fits 2015-2021 Kia Sedona, N/A
- Aluminum core with plastic tanks for OE-style construction
- Cross-flow design with one-row core layout
- Core thickness: 7/8 in.
- Inlet: 1 3/8 in. right; outlet: 1 3/8 in. left
- Integrated high-efficiency plate-type oil cooler, 14 9/16 in.
- Cap not included
- CSF part number 3789
Detailed Description
CSF 3789 is engineered as a direct-fit radiator for the Kia Sedona, using an OE-style plastic tank and aluminum core design. The cross-flow configuration, 1-row core, and factory-style inlet and outlet placement help maintain proper cooling system routing while supporting consistent heat transfer. CSF states its radiators are developed to high-performance standards and validated through wind-tunnel testing, with manufacturing backed by ISO/TSO-certified facilities. This part cross-references Bosch 13508 for the same application.
For buyers searching for a 2015-2021 Kia Sedona radiator, Kia Sedona replacement radiator, or CSF 3789 radiator, this unit is built around the original equipment layout and dimensions. The core measures 26 3/8 in. long by 18 5/16 in. wide, with a 7/8 in. core thickness and a 14 9/16 in. high-efficiency plate-type oil cooler.
Common Issues This Radiator Can Address
- Cracked or leaking radiator tanks
- Restricted coolant flow from an aging core
- Overheating caused by reduced heat dissipation
- Corrosion or wear in the original radiator assembly
- Cooling system service needs on a Kia Sedona
Installation Notes and Tips
Verify inlet and outlet orientation before installation: inlet is on the right and outlet is on the left. Confirm radiator dimensions, hose routing, and oil cooler connections against the original unit before assembly. The cap is not included, so reuse or replace the correct cap separately if needed. For best results, inspect hoses, clamps, and coolant condition during radiator replacement on the Kia Sedona.
Quality Assurance
CSF manufactures radiators in ISO/TSO-certified facilities and validates cooling performance during development. The brand has supplied radiators worldwide for decades and produces a broad range of OE-style cooling components for leading vehicle applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Kia | Sedona | 3.3L | V6 | N/A | OE style design ensures optimal fitment and performance. |
| 2020 | Kia | Sedona | 3.3L | V6 | N/A | OE style design ensures optimal fitment and performance. |
| 2019 | Kia | Sedona | 3.3L | V6 | N/A | OE style design ensures optimal fitment and performance. |
| 2018 | Kia | Sedona | 3.3L | V6 | N/A | OE style design ensures optimal fitment and performance. |
| 2017 | Kia | Sedona | 3.3L | V6 | N/A | OE style design ensures optimal fitment and performance. |
| 2016 | Kia | Sedona | 3.3L | V6 | N/A | OE style design ensures optimal fitment and performance. |
| 2015 | Kia | Sedona | 3.3L | V6 | N/A | OE style design ensures optimal fitment and performance. |
