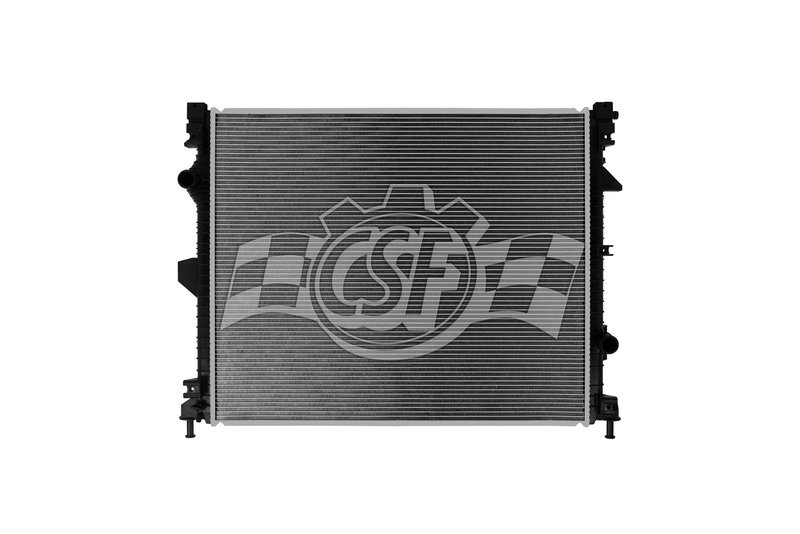

CSF 3794 Radiator

CSF 3794 Radiator for Ford Edge and Lincoln MKX

The CSF 3794 radiator is an OE-style replacement built with an aluminum core and plastic tanks for the 2015-2018 Ford Edge and 2016-2018 Lincoln MKX. It is engineered as a cross-flow radiator with a 1-row core and heavy-duty core thickness for direct-fit cooling service.

Key Features

• Aluminum core with plastic tank construction
• Cross-flow design with 1-row core layout
• Core thickness: 1 1/4 in.
• Core size: 23 in. wide x 27 3/4 in. long
• Inlet diameter: 1 5/16 in., left side
• Outlet diameter: 1 5/16 in., right side
• OE-style plastic tanks and aluminum core construction
• Wind tunnel tested for cooling performance validation
• Manufactured by CSF, an ISO/TSO certified factory network

Detailed Description

CSF part number 3794 is designed for drivers needing a direct replacement radiator for the Ford Edge and Lincoln MKX cooling system. The radiator uses an aluminum core with plastic tanks in an OE-style layout, and the heavy-duty core is listed as 11% thicker than the OEM 27 mm design on applicable Ford Edge models. CSF has produced radiators for decades and supplies a wide range of applications across major vehicle platforms, with engineering validation focused on cooling performance.

This part cross-references APDI 8013554 for the same application.

Vehicle Fitment

• Fits 2015-2018 Ford Edge, N/A. Upgraded Heavy Duty Core. 11% Thicker 30mm vs OEM 27mm.
• Fits 2016-2018 Lincoln MKX, N/A. w/ Tow Package.

What It Helps Address

• Overheating caused by a worn or leaking radiator
• Coolant loss from cracked plastic tanks or aged core joints
• Reduced cooling efficiency under towing or higher-load driving
• Temperature instability from a restricted or damaged radiator core
• Replacement needs after corrosion, impact, or internal blockage

Installation Notes and Tips

Verify inlet and outlet orientation before installation: this radiator uses a left-side inlet and right-side outlet. Confirm the vehicle’s cooling system configuration and match the OE-style dimensions, especially on Ford Edge models with the upgraded heavy-duty core and Lincoln MKX vehicles equipped with the tow package. Transfer and inspect related cooling components as needed during radiator replacement.

Quality Assurance

CSF radiators are manufactured in ISO/TSO certified facilities and validated through laboratory wind tunnel testing for cooling performance. The brand has supplied radiators worldwide for more than 50 years and has produced over 30 million units across a broad range of vehicle applications.
