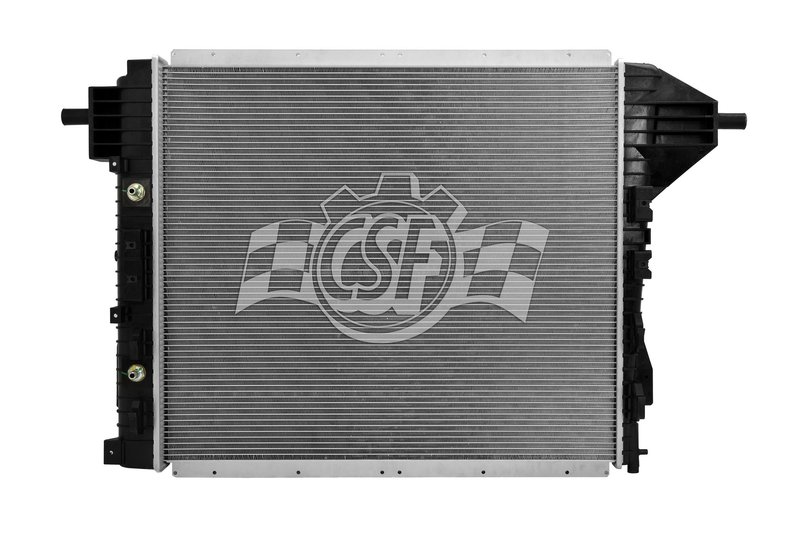

CSF 3796 Radiator
| Brand | CSF 3796 |
|---|---|
| Box Height (in) | 11 3/16 |
| Box Length (in) | 47 9/16 |
| Box Weight (lbs) | 31 |
| Box Width (in) | 32 |
| Cap Included | No |
| Core Length | 30 9/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 26 11/16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 7/8 Left |
| Inlet Length (in) | 27 3/8 |
| Inlet Width (in) | 1 9/16 |
| Outlet Diameter | 1 7/8 Right |
| Outlet Length (in) | 27 3/8 |
| Outlet Width (in) | 2 11/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
| Fits | Ford · 24 vehicles |
OE-style design. Plastic tanks and an aluminum core match original equipment construction.
Cross-flow layout. Engineered for efficient cooling performance.
Quick-connect pipes. Inlet and outlet connections simplify installation.
Cross-references APDI 8013145, Bosch 13231 and Carlson 13145 for the same application. See all 9.
OE-Style Radiator for Super Duty Cooling
CSF 3796 is an OE-style radiator built for Ford F-250 Super Duty and Ford F-350 Super Duty applications from 2008-2016. It uses an aluminum core with plastic tanks and quick-connect inlet and outlet pipes to match the original cooling system layout.
Designed for cross flow operation, this radiator is engineered and wind tunnel tested for cooling performance validation. CSF has manufactured radiators for decades and supplies a wide range of vehicle applications worldwide.
Key Features
- Aluminum core with plastic tanks
- Cross flow design with 1-row core construction
- Quick-connect inlet and outlet pipe design
- Inlet diameter: 1 7/8 left
- Outlet diameter: 1 7/8 right
- Core thickness: 7/8
- Core width: 26 11/16
- Core length: 30 9/16
- OE-style fitment for Ford F-250 Super Duty and Ford F-350 Super Duty
Detailed Description
CSF 3796 is a replacement radiator for 2008-2016 Ford F-250 Super Duty and 2008-2016 Ford F-350 Super Duty trucks. The radiator features an aluminum core with plastic end tanks in an OE-style configuration, along with quick-connect inlet and outlet pipe connections for a factory-style installation layout. The cross flow design and single-row core support efficient coolant transfer in demanding truck use. This part cross-references Spectra Premium CU13231 for the same application.
Common Cooling Issues Addressed
- Leaking radiator tanks or core seams
- Restricted coolant flow from an aging radiator
- Overheating caused by reduced heat dissipation
- Damaged inlet or outlet connections
- Cooling system service needs on high-mileage Super Duty trucks
Installation Notes and Tips
Verify inlet and outlet orientation before installation: inlet is left and outlet is right. Confirm radiator dimensions and quick-connect pipe style against the original unit before removal. Inspect hoses, clamps, and coolant condition during replacement to help complete the repair correctly. Fits 2008-2016 Ford F-250 Super Duty, N/A. Fits 2008-2016 Ford F-350 Super Duty, N/A.
Quality Assurance
CSF manufactures radiators to high-performance standards in ISO/TSO-certified facilities and validates cooling performance through laboratory testing. Part number 3796 is built to support consistent fit and thermal performance for Ford Super Duty cooling system service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2016 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2015 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2015 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2014 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2014 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2013 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2013 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2012 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2012 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2011 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2011 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2010 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | OE style design ensures optimal fitment and performance. |
| 2010 | Ford | F-250 Super Duty | 5.4L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2010 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | OE style design ensures optimal fitment and performance. |
| 2010 | Ford | F-350 Super Duty | 5.4L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2009 | Ford | F-250 Super Duty | 5.4L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2009 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | OE style design ensures optimal fitment and performance. |
| 2009 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | OE style design ensures optimal fitment and performance. |
| 2009 | Ford | F-350 Super Duty | 5.4L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2008 | Ford | F-250 Super Duty | 5.4L | V8 | N/A | OE style design ensures optimal fitment and performance. |
| 2008 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | OE style design ensures optimal fitment and performance. |
| 2008 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | OE style design ensures optimal fitment and performance. |
| 2008 | Ford | F-350 Super Duty | 5.4L | V8 | N/A | OE style design ensures optimal fitment and performance. |
