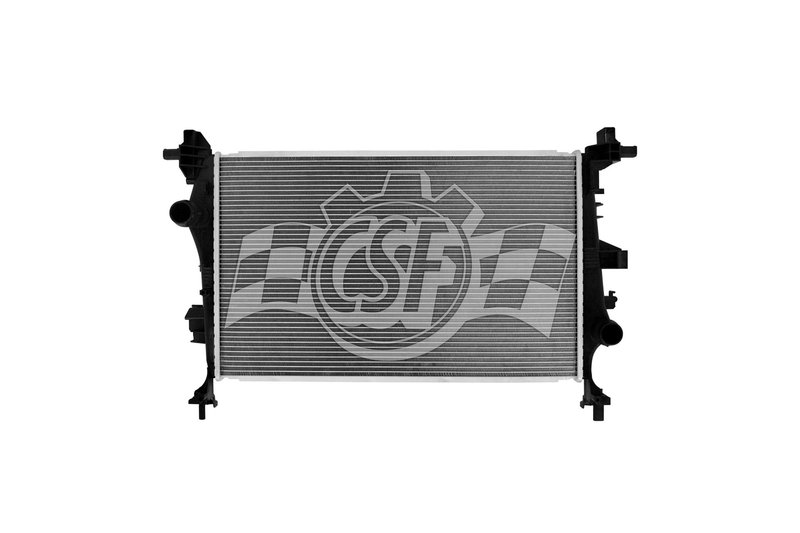

CSF 3801 Radiator

OE-Style Radiator for Fiat and Jeep

This CSF radiator is built as an OE-style replacement with a plastic tank and aluminum core for direct-fit cooling service. It is engineered for the 2015-2018 Jeep Renegade and 2016-2018 Fiat 500X, with cross-flow construction and quick-connect inlet and outlet pipe connections.

Key Features

• CSF Part Number 3801
• 1-row radiator with aluminum core and plastic tanks
• Cross-flow design for OE-style cooling layout
• Core thickness: 5/8 in.
• Core dimensions: 24 7/16 in. length x 15 in. width
• 1 1/2 in. left inlet and 1 1/2 in. right outlet
• Quick-connect inlet and outlet pipe design
• Cap not included

Product Details

CSF 3801 is part of the brand’s 1 Row Plastic Tank Aluminum Core line, a product line focused on OE-style radiator construction for direct replacement service. CSF manufactures a wide range of radiator applications and validates cooling performance through laboratory wind tunnel testing. For Jeep Renegade and Fiat 500X owners, this radiator follows the original layout with plastic end tanks and an aluminum core to match factory-style fitment and cooling path design.

Compatible With 2015-2018 Jeep Renegade and 2016-2018 Fiat 500X, this radiator is a practical choice for restoring cooling system function on vehicles using the listed OE-style configuration. This part cross-references BBB Industries 13535 for the same application.

Common Cooling System Issues It May Address

• Coolant leaks from cracked or aged radiator tanks
• Overheating caused by restricted or inefficient heat transfer
• Damaged inlet or outlet connections
• Cooling performance loss from corrosion or internal blockage
• Fitment problems when replacing an OE-style radiator assembly

Installation Notes and Tips

Verify inlet and outlet orientation before installation: 1 1/2 in. left inlet and 1 1/2 in. right outlet. Confirm the vehicle uses the listed cross-flow, quick-connect configuration and compare core dimensions to the original radiator before removal. Transfer any required vehicle-specific components from the original assembly if applicable, since cap included is not specified.

Quality Assurance

CSF radiators are manufactured to high-performance standards and produced by an ISO/TSO certified factory network. The brand states its radiators are engineered and tested for cooling performance validation, with more than 30 million units sold worldwide across over 50 years of production.
