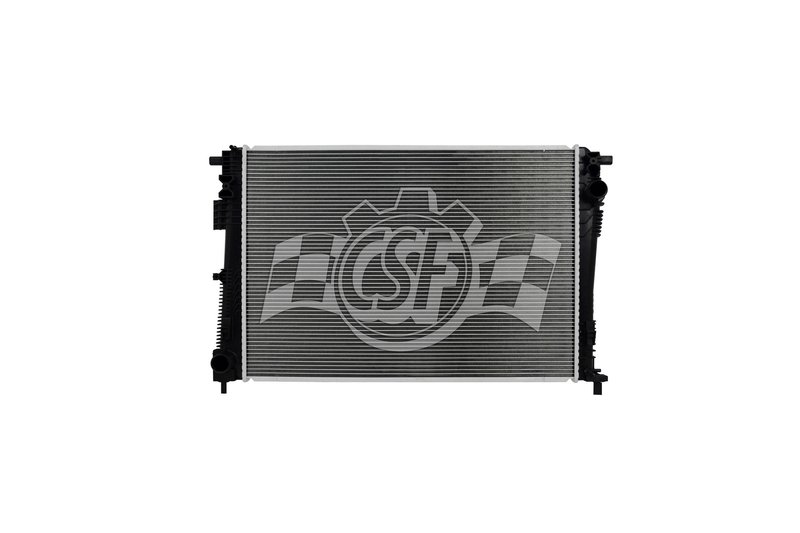

CSF 3810 Radiator

Overview of CSF 3810 Radiator for Chrysler Pacifica and Voyager

The CSF 3810 radiator is designed specifically for Chrysler Pacifica and Voyager models, providing reliable cooling performance. Featuring a durable aluminum core paired with plastic tanks, this radiator ensures efficient heat dissipation and long-lasting operation.

• Core Thickness: 1 1/4 inches
• Core Width: 19 5/16 inches
• Core Length: 27 3/4 inches
• Aluminum core material with plastic tanks
• Cross flow design for optimal coolant circulation
• Inlet and outlet diameter: 1 5/8 inches (right inlet, left outlet)
• Single row radiator core
• OEM style plastic tanks and aluminum core construction

Detailed Product Description

The CSF 3810 radiator features a 1 1/4 inch thick aluminum core that measures 19 5/16 inches in width and 27 3/4 inches in length, providing ample surface area for effective heat exchange. The plastic tanks are designed to match OEM specifications, ensuring compatibility and durability. This radiator uses a cross flow design, which promotes efficient coolant flow from the right-side inlet to the left-side outlet, both measuring 1 5/8 inches in diameter. The single row core configuration supports adequate cooling capacity for Chrysler Pacifica and Voyager vehicles, maintaining engine temperature under various driving conditions.

About the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core product line combines lightweight aluminum cores with durable plastic tanks to deliver a balance of performance and cost-effectiveness. This design approach aligns with OEM standards, providing a reliable replacement option for radiators in compatible Chrysler models. The single row core design is suitable for applications requiring moderate cooling capacity while maintaining a compact form factor.

Common Applications and Problem Solving

• Replacement for leaking or damaged radiators in Chrysler Pacifica and Voyager
• Resolves overheating issues caused by inefficient heat dissipation
• Addresses coolant flow restrictions due to clogged or corroded cores
• Restores proper engine temperature regulation for improved performance
• Prevents engine damage related to cooling system failures

Installation Notes and Tips

When installing the CSF 3810 radiator, ensure the inlet and outlet connections match the vehicle’s hose diameters (1 5/8 inches). Verify the radiator core dimensions fit within the engine bay space to avoid clearance issues. Since the radiator does not include a cap, reuse the existing cap or source a compatible replacement. Properly bleed the cooling system after installation to remove air pockets and ensure optimal coolant circulation.

Quality Assurance and Warranty

The CSF 3810 radiator is manufactured to meet OEM specifications, using high-quality aluminum and plastic materials to ensure durability and performance. This radiator is free of hazardous materials and designed for long service life in Chrysler Pacifica and Voyager vehicles. Warranty details should be confirmed with the supplier or manufacturer.
