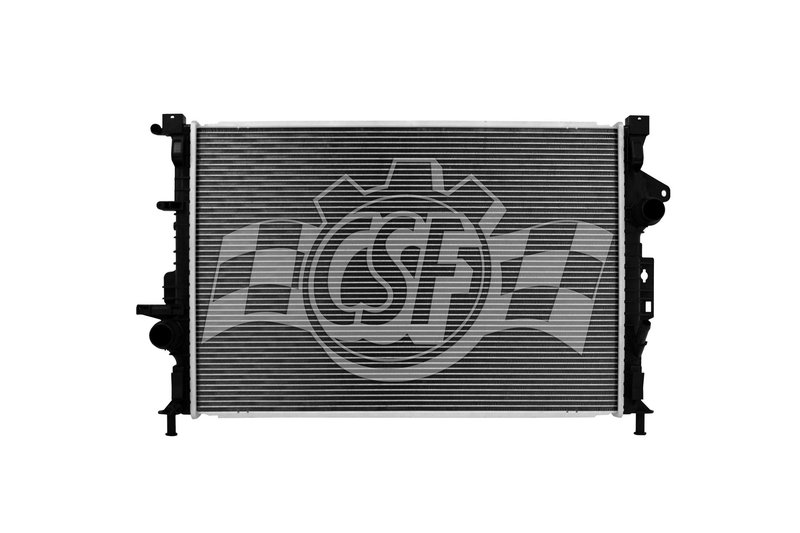

CSF 3812 Radiator
| Brand | CSF 3812 |
|---|---|
| Box Height (in) | 5 7/8 |
| Box Length (in) | 34 9/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 22 3/16 |
| Cap Included | No |
| Core Length | 26 1/2 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 17 11/16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Right |
| Inlet Length (in) | 18 1/8 |
| Inlet Width (in) | 1 5/16 |
| Outlet Diameter | 1 1/2 Left |
| Outlet Length (in) | 18 1/8 |
| Outlet Width (in) | 1 5/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Ford · 6 vehicles |
OE-style construction. Plastic tanks and an aluminum core match the original design.
Cross-flow design. Engineered for efficient cooling performance.
Quick-connect pipes. Inlet and outlet connections simplify installation.
Cross-references BBB Industries 13593, CU13593 and CV6Z 8005X for the same application. See all 4.
CSF 3812 Radiator for Ford Escape
CSF 3812 is an OE-style radiator built with a plastic tank and aluminum core for the 2014-2019 Ford Escape. It uses a cross-flow design with quick-connect inlet and outlet pipes to match the factory cooling layout and service requirements.
Key Features
- 1-row radiator design with a 7/8 in. core thickness
- Aluminum core with plastic tanks for OE-style construction
- Cross-flow configuration
- Inlet diameter: 1 1/2 in. right; outlet diameter: 1 1/2 in. left
- Core dimensions: 26 1/2 in. length and 17 11/16 in. width
- Quick-connect inlet and outlet pipe design
- Fits 2014 Ford Escape from 3/6/14 and 2015-2019 Ford Escape
Product Details
CSF 3812 is part of CSF’s 1 Row Plastic Tank Aluminum Core line, a product line focused on factory-style radiator construction for direct replacement service. CSF manufactures radiators to high-performance standards and validates cooling performance through laboratory wind tunnel testing. The brand has supplied radiators worldwide for decades and offers a broad catalog covering many vehicle applications, including Ford Escape cooling system service.
This radiator cross-references BBB Industries 13593 for the same application. It is a direct-fit replacement for Ford Escape radiator service where the original unit uses a plastic tank and aluminum core layout.
Common Cooling Issues This Radiator Addresses
- Cracked or leaking radiator tanks
- Restricted coolant flow from an aging core
- Overheating caused by reduced heat transfer
- Damaged quick-connect inlet or outlet connections
- Cooling system service needs on a Ford Escape with OE-style radiator dimensions
Installation Notes
Verify inlet and outlet orientation before installation: inlet is on the right and outlet is on the left. Confirm core dimensions, hose connection style, and vehicle build date on 2014 Ford Escape models, since this application applies from 3/6/14. The radiator is supplied without a cap.
Quality Assurance
CSF radiators are engineered for factory-style fitment and tested for cooling performance validation. CSF’s manufacturing process is supported by ISO/TSO-certified factories and long-term production experience across a wide range of vehicle applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Ford | Escape | 2.5L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2018 | Ford | Escape | 2.5L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2017 | Ford | Escape | 2.5L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2016 | Ford | Escape | 2.5L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2015 | Ford | Escape | 2.5L | L4 | N/A | 1 Row Plastic Tank Aluminum Core |
| 2014 | Ford | Escape | 2.5L | L4 | N/A | From 3/6/14; 1 Row Plastic Tank Aluminum Core |
