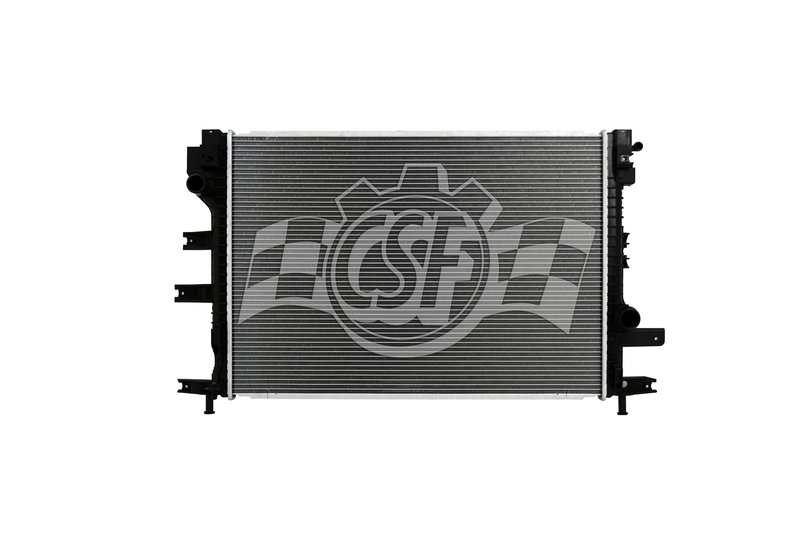

CSF 3814 Radiator
| Brand | CSF 3814 |
|---|---|
| Cap Included | No |
| Core Length | 26 7/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 18 5/16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Left |
| Inlet Length (in) | 19 |
| Inlet Width (in) | 1 5/16 |
| Outlet Diameter | 1 1/2 Right |
| Outlet Length (in) | 19 |
| Outlet Width (in) | 1 5/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Lincoln and Ford · 15 vehicles |
OE-style construction. Plastic tanks and an aluminum core match the original design.
Cross-flow design. Promotes efficient coolant movement through the radiator.
Quick-connect outlet pipe. Simplifies installation with a secure connection.
Cross-references Carlson 13628, CU13628 and FO3010348 for the same application. See all 5.
OE-Style Radiator for Lincoln and Ford
CSF radiator Part Number 3814 is an OE-style replacement built with a 1-row aluminum core and plastic tanks. It is engineered for direct-fit cooling performance on select Lincoln Continental, Lincoln MKZ, and Ford Fusion applications.
Key Features
- 1-row cross flow radiator design
- Aluminum core with plastic tank construction
- Core thickness: 7/8 in.
- Core dimensions: 26 7/16 in. length x 18 5/16 in. width
- Inlet: 1 3/8 in. left; outlet: 1 1/2 in. right
- Quick-connect outlet pipe design
- Cap not included
- CSF Part Number 3814
Product Details
CSF 3814 is part of the brand’s 1 Row Plastic Tank Aluminum Core line, a product line focused on OE-style radiator construction for everyday replacement needs. The radiator uses an aluminum core for heat transfer efficiency and plastic end tanks for the factory-style layout found on the original equipment design. CSF states its radiators are manufactured to high performance standards, validated through wind tunnel testing, and produced in ISO/TSO-certified facilities.
This radiator cross-references Carlson 13628 for the same application. It is a direct replacement choice for drivers searching for a radiator for 2017-2020 Lincoln Continental, 2017-2020 Lincoln MKZ, or 2017-2019 Ford Fusion, and it is identified in listings as CSF 3814.
What It Helps Address
- Coolant leaks from aging radiator tanks or seams
- Overheating caused by reduced heat rejection
- Restricted coolant flow from internal radiator wear
- Cracked or brittle plastic end tanks
- Fitment issues from non-OE-style replacement parts
Installation Notes and Tips
- Verify inlet and outlet orientation before installation: inlet left, outlet right.
- Confirm the quick-connect outlet pipe matches the vehicle’s original connection style.
- Inspect hoses, clamps, and coolant condition before installing the new radiator.
- Flush the cooling system if contamination or debris is present.
- Use the vehicle’s OE-style mounting points and dimensions to confirm fitment before final assembly.
Quality Assurance
CSF manufactures radiators for a wide range of vehicle applications and validates cooling performance during development. Part Number 3814 is built to OE-style specifications for the listed Lincoln and Ford models.
- Fits 2017-2020 Lincoln Continental, N/A; OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
- Fits 2017-2020 Lincoln MKZ, N/A; OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
- Fits 2017-2019 Ford Fusion, N/A; OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Lincoln | Continental | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2020 | Lincoln | Continental | 2.7L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2020 | Lincoln | MKZ | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2019 | Ford | Fusion | 2.7L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2019 | Lincoln | Continental | 2.7L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2019 | Lincoln | Continental | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2019 | Lincoln | MKZ | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2018 | Ford | Fusion | 2.7L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2018 | Lincoln | Continental | 2.7L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2018 | Lincoln | Continental | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2018 | Lincoln | MKZ | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2017 | Ford | Fusion | 2.7L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2017 | Lincoln | Continental | 2.7L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2017 | Lincoln | Continental | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2017 | Lincoln | MKZ | 3.0L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
