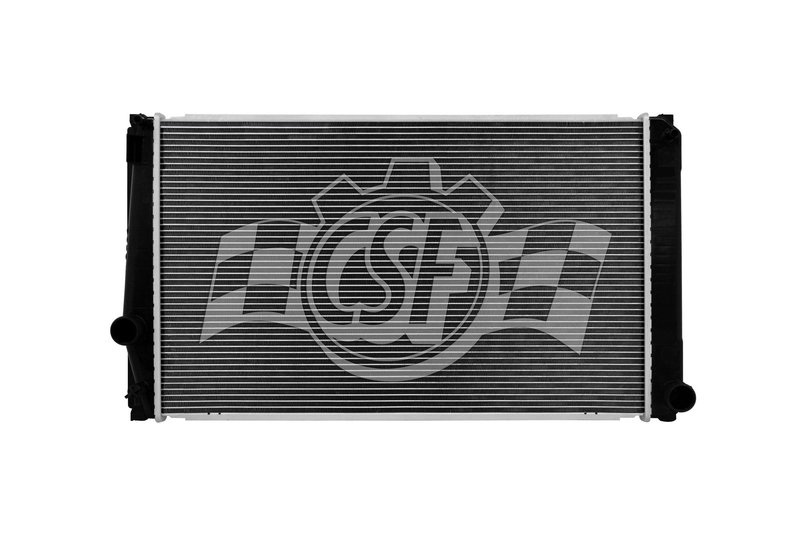

CSF 3822 Radiator
| Brand | CSF 3822 |
|---|---|
| Box Height (in) | 4 7/8 |
| Box Length (in) | 32 7/16 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 19 3/16 |
| Cap Included | No |
| Core Length | 26 3/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 15 7/8 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Left |
| Inlet Length (in) | 16 9/16 |
| Inlet Width (in) | 1 3/8 |
| Outlet Diameter | 1 1/2 Right |
| Outlet Length (in) | 16 9/16 |
| Outlet Width (in) | 1 3/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Toyota · 3 vehicles |
OE-style design. Plastic tanks and aluminum core mirror the original construction.
Cross-flow layout. Engineered for efficient cooling performance.
ISO/TSO certified. Built in certified factories and validated in wind tunnel testing.
Cross-references Bosch 13584, Partslink Numbering System TO3010351 and Spectra Premium CU13584 for the same application. See all 4.
CSF 3822 Radiator for Toyota RAV4
The CSF 3822 is an OE-style radiator built with a plastic tank and aluminum core for direct replacement service. It is engineered for the 2016-2018 Toyota RAV4, North America built, without tow package, and uses a cross-flow design with left-side inlet and right-side outlet connections.
Key Features
- Brand: CSF
- Part number: 3822
- 1-row radiator with aluminum core and plastic tanks
- Cross-flow configuration
- Core thickness: 7/8 in.
- Core dimensions: 26 3/8 in. length x 15 7/8 in. width
- Inlet diameter: 1 1/2 in. left
- Outlet diameter: 1 1/2 in. right
- OE-style plastic tanks and aluminum core construction
Product Details
CSF builds radiators to high-performance manufacturing standards and validates cooling performance through laboratory wind-tunnel testing. The CSF 3822 follows an OE-style layout for the Toyota RAV4, helping maintain factory-style fitment and cooling system routing. This radiator is listed for 2016-2018 Toyota RAV4 models built for North America without the tow package. This part cross-references Spectra Premium CU13584 and Partslink TO3010351 for the same application.
Common Cooling System Issues It May Address
- Coolant leaks from a damaged or aging radiator tank
- Restricted cooling performance from a clogged or corroded core
- Overheating caused by reduced heat transfer efficiency
- Cracked plastic end tanks from heat cycling and age
- Fitment problems when replacing an OE-style Toyota RAV4 radiator
Installation Notes and Tips
Verify vehicle configuration before ordering: this radiator is listed for North America built 2016-2018 Toyota RAV4 models without the tow package. Confirm inlet and outlet orientation, core dimensions, and hose connection sizes against the original unit before installation. Transfer and inspect related cooling system components as needed, and refill the system with the correct coolant mixture after installation.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered for consistent cooling performance. The brand has supplied radiators worldwide for decades and manufactures a broad range of applications for leading vehicle platforms.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2018 | Toyota | RAV4 | 2.5L | L4 | N/A | North America Built; w/o Tow Package; 1 Row Plastic Tank Aluminum Core |
| 2017 | Toyota | RAV4 | 2.5L | L4 | N/A | North America Built; w/o Tow Package; 1 Row Plastic Tank Aluminum Core |
| 2016 | Toyota | RAV4 | 2.5L | L4 | N/A | North America Built; w/o Tow Package; 1 Row Plastic Tank Aluminum Core |
