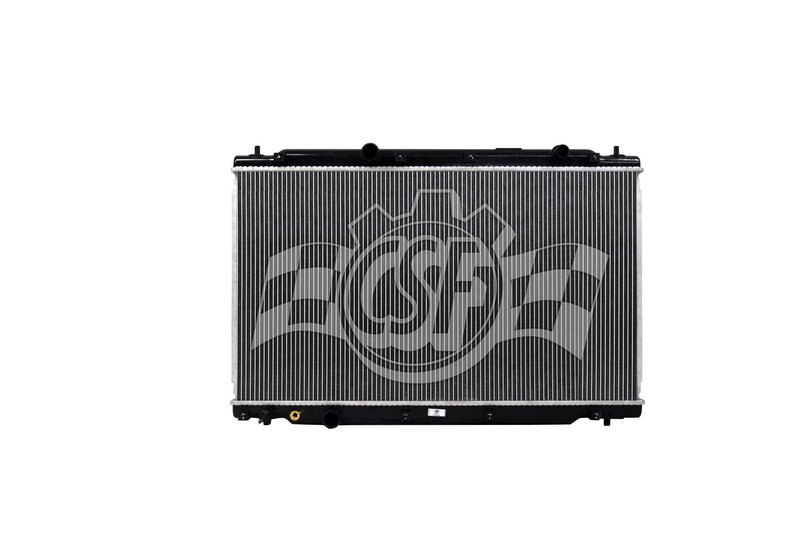

CSF 3853 Radiator

Overview of CSF Radiator for Honda CR-V

The CSF radiator part number 3853 is designed specifically for Honda CR-V models, providing reliable engine cooling with an OEM-style design. Featuring an aluminum core and plastic tanks, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core thickness: 5/8 inch for effective heat transfer
• Core width: 29 11/16 inches
• Core length: 16 3/4 inches
• Aluminum core material with plastic tanks
• Down flow radiator type
• Inlet and outlet diameter: 1 1/4 inches, positioned on the left
• Single-row core design
• Box dimensions: 32 7/16 inches length, 22 3/8 inches width, 5 1/2 inches height
• Box weight: 9 lbs

Detailed Product Description

This CSF radiator (part number 3853) is engineered for Honda CR-V vehicles, featuring a down flow design that promotes efficient coolant circulation. The aluminum core enhances heat dissipation while the plastic tanks reduce weight and resist corrosion. With a core thickness of 5/8 inch and a single-row configuration, this radiator balances cooling performance with compact size. Both the inlet and outlet have a 1 1/4 inch diameter and are located on the left side, matching OEM specifications for straightforward installation.

Compatible Vehicles and Applications

This radiator is compatible with Honda CR-V models requiring a down flow radiator with the specified dimensions and inlet/outlet configuration. It is suitable for replacing worn or damaged radiators to restore proper engine cooling and prevent overheating.

• Resolves engine overheating issues
• Replaces leaking or cracked radiator tanks
• Restores coolant flow efficiency
• Addresses radiator core damage or corrosion
• Improves overall cooling system reliability

Installation Notes and Tips

When installing the CSF radiator 3853 on a Honda CR-V, ensure the inlet and outlet hoses match the 1 1/4 inch diameter and left-side positioning. Verify the radiator core dimensions fit within the engine bay clearance. It is recommended to flush the cooling system before installation to remove debris and contaminants. Use OEM-style clamps and fittings to secure hoses and prevent leaks.

Quality Assurance and Warranty

CSF radiators are manufactured with OEM-style plastic tanks and aluminum cores, meeting industry standards for durability and performance. This radiator does not include a radiator cap and is free of hazardous materials. While specific warranty details are not provided, CSF products typically undergo rigorous quality control to ensure reliable operation in Honda CR-V vehicles.
