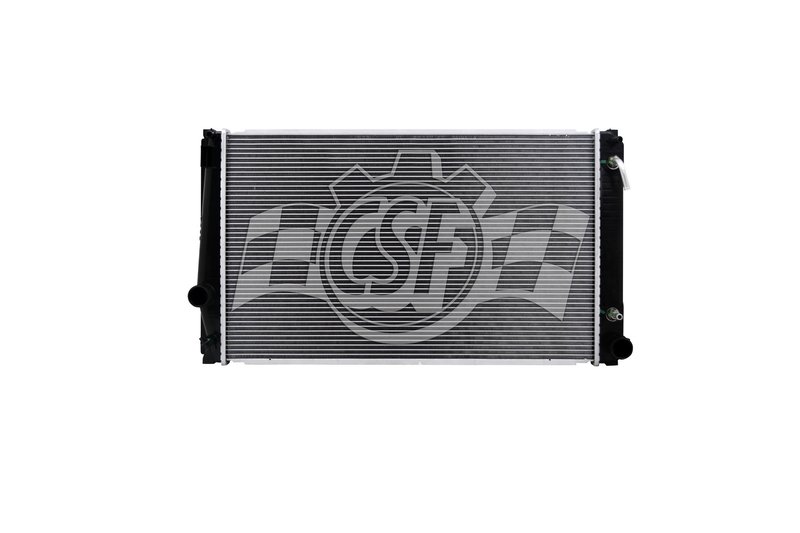

CSF 3861 Radiator
Overview of CSF 3861 Radiator for Toyota RAV4
The CSF 3861 radiator is designed specifically for Toyota RAV4 models, providing reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in cross flow configuration.
- Core thickness: 7/8 inch
- Core width: 15 7/8 inches
- Core length: 26 3/8 inches
- Aluminum core with plastic tanks
- Cross flow design for improved coolant flow
- Inlet and outlet diameter: 1 1/2 inches (left inlet, right outlet)
- Includes high-efficiency plate type oil cooler (10 13/16 inches)
- OEM style plastic tanks and aluminum core construction
Detailed Product Description
The CSF 3861 radiator is part of the 1 Row Plastic Tank Aluminum Core product line, which combines lightweight plastic tanks with a robust aluminum core to balance durability and heat transfer efficiency. The single-row core with a thickness of 7/8 inch and cross flow design ensures effective cooling by allowing coolant to flow horizontally through the radiator. The core dimensions of 15 7/8 inches in width and 26 3/8 inches in length provide ample surface area for heat exchange. The radiator features a 1 1/2 inch diameter inlet on the left and outlet on the right, both with lengths of 16 9/16 inches and widths of 1 3/8 inches, facilitating proper hose connections. Additionally, the integrated high-efficiency plate type oil cooler (10 13/16 inches) supports engine oil temperature regulation, enhancing overall engine performance.
Compatible Vehicles and Applications
- Compatible with Toyota RAV4 models requiring a 1-row radiator
- Designed to replace OEM radiators with plastic tanks and aluminum cores
- Suitable for addressing cooling system issues such as overheating and coolant leaks
- Ideal for vehicles experiencing reduced cooling efficiency or radiator core damage
Installation Notes and Tips
- Ensure compatibility with your Toyota RAV4 model year before installation
- Inspect and replace radiator hoses and clamps as needed during installation
- Bleed the cooling system properly to avoid air pockets after installation
- Verify inlet and outlet hose alignment with the 1 1/2 inch diameter fittings
- Follow manufacturer torque specifications for mounting hardware
Quality Assurance and Warranty
The CSF 3861 radiator is manufactured to meet OEM specifications, featuring a durable aluminum core and plastic tanks designed for long-term use. This radiator does not include a cap and is free from hazardous materials. While specific warranty details are not provided, CSF products typically adhere to industry standards for quality and reliability.
| Brand | CSF |
| Part Number | 3861 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 4 7/8 |
| Box Length (in) | 32 7/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 19 1/4 |
| Cap Included | No |
| Core Length | 26 3/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 15 7/8 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Left |
| Inlet Length (in) | 16 9/16 |
| Inlet Width (in) | 1 3/8 |
| Oil Cooler (in) | 10 13/16 (high-efficiency Plate Type) |
| Outlet Diameter | 1 1/2 Right |
| Outlet Length (in) | 16 9/16 |
| Outlet Width (in) | 1 3/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 1 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2018 | Toyota | RAV4 | 2.5L | L4 | N/A | North America Built; w/ Tow Package; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
